ASICS Trabuco Max 5

TrailTrailNo plate2026Men'sCurrent

At a glance

Heel-to-toe drop
5 mmStated
Stack, heel / forefoot
38.5 / 33.5 mmStated
Weight
301 gStated
Plate
No plate
Toe rocker
35 % of lengthest.photos 32–35 %
Heel bevel
9.2 % of lengthest.photos 9–10 %
Stiffness / firmness
not measured yet
Primary foam
FF Blast Plus

How it compares

  • ASICS Trabuco Max 5's heel-to-toe drop is 5 mm, lower than the catalogue median of 6 mm (14% of the 179 other current shoes are lower).
  • ASICS Trabuco Max 5's heel stack is 38.5 mm, about the catalogue median of 38 mm (53% of the 176 other current shoes are thinner).
  • ASICS Trabuco Max 5's forefoot stack is 33.5 mm, thicker than the catalogue median of 31.5 mm (68% of the 171 other current shoes are thinner).
  • ASICS Trabuco Max 5's weight is 301 g, heavier than the catalogue median of 269 g (84% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
5mm
LowSpec listingbrand figure, reported by Marathon Sportssource
Heel stack
Manufacturer stated
38.5mm
MediumSpec listingbrand figure, reported by Marathon Sportssource
Forefoot stack
Manufacturer stated
33.5mm
MediumSpec listingbrand figure, reported by Marathon Sportssource
Weight
Manufacturer stated
301g
MediumSpec listingbrand figure, reported by Marathon Sportssource
Plate
No plate
Primary foam
FF Blast Plus
List price
$170

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 35 %ASICS Trabuco Max 5: heel 39 mm, forefoot 34 mm (drop 5 mm); toe rocker 35 % of length, radius 38 % of length; heel bevel 9 % of length, 23 mm high at the back, ending behind the heel bone (only the back edge is rounded).39 mm34 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 9 % of length (foam compresses more under load), ending behind the heel bone (only the back edge is rounded)heel bevel 9 %Toe rocker: the front 35 % of the length curves up (the curve leaves the ground 65 % of length from the heel)toe rocker 35 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. ASICS Trabuco Max 5: heel 39 mm, forefoot 34 mm (drop 5 mm); toe rocker 35 % of length, radius 38 % of length; heel bevel 9 % of length, 23 mm high at the back, ending behind the heel bone (only the back edge is rounded). Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
35%

4 photos range 32–35 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker radius
AI estimated
38%

4 photos range 37–39 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker rise angle
AI estimated
35deg

4 photos range 35–37 deg; shown is one of the two that agree most closely.

LowSide photosource
Toe tip over ground
AI estimated
48mm*

4 photos range 45–50 mm; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

LowSide photosource
Rocker angle at toe
AI estimated
65deg

4 photos range 64–69 deg; shown is one of the two that agree most closely.

LowSide photosource
Visible rocker lift onset
AI estimated
75%

4 photos range 72.4–79.2 %; shown is one of the two that agree most closely.

LowSide photosource
Toe spring (relative)
AI estimated
24.5%

4 photos range 24.1–24.6 %; shown is one of the two that agree most closely.

LowSide photosource
Heel bevel length
AI estimated
9.2%

4 photos range 9.1–9.6 %; shown is the average of the two that agree most closely.

LowSide photosource
Heel bevel height
AI estimated
23mm

4 photos range 23–26 mm; shown is the average of the two that agree most closely.

LowSide photosource
Toe box shape
AI estimated
77%

2 photos range 76–78 %; shown is the average of the two that agree most closely.

LowTop photosource

How it compares

Appears in:Longer toe rocker

Compare:ASICS Trabuco Max 5 vs Hoka Tecton X 4ASICS Trabuco Max 5 vs On Cloudultra Pro

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • Asics Trabuco Max 5 Review: Tackle Any Terrain | Marathon SportsreviewMarathon Sportsaccessed 2026-10-04open ↗
  • ASICS Trabuco Max 5 Men's Shoes Cobalt Burst/Black | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗

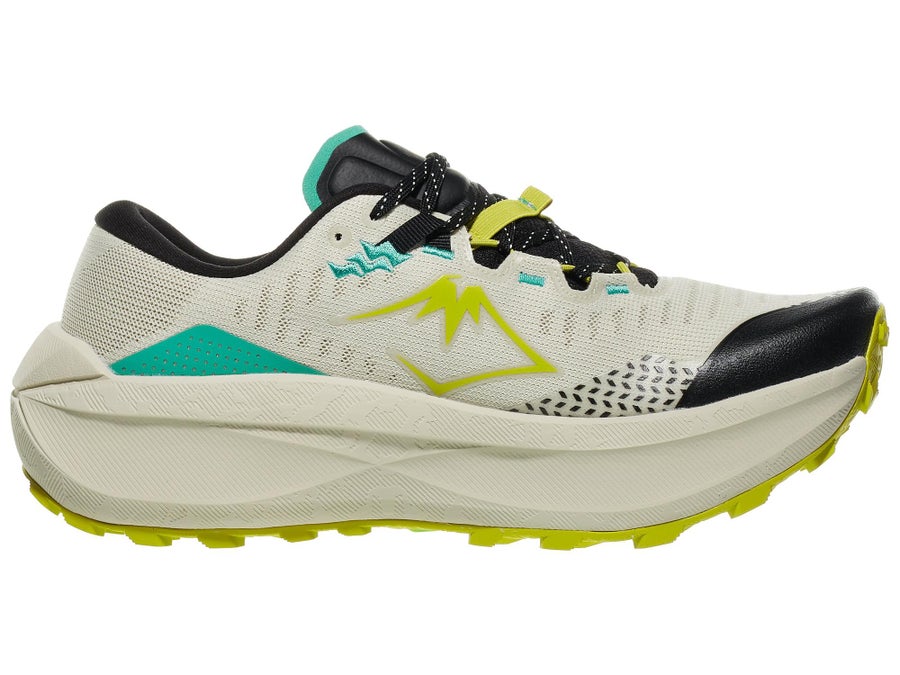

  • asics-trabuco-max-5 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • asics-trabuco-max-5 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗

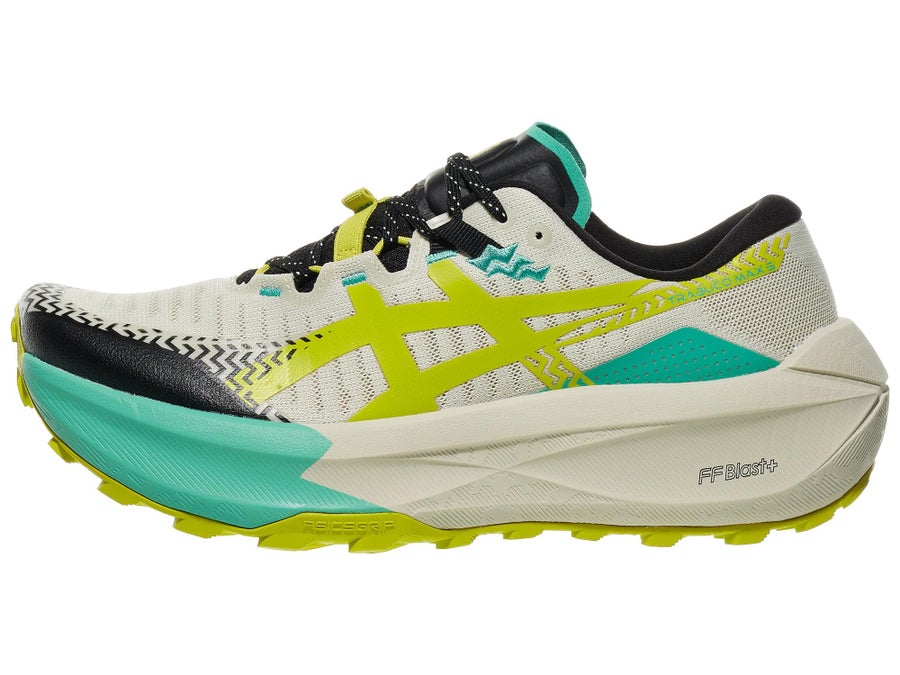

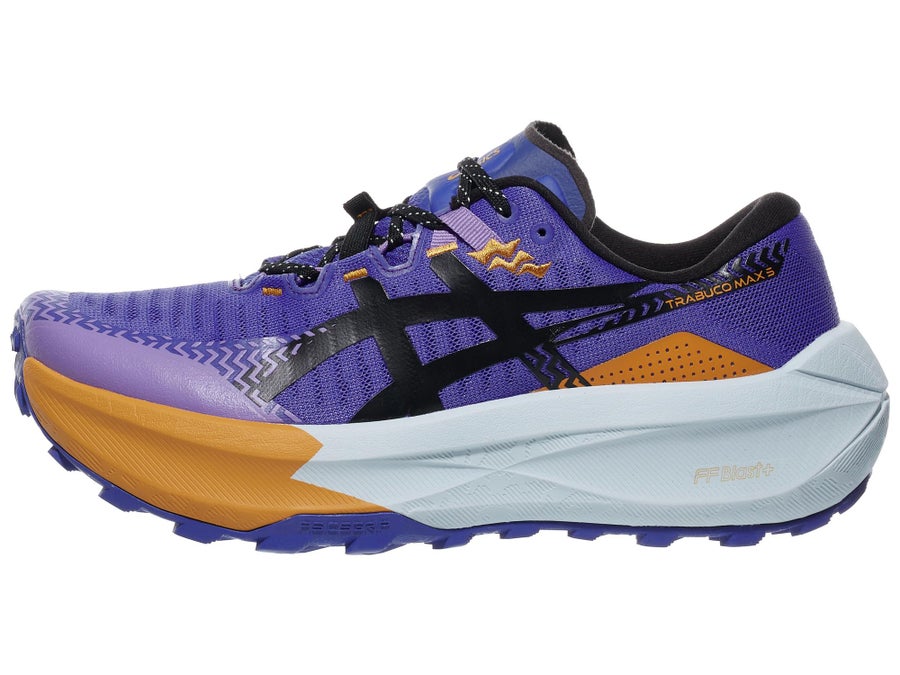

  • asics-trabuco-max-5 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • asics-trabuco-max-5 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗

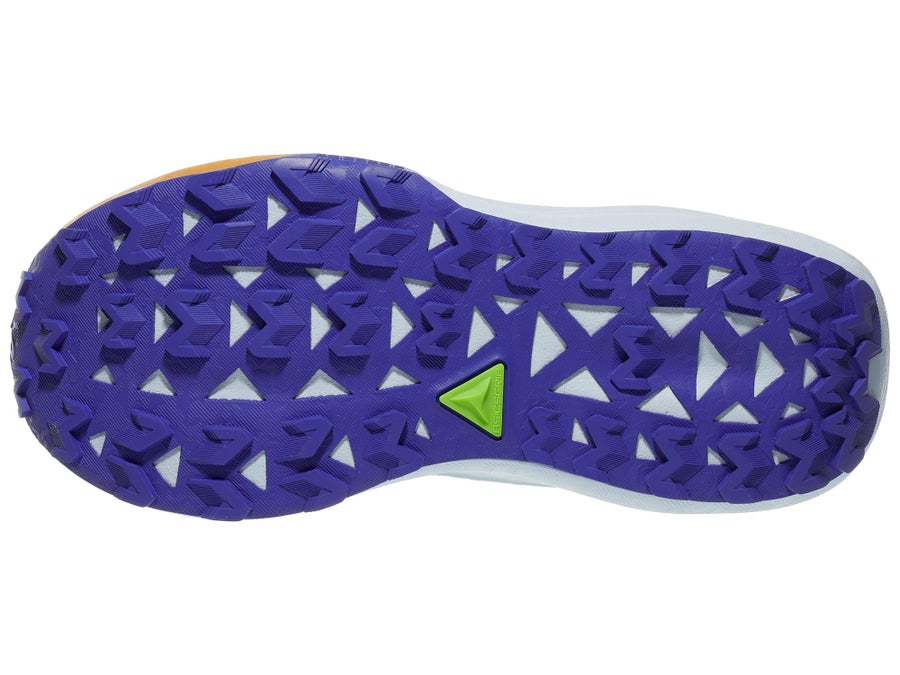

  • asics-trabuco-max-5 sole product photoimageRunning Warehouseaccessed 2026-10-04open ↗

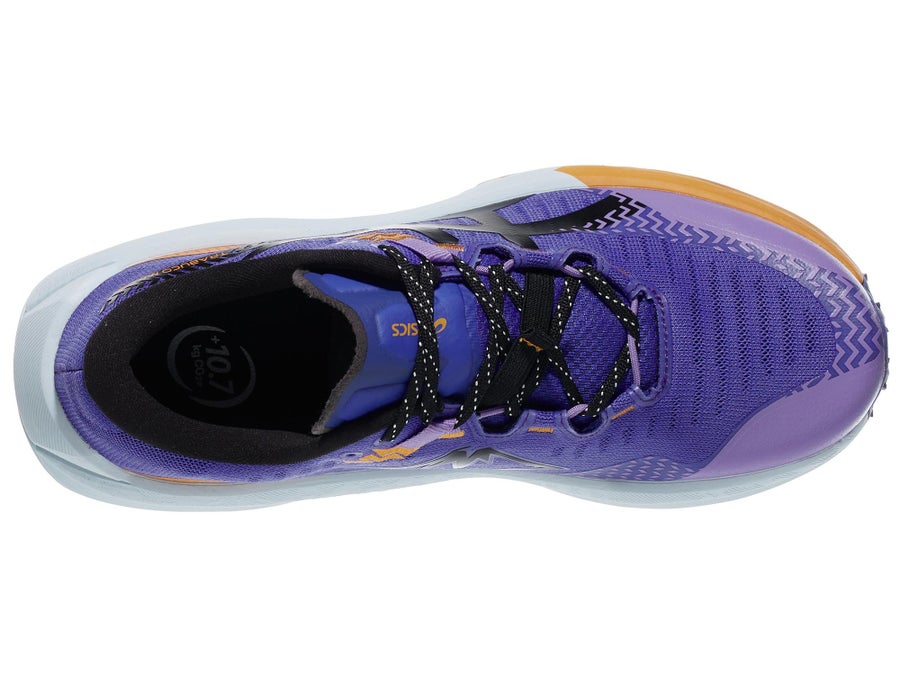

  • asics-trabuco-max-5 top product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (27)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 60 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop5 mmStatedLowSpec listingMarathon Sports2026-10-04
Heel stack38.5 mmStatedMediumSpec listingMarathon Sports2026-10-04
Heel stack37.5 mmStatedLowSpec listingMarathon Sports2026-10-04
Forefoot stack32.5 mmStatedLowSpec listingMarathon Sports2026-10-04
Forefoot stack33.5 mmStatedMediumSpec listingMarathon Sports2026-10-04
Weight301 gStatedMediumSpec listingMarathon Sports2026-10-04
Weight298 gStatedMediumSpec listingRunning Warehouse2026-10-04
Rocker apex65.5 %est.LowSide photoRunning Warehouse2026-10-04
Rocker apex64.8 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius38 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius38 %est.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle35 degest.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle35 degest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground48 mmest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground47 mmest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe65 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe64 degest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset75.5 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset75 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)24.6 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)24.5 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length9.2 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length9.1 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel height23 mmest.LowSide photoRunning Warehouse2026-10-04
Heel bevel height23 mmest.LowSide photoRunning Warehouse2026-10-04
Toe box shape78 %est.LowTop photoRunning Warehouse2026-10-04
Toe box shape76 %est.LowTop photoRunning Warehouse2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=762451024ac78440dcc00d2d82a327f157d33e82ab4dfd8426caa2fc8c46e4c4; 0.3
  • Running Warehouse: sha256=7dd571c3730deceb168f418196e7dec892d8949314f697e83f13d4ff5a5a7b97; 0.3
  • Running Warehouse: sha256=81bd9d0d93748a633399467ee2fe76a76935c7d13449c7284170517bc0822345; 0.3
  • Running Warehouse: sha256=c18d71ea5b5085b9f913c498559ba72d9c721de77e45dd31e79312300dffef66; 0.3
  • Running Warehouse: sha256=084c4d48ebdddf815edfd4249d34eefda4e1a77385775001505df898c061e667; 0.1
  • Running Warehouse: sha256=dcfdec3a34a41f5ff1c912ef2545797894757118d77cd850eb291b1a7742e0ba; 0.1

Shoes with similar geometry

Compare these →

Closest current models from other lines by stack, drop, rocker, toe height, stiffness, firmness, weight and width, whichever both shoes have.

Side profile illustration of the Craft Xplor 2
Craft
Xplor 2
Road/trail hybrid · No plate
Drop
6 mm
Heel
38.5 mm
Toe rocker
35%

Very close on every shared measure

Side profile illustration of the Saucony Xodus Ultra 4
Saucony
Xodus Ultra 4
Trail · No plate
Drop
6 mm
Heel
38 mm
Toe rocker
37%

Very close on every shared measure

Side profile illustration of the Brooks Cascadia 20
Brooks
Cascadia 20
Trail · Rock plate
Drop
6 mm
Heel
39 mm
Toe rocker
37%

Very close on every shared measure

Side profile illustration of the Brooks Cascadia Elite
Brooks
Cascadia Elite
Trail · Carbon composite
Drop
6 mm
Heel
40 mm
Toe rocker
37%

vs this shoe: 35 g lighter
