ShoeGeometry

Nike Kiger 10

TrailTrailRock plate2025Men'sCurrent

At a glance

Heel-to-toe drop
5 mmStated
Stack, heel / forefoot
29 / 24 mmStated
Weight
276 gStatedMen's US 10
Plate
Rock plate
Toe rocker
28 % of lengthest.photos 26–28 %
Heel bevel
9.6 % of lengthest.rough estimate; photos 8–11 %
Stiffness / firmness
19 / — of 100Derived
Primary foam
Cushlon 3.0

How it compares

  • Nike Kiger 10's heel-to-toe drop is 5 mm, lower than the catalogue median of 6 mm (14% of the 179 other current shoes are lower).
  • Nike Kiger 10's heel stack is 29 mm, thinner than the catalogue median of 38 mm (6% of the 176 other current shoes are thinner).
  • Nike Kiger 10's forefoot stack is 24 mm, thinner than the catalogue median of 31.5 mm (6% of the 171 other current shoes are thinner).
  • Nike Kiger 10's weight is 276 g, about the catalogue median of 269 g (60% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
5mm
HighSpec listingsource
Heel stack
Manufacturer stated
29mm
MediumSpec listingbrand figure, reported by Running Warehousesource
Forefoot stack
Manufacturer stated
24mm
MediumSpec listingbrand figure, reported by Running Warehousesource
Weight
Manufacturer stated
276g
HighSpec listingMen's US 10source
Plate
Rock plate
Primary foam
Cushlon 3.0
List price
$170

Plate, foam and price from Nike Kiger 10 Trail Running Shoes. Nike.com.

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 35 %Nike Kiger 10: heel 29 mm, forefoot 24 mm (drop 5 mm); toe rocker 28 % of length, radius 42 % of length; heel bevel 10 % of length, 19 mm high at the back, ending behind the heel bone (only the back edge is rounded).29 mm24 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 10 % of length (foam compresses more under load), ending behind the heel bone (only the back edge is rounded)heel bevel 10 %Toe rocker: the front 28 % of the length curves up (the curve leaves the ground 72 % of length from the heel)toe rocker 28 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. Nike Kiger 10: heel 29 mm, forefoot 24 mm (drop 5 mm); toe rocker 28 % of length, radius 42 % of length; heel bevel 10 % of length, 19 mm high at the back, ending behind the heel bone (only the back edge is rounded). Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
28%

4 photos range 26–28 %; shown is their median.

LowSide photosource
Rocker radius
AI estimated
42%

4 photos range 39–42 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker rise angle
AI estimated
26deg

4 photos range 23–28 deg; shown is their median.

LowSide photosource
Rocker angle at toe
AI estimated
62deg

4 photos range 51–63 deg; shown is one of the two that agree most closely.

LowSide photosource
Toe tip over ground
AI estimated
23mm*

4 photos range 20–24 mm; shown is their median (* the photos disagree by more than usual).

LowSide photosource
Visible rocker lift onset
AI estimated
82.3%

4 photos range 81.1–85.6 %; shown is one of the two that agree most closely.

LowSide photosource
Toe spring (relative)
AI estimated
13.7%

4 photos range 11.2–14.8 %; shown is their median.

LowSide photosource
Heel bevel length
AI estimated
9.6%

4 photos range 8.3–10.8 %; shown is the average of the two that agree most closely.

LowSide photosource
Heel bevel height
AI estimated
19mm*

4 photos range 15–23 mm; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

LowSide photosource
Midsole width (forefoot)
Externally measured
112.6mm
MediumLab testsource
Midsole width (heel)
Externally measured
83.5mm
MediumLab testsource
Toe box shape
AI estimated
72%

2 photos range 72–72 %; shown is the average of the two that agree most closely.

LowTop photosource
Interior forefoot width
Externally measured
97.4mm
MediumLab testsource
Toebox width
Externally measured
76.9mm
MediumLab testsource

Stiffness

Longitudinal stiffness
Derived
19/ 100

Lab reading: 11.6 N, force to bend the shoe 30° (lab bending test); the score is our 0–100 rescaling of it.

MediumLab flex testsource
Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • Nike Kiger 10 Trail Running Shoes. Nike.commanufacturerNike.comaccessed 2026-10-04open ↗
  • Nike Kiger 10 Men's Shoes Black/Grey/White/Gry | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗

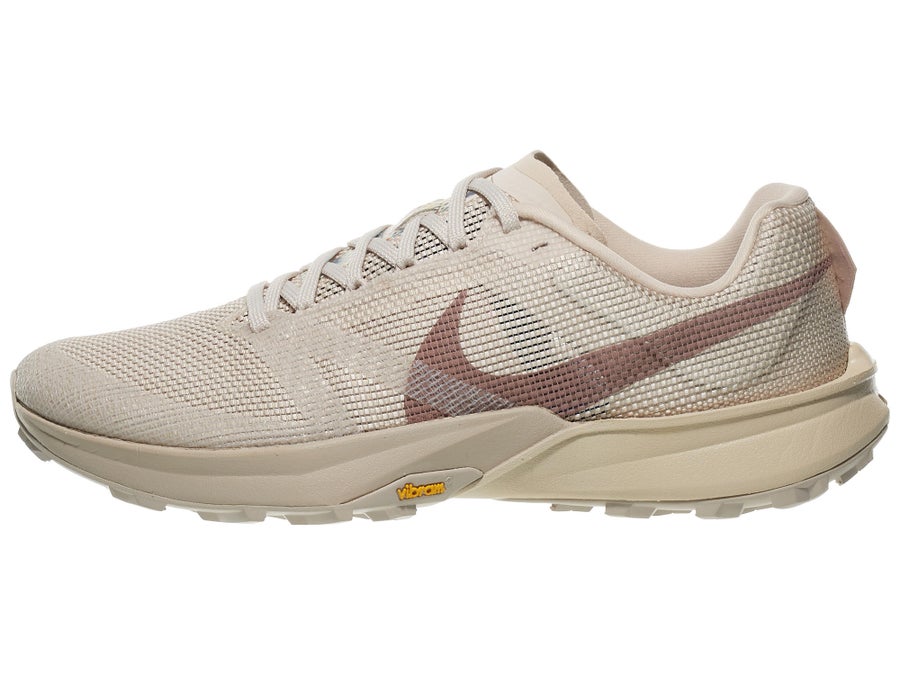

  • nike-kiger-10 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗

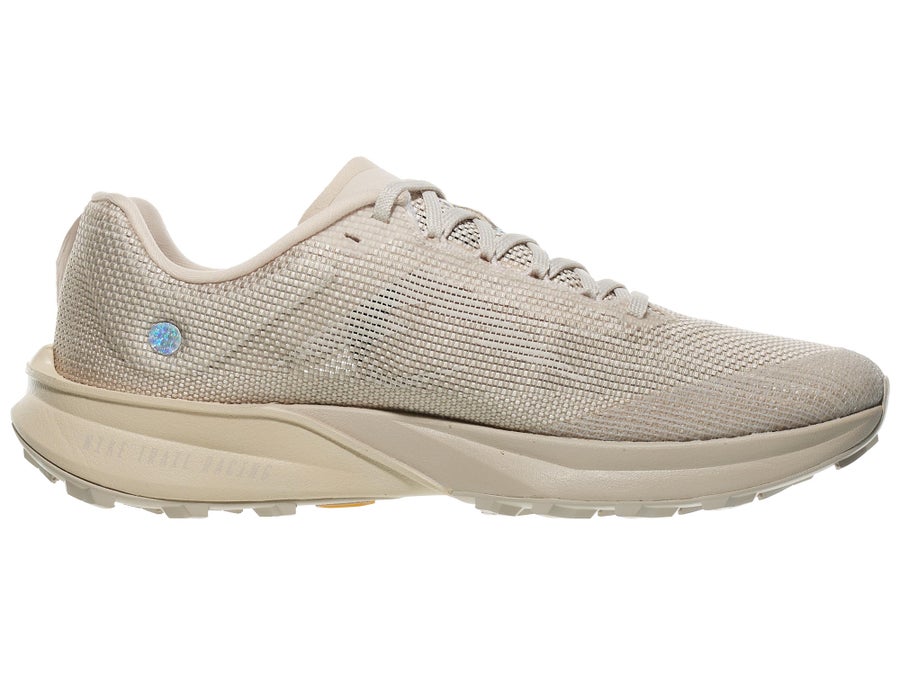

  • nike-kiger-10 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗

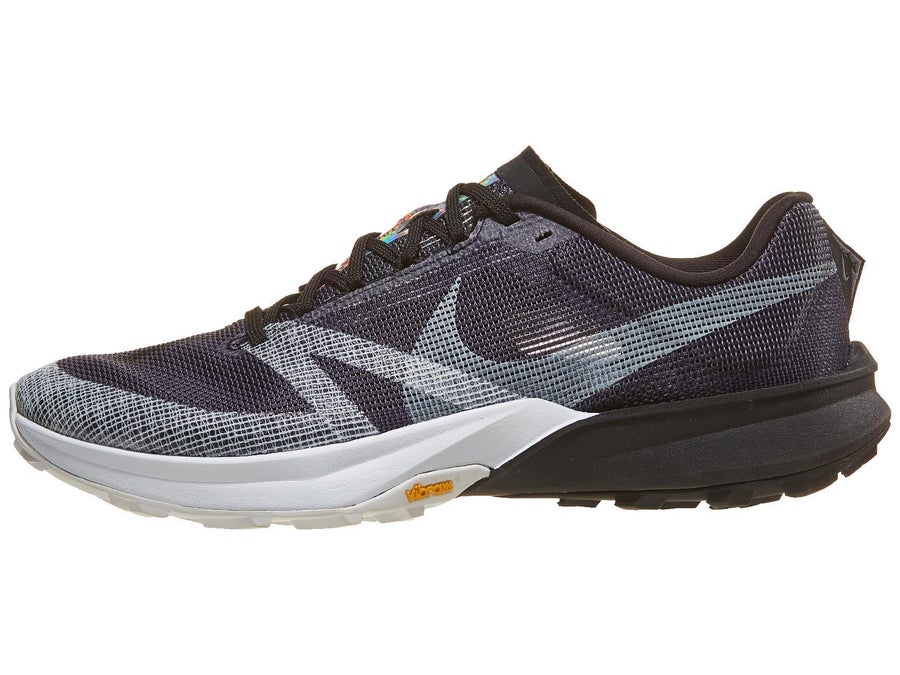

  • nike-kiger-10 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗

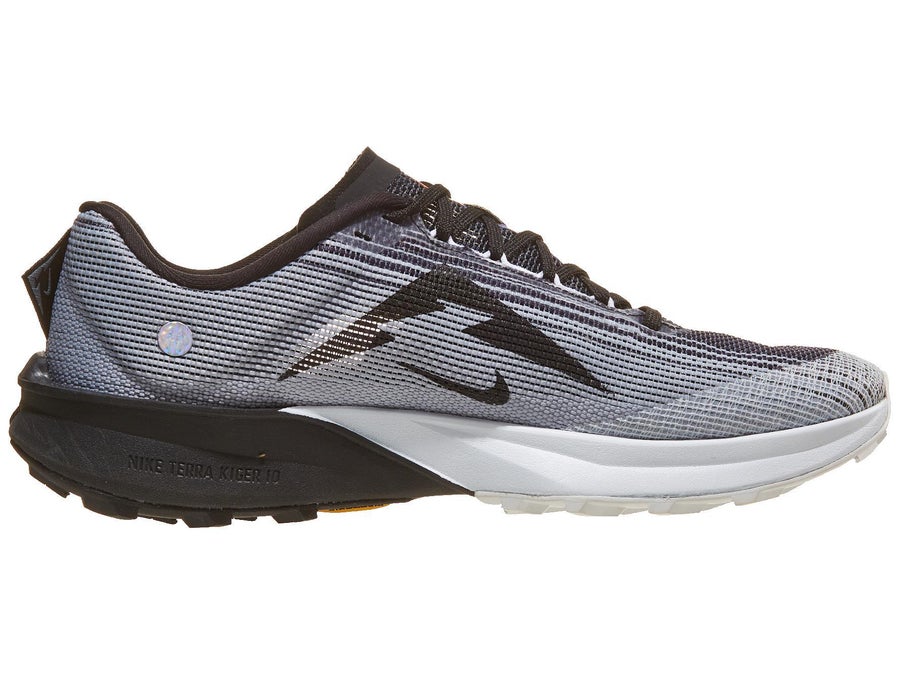

  • nike-kiger-10 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • Cut in half: Nike Kiger 10 Review (2025) | RunRepeatlabRunRepeataccessed 2026-10-04open ↗

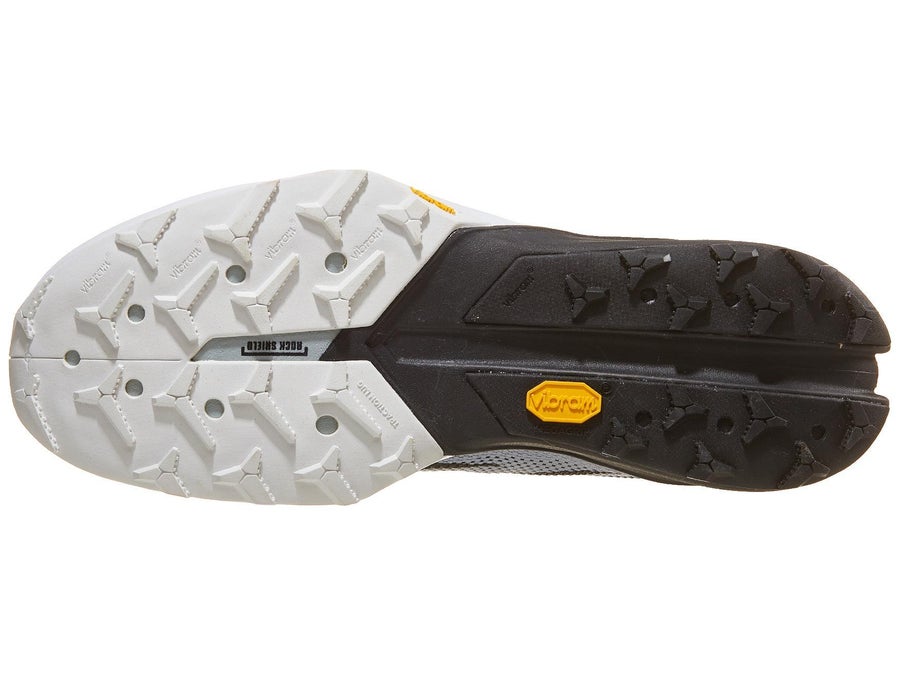

  • nike-kiger-10 sole product photoimageRunning Warehouseaccessed 2026-10-04open ↗

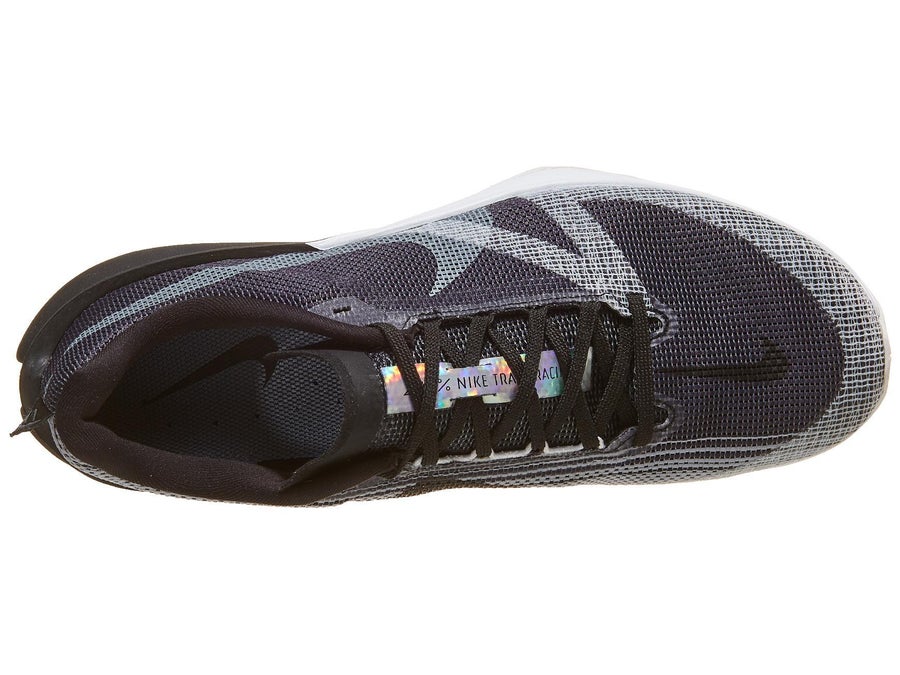

  • nike-kiger-10 top product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (30)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 59 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop5 mmStatedHighSpec listingNike.com2026-10-04
Heel-to-toe drop5 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Heel stack29 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack24 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Weight276 g (Men's US 10)StatedHighSpec listingNike.com2026-10-04
Rocker apex72.1 %est.LowSide photoRunning Warehouse2026-10-04
Rocker apex71.9 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius42 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius42 %est.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle28 degest.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle27 degest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground23 mmest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground23 mmest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe63 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe62 degest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset82.3 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset81.1 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)14.8 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)14.5 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length9.8 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length9.3 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel height19 mmest.LowSide photoRunning Warehouse2026-10-04
Heel bevel height19 mmest.LowSide photoRunning Warehouse2026-10-04
Midsole width (forefoot)112.6 mmMeasuredMediumLab testRunRepeat2026-10-04
Midsole width (heel)83.5 mmMeasuredMediumLab testRunRepeat2026-10-04
Toe box shape72 %est.LowTop photoRunning Warehouse2026-10-04
Toe box shape72 %est.LowTop photoRunning Warehouse2026-10-04
Interior forefoot width97.4 mmMeasuredMediumLab testRunRepeat2026-10-04
Toebox width76.9 mmMeasuredMediumLab testRunRepeat2026-10-04
Longitudinal stiffness19 DerivedMediumLab flex testRunRepeat2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=4c7be2a32a74f3e78f527bf853d75eb253ce01e19ce6d184114473c9b09fd35f; 0.3
  • Running Warehouse: sha256=8f63b4d00fa96ceb553481046137da422c5d3579c07b896b10eb0d6f8a23d079; 0.3
  • Running Warehouse: sha256=5066ed8b637fd30c0f068faddfa5b2867e421a82fb6c3ecc2cbfef5ba3f54118; 0.3
  • Running Warehouse: sha256=8960dc1f357e0ea659b24e9f58ad15f0c34a2b9a1f3c447c903a573f5a9849ad; 0.3
  • Running Warehouse: sha256=2e84291d30d3499a5be7c525e3e8cfd5de56abc786b66cd22db2ca7b8bb2a556; 0.1
  • Running Warehouse: sha256=bea0a8d2410411f82607398ef4350dbbd7b112d14b28699f5217ccc6b5531a24; 0.1
