ShoeGeometry

Adidas Terrex Agravic 4

TrailTrailRock plate2026Men'sCurrent

Specifications

Heel-to-toe drop
Derived
8mm
Mediumderived_from_stack_v1source
Heel stack
Externally measured
34mm
Mediumregex_specs_v2Men's US 9source
Forefoot stack
Externally measured
26mm
Mediumregex_specs_v2Men's US 9source
Weight
Manufacturer stated
269g
Mediumregex_specs_v2source
Plate
Rock plate
Primary foam
Lightstrike
List price
$145

Plate, foam and price from This Cheap Adidas Terrex Shoe Is Your Gateway To Trail Running | Believe in the Run.

Geometry

Catalogue average: heel 39 mm, forefoot 32 mm, rocker apex 65 %Adidas Terrex Agravic 4: heel 34 mm, forefoot 26 mm (drop 8 mm); rocker apex 62 % of length, radius 52 % of length.34 mm26 mmRocker apex at 62 % of length from the heelrocker apex 62 %toeheel
Forefoot: rocker apex later earlierRear: heel stack lower higher not measured
Dashed: average of the catalogue
Drawn from the measured values, to scale for a 290 mm shoe; the grey upper is a generic outline, not this shoe’s. Adidas Terrex Agravic 4: heel 34 mm, forefoot 26 mm (drop 8 mm); rocker apex 62 % of length, radius 52 % of length.

Percent values are relative to shoe length so they compare across images and sizes; millimetre values are lab measurements from the cited source. See how rocker geometry is defined.

Rocker apex
AI estimated
61.8%
Lowvision_rocker · 0.3-bc1source
Rocker radius
AI estimated
52%
Lowvision_rocker · 0.3-bc1source
Rocker rise angle
AI estimated
24deg
Lowvision_rocker · 0.3-bc1source
Toe tip over ground
AI estimated
39mm

Average of two photos 0.5 mm apart.

Lowvision_rocker · 0.3-bc1source
Rocker angle at toe
AI estimated
52deg
Lowvision_rocker · 0.3-bc1source
Visible rocker lift onset
AI estimated
75.6%
Lowvision_rocker · 0.3-bc1source
Toe spring (relative)
AI estimated
17.3%
Lowvision_rocker · 0.3-bc1source
Midsole width (forefoot)
Externally measured
119.4mm
Mediumlab_table_widths · 1source
Midsole width (heel)
Externally measured
87.7mm
Mediumlab_table_widths · 1source
Interior forefoot width
Externally measured
97.9mm
Mediumlab_table_widths · 1source
Toebox width
Externally measured
73mm
Mediumlab_table_widths · 1source

Stiffness

Longitudinal stiffness
Derived
40/ 100
Mediumlab_bending_force_score · 1source
Midsole firmness
Derived
49/ 100
Mediumlab_midsole_firmness_score · 1source

How it compares

  • Adidas Terrex Agravic 4's heel-to-toe drop is 8 mm, higher than the catalogue median of 6 mm (55% of the 91 other current shoes are lower).
  • Adidas Terrex Agravic 4's heel stack is 34 mm, thinner than the catalogue median of 39 mm (12% of the 91 other current shoes are thinner).
  • Adidas Terrex Agravic 4's forefoot stack is 26 mm, thinner than the catalogue median of 32 mm (7% of the 91 other current shoes are thinner).
  • Adidas Terrex Agravic 4's weight is 269 g, about the catalogue median of 268 g (50% of the 82 other current shoes are lighter).

Appears in:Earlier rocker

Compare:Adidas Terrex Agravic 4 vs Salomon Genesis 2Adidas Terrex Agravic 4 vs La Sportiva Prodigio Pro

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • adidas Terrex Agravic 4 Men's Shoes Black/Grey/White | Running Warehouseretailerrunningwarehouse.comaccessed 2026-10-03open ↗
  • This Cheap Adidas Terrex Shoe Is Your Gateway To Trail Running | Believe in the Runreviewbelieveintherun.comaccessed 2026-10-03open ↗
  • adidas-terrex-agravic-4 medial product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=ca423910bef5a88eae37d6e6083baf86eecc0c5a9fb0d501ad0c8a7e50e9dbd2; 0.3

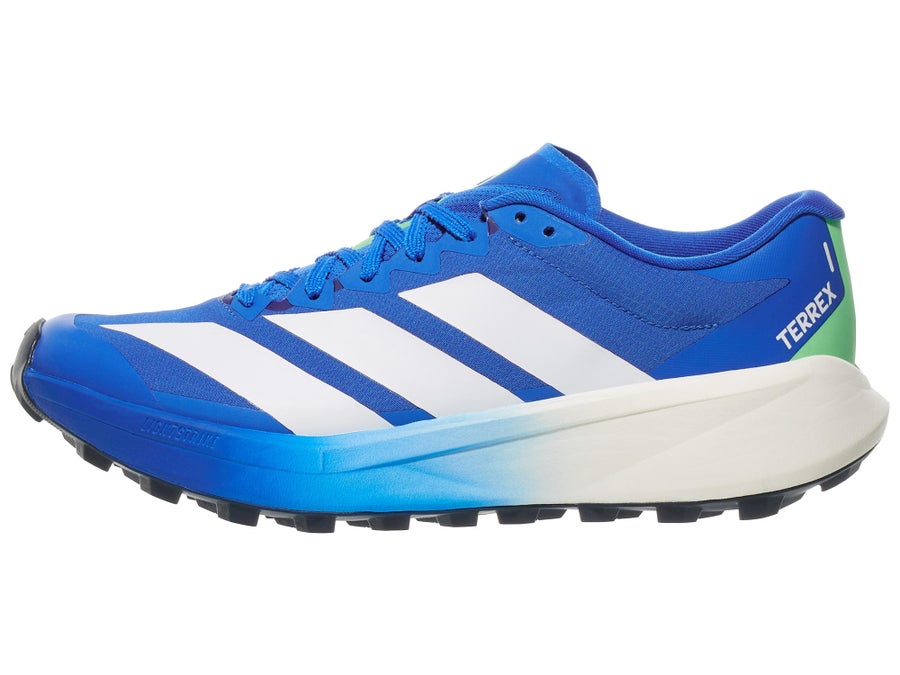

  • adidas-terrex-agravic-4 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=640e424bb878406149e567d7fa932c1b2fb9adbdf04f10c076d1a836ee4a5909; 0.3
  • adidas-terrex-agravic-4 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=fad0575b3184cb20b4fbdffd552aaad811a1a710e8d2ba0325bdbebb74acef91; 0.3
  • Cut in half: adidas Terrex Agravic 4 Review (2026) | RunRepeatlabRunRepeat - Athletic shoe reviewsaccessed 2026-10-03open ↗

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 52 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop8 mmDerivedMediumderived_from_stack_v1runningwarehouse.com2026-10-03
Heel stack34 mm (Men's US 9)MeasuredMediumregex_specs_v2runningwarehouse.com2026-10-03
Forefoot stack26 mm (Men's US 9)MeasuredMediumregex_specs_v2runningwarehouse.com2026-10-03
Weight275 g (US M9)StatedMediumregex_specs_v2believeintherun.com2026-10-03
Weight269 gStatedMediumregex_specs_v2runningwarehouse.com2026-10-03
Rocker apex61.8 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker apex61.5 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker radius52 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker radius52 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker rise angle24 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker rise angle25 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe tip over ground39 mmest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker angle at toe52 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker angle at toe52 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe tip over ground39 mmest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Visible rocker lift onset75.6 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Visible rocker lift onset75.6 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe spring (relative)17.4 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe spring (relative)17.3 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Midsole width (forefoot)119.4 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Midsole width (heel)87.7 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Interior forefoot width97.9 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Toebox width73 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Longitudinal stiffness40 DerivedMediumlab_bending_force_score 1RunRepeat - Athletic shoe reviews2026-10-03
Midsole firmness49 DerivedMediumlab_midsole_firmness_score 1RunRepeat - Athletic shoe reviews2026-10-03

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported.

Shoes with similar geometry

Compare these →

Closest current models from other lines by stack, drop, rocker, toe height, stiffness, firmness, weight and width, whichever both shoes have.

Side profile illustration of the Salomon Genesis 2
Salomon
Genesis 2
Trail · No plate
Drop
8 mm
Heel
34 mm
Apex
62%

vs this shoe: 5 mm higher toe

Side profile illustration of the La Sportiva Prodigio Pro
La Sportiva
Prodigio Pro
Trail · Rock plate
Drop
6 mm
Heel
34 mm
Apex
61%

vs this shoe: 5 mm higher toe · 2 mm less drop

Side profile illustration of the Merrell Agility Peak 6
Merrell
Agility Peak 6
Trail · Rock plate
Drop
6 mm
Heel
32 mm
Apex
—

vs this shoe: 2 mm less drop

Side profile illustration of the Saucony Xodus Ultra 4
Saucony
Xodus Ultra 4
Trail · No plate
Drop
6 mm
Heel
38 mm
Apex
63%

vs this shoe: 6 mm higher toe · 4 mm higher heel · 2 mm less drop
