Merrell MTL SpeedArc Peak

RacingTrailCarbon plate2026Men'sCurrent

At a glance

Heel-to-toe drop: 6 mmStated
Stack, heel / forefoot: not measured yet
Weight: not measured yet
Plate: Carbon plate
Toe rocker: 34 % of lengthest.photos 34–36 %
Heel bevel: 8.8 % of lengthest.photos 8–9 %
Stiffness / firmness: 46 / 55 of 100Derived
Primary foam: Dual-density FloatPro with PEBA top layer

How it compares

Merrell MTL SpeedArc Peak's heel-to-toe drop is 6 mm, about the catalogue median of 6 mm (25% of the 179 other current shoes are lower).
4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop: 6mm
MediumSpec listingsource
Heel stack: No approved value yet.
Forefoot stack: No approved value yet.
Weight: No approved value yet.

Plate: Carbon plate
Primary foam: Dual-density FloatPro with PEBA top layer
List price: $290

Plate, foam and price from MTL SpeedArc Peak - Sneakers | Merrell.

Geometry

Front: toe rocker shorter longerRear: heel stack lower higher not measured

Dashed: average of the catalogue

Stack not published: typical heel and forefoot drawn

Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. Merrell MTL SpeedArc Peak: stack not measured; toe rocker 34 % of length, radius 48 % of length; heel bevel 9 % of length, 17 mm high at the back, ending behind the heel bone (only the back edge is rounded). Dashed midsole: typical values stand in for what this shoe has no measurement of. Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker: 34%
2 photos range 34–36 %; shown is one of the two that agree most closely.
MediumSide photosource
Rocker radius: 48%
2 photos range 46–48 %; shown is one of the two that agree most closely.
MediumSide photosource
Rocker rise angle: 25deg
2 photos range 25–27 deg; shown is one of the two that agree most closely.
MediumSide photosource
Toe tip over ground: 34mm*
2 photos range 31–37 mm; shown is the average of the two that agree most closely (* the photos disagree by more than usual).
MediumSide photosource
Rocker angle at toe: 61deg
2 photos range 59–61 deg; shown is one of the two that agree most closely.
MediumSide photosource
Heel bevel length: 8.8%
2 photos range 8.4–9.1 %; shown is the average of the two that agree most closely.
MediumSide photosource
Heel bevel height: 17mm
2 photos range 17–18 mm; shown is the average of the two that agree most closely.
MediumSide photosource
Midsole width (forefoot): 112.6mm
MediumLab testsource
Midsole width (heel): 92.2mm
MediumLab testsource
Interior forefoot width: 94mm
MediumLab testsource
Toebox width: 72.6mm
MediumLab testsource

Stiffness

Longitudinal stiffness: 46/ 100
Lab reading: 16.7 N, force to bend the shoe 30° (lab bending test); the score is our 0–100 rescaling of it.
MediumLab flex testsource
Midsole firmness: 55/ 100
Lab reading: 34.8 Asker C, midsole durometer reading (higher = firmer); the score is our 0–100 rescaling of it.
MediumLab durometersource

How it compares

Appears in:Carbon plate

Wrong value? Missing data? Tell me

Sources

MTL SpeedArc Peak - Sneakers | MerrellmanufacturerMerrellaccessed 2026-10-04open ↗

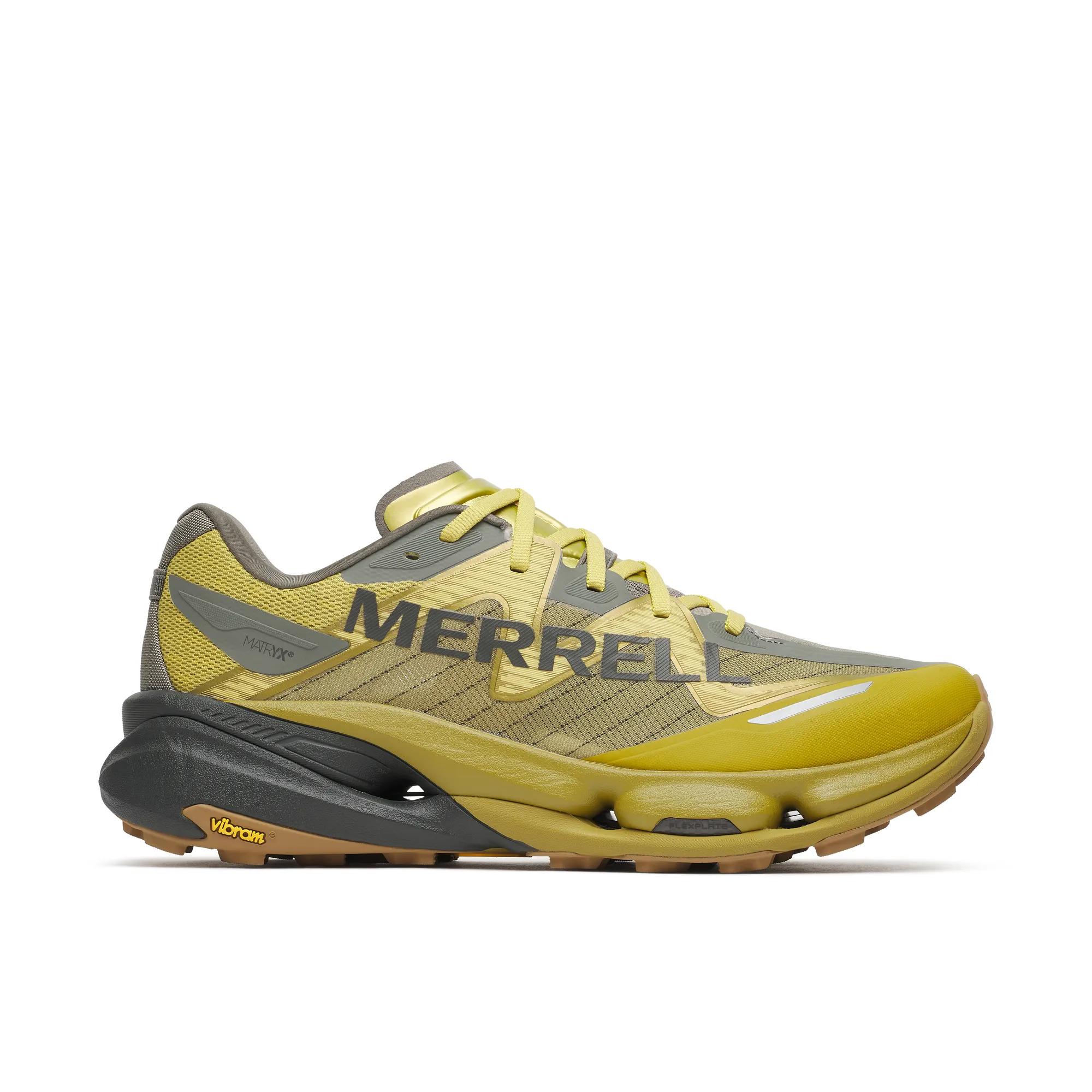

merrell-mtl-speedarc-peak lateral product photoimageMerrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)accessed 2026-10-04open ↗

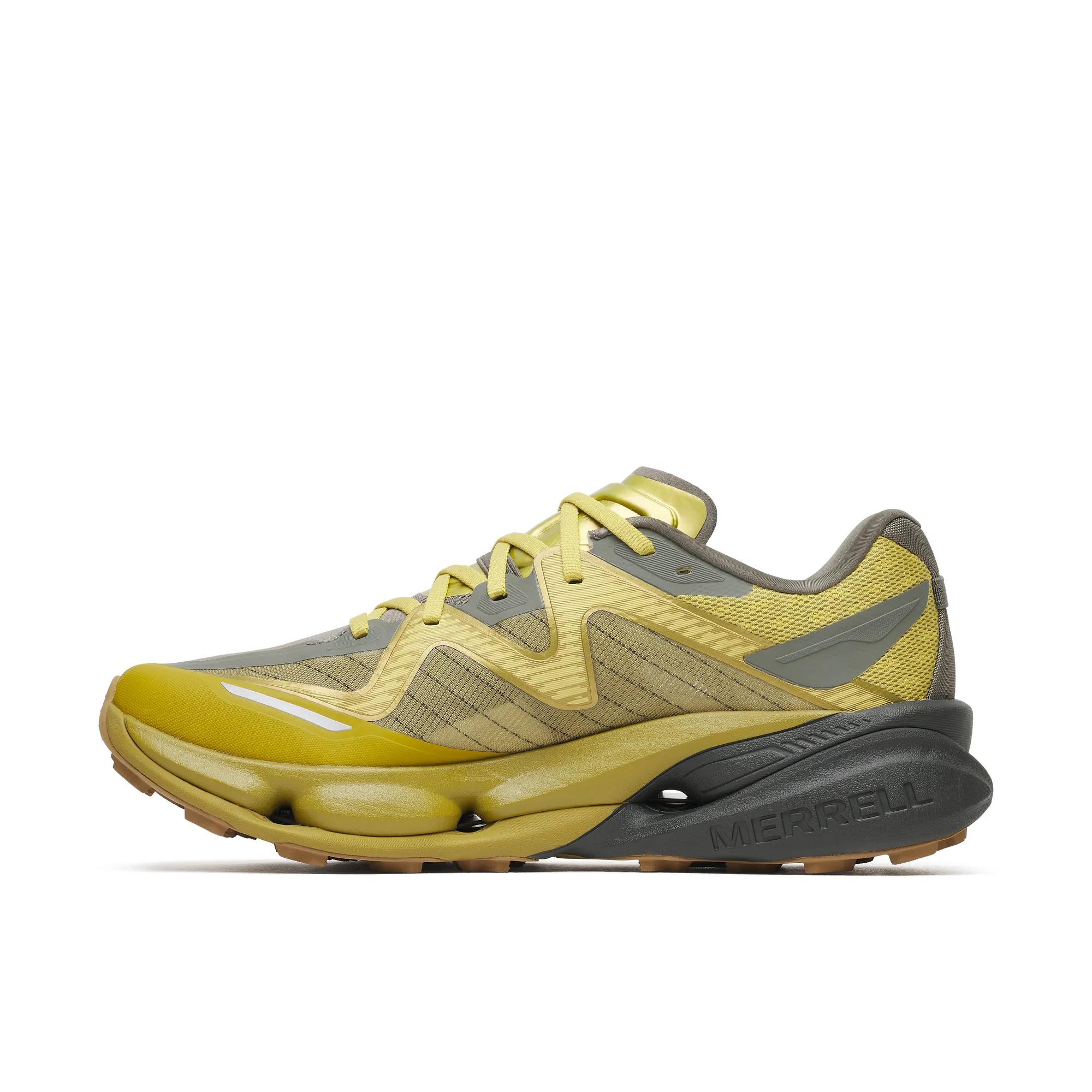

merrell-mtl-speedarc-peak medial product photoimageMerrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)accessed 2026-10-04open ↗
Cut in half: Merrell MTL SpeedArc Peak Review (2026) | RunRepeatlabRunRepeataccessed 2026-10-04open ↗

Technical detail: every recorded value, method and version (21)

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 23 further observations awaiting review.

Metric	Value	Class	Confidence	Method	Source	Recorded
Heel-to-toe drop	6 mm	Stated	Medium	Spec listing	Merrell	2026-10-04
Rocker apex	64.3 %	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Rocker apex	66.4 %	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Rocker radius	46 %	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Rocker radius	48 %	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Rocker rise angle	27 deg	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Rocker rise angle	25 deg	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Rocker angle at toe	59 deg	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Rocker angle at toe	61 deg	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Toe tip over ground	37 mm	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Toe tip over ground	31 mm	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Heel bevel length	9.1 %	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Heel bevel length	8.4 %	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Heel bevel height	17 mm	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Heel bevel height	18 mm	est.	Medium	Side photo	Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white)	2026-10-04
Midsole width (forefoot)	112.6 mm	Measured	Medium	Lab test	RunRepeat	2026-10-04
Midsole width (heel)	92.2 mm	Measured	Medium	Lab test	RunRepeat	2026-10-04
Interior forefoot width	94 mm	Measured	Medium	Lab test	RunRepeat	2026-10-04
Toebox width	72.6 mm	Measured	Medium	Lab test	RunRepeat	2026-10-04
Longitudinal stiffness	46	Derived	Medium	Lab flex test	RunRepeat	2026-10-04
Midsole firmness	55	Derived	Medium	Lab durometer	RunRepeat	2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white): sha256=2ca4f4d9cec734ae89692ea57b567f1a30c2663cd7ce2d30261bbb3abd36e862; 0.3
Merrell (brand store image CDN, colourway J00005611; 2000x2000 JPEG on white): sha256=aa846058803c8a1a011d6e658be75a6a4f9cb6ae0f9fb6bfde3db157189e4b7f; 0.3
