ShoeGeometry

New Balance FuelCell Rebel Trail

TrailTrailNo plate2026Men'sCurrent

At a glance

Heel-to-toe drop
6 mmStated
Stack, heel / forefoot
33 / 27 mmStated
Weight
289 gStated
Plate
No plate
Toe rocker
35 % of lengthest.photos 32–36 %
Heel bevel
6.4 % of lengthest.rough estimate; photos 5–8 %
Stiffness / firmness
not measured yet
Primary foam
FuelCell (injection-moulded)

How it compares

  • New Balance FuelCell Rebel Trail's heel-to-toe drop is 6 mm, about the catalogue median of 6 mm (25% of the 179 other current shoes are lower).
  • New Balance FuelCell Rebel Trail's heel stack is 33 mm, thinner than the catalogue median of 38 mm (14% of the 176 other current shoes are thinner).
  • New Balance FuelCell Rebel Trail's forefoot stack is 27 mm, thinner than the catalogue median of 31.5 mm (15% of the 171 other current shoes are thinner).
  • New Balance FuelCell Rebel Trail's weight is 289 g, heavier than the catalogue median of 269 g (71% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
6mm
MediumSpec listingbrand figure, reported by TrainingPlan.devsource
Heel stack
Manufacturer stated
33mm
MediumSpec listingbrand figure, reported by TrainingPlan.devsource
Forefoot stack
Manufacturer stated
27mm
MediumSpec listingbrand figure, reported by TrainingPlan.devsource
Weight
Manufacturer stated
289g
MediumSpec listingbrand figure, reported by Running Warehousesource
Plate
No plate
Primary foam
FuelCell (injection-moulded)
List price
$150

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 34 %New Balance FuelCell Rebel Trail: heel 33 mm, forefoot 27 mm (drop 6 mm); toe rocker 35 % of length, radius 47 % of length; heel bevel 6 % of length, 6 mm high at the back, ending behind the heel bone (only the back edge is rounded).33 mm27 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 6 % of length (foam compresses more under load), ending behind the heel bone (only the back edge is rounded)heel bevel 6 %Toe rocker: the front 35 % of the length curves up (the curve leaves the ground 65 % of length from the heel)toe rocker 35 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. New Balance FuelCell Rebel Trail: heel 33 mm, forefoot 27 mm (drop 6 mm); toe rocker 35 % of length, radius 47 % of length; heel bevel 6 % of length, 6 mm high at the back, ending behind the heel bone (only the back edge is rounded). Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
35%

4 photos range 32–36 %; shown is their median.

LowSide photosource
Rocker radius
AI estimated
47%

4 photos range 40–47 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker rise angle
AI estimated
29deg

4 photos range 28–31 deg; shown is their median.

LowSide photosource
Toe tip over ground
AI estimated
38mm

4 photos range 36–39 mm; shown is their median.

LowSide photosource
Rocker angle at toe
AI estimated
67deg

4 photos range 64–67 deg; shown is one of the two that agree most closely.

LowSide photosource
Visible rocker lift onset
AI estimated
76.1%

4 photos range 75.3–79.5 %; shown is one of the two that agree most closely.

LowSide photosource
Toe spring (relative)
AI estimated
19.5%

4 photos range 19.1–19.9 %; shown is their median.

LowSide photosource
Heel bevel length
AI estimated
6.4%

4 photos range 4.9–7.7 %; shown is the average of the two that agree most closely.

LowSide photosource
Heel bevel height
AI estimated
6mm

4 photos range 4–7 mm; shown is their median.

LowSide photosource
Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • New Balance FuelCell Rebel Trail Review: Road-to-Trail Versatility | Training Plan BlogreviewTrainingPlan.devaccessed 2026-10-04open ↗
  • New Balance FuelCell Rebel Trail Men's Shoes Glow/Brown | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗

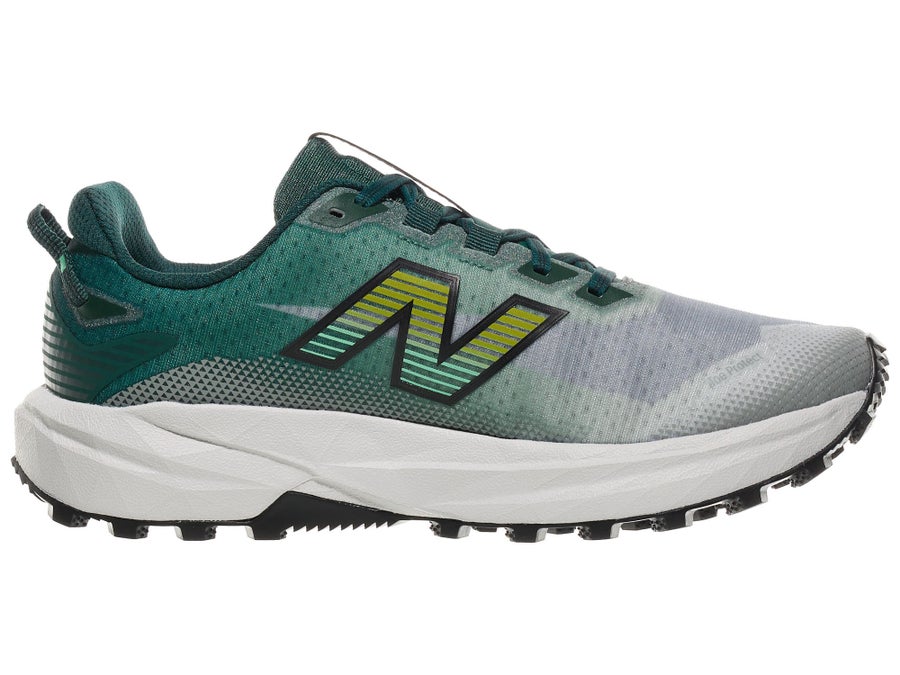

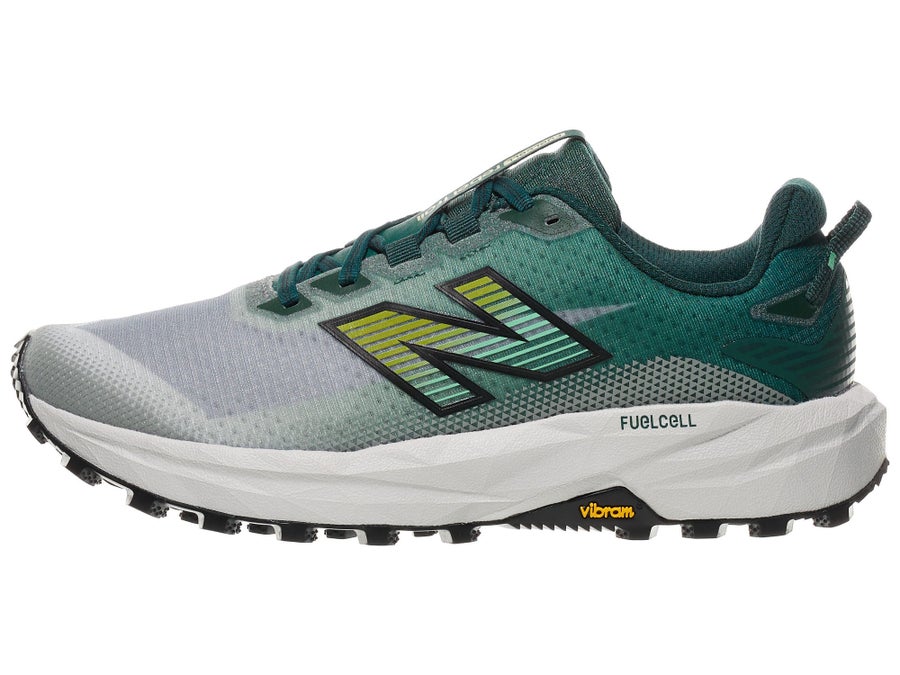

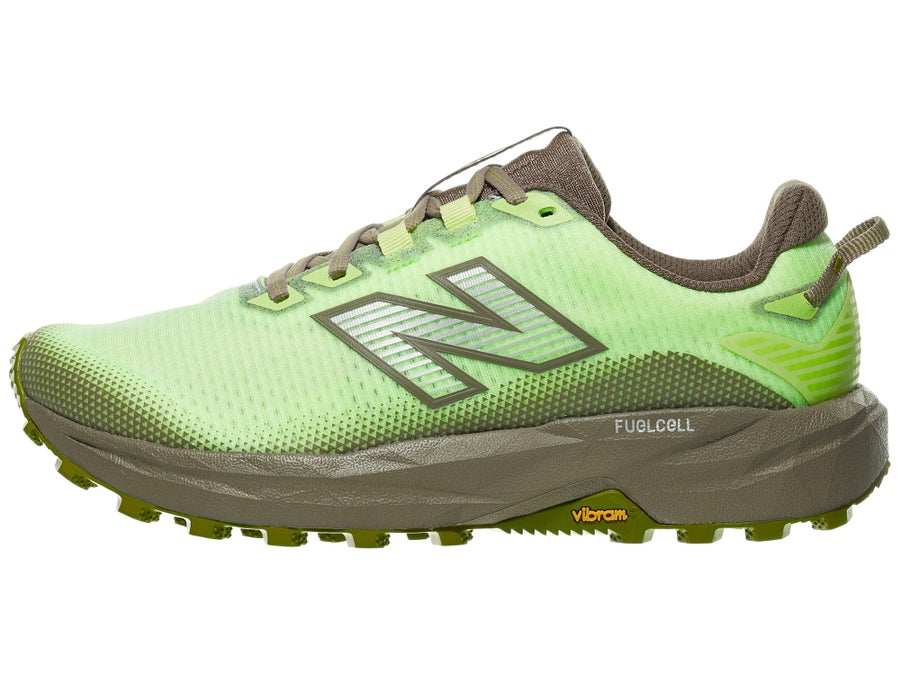

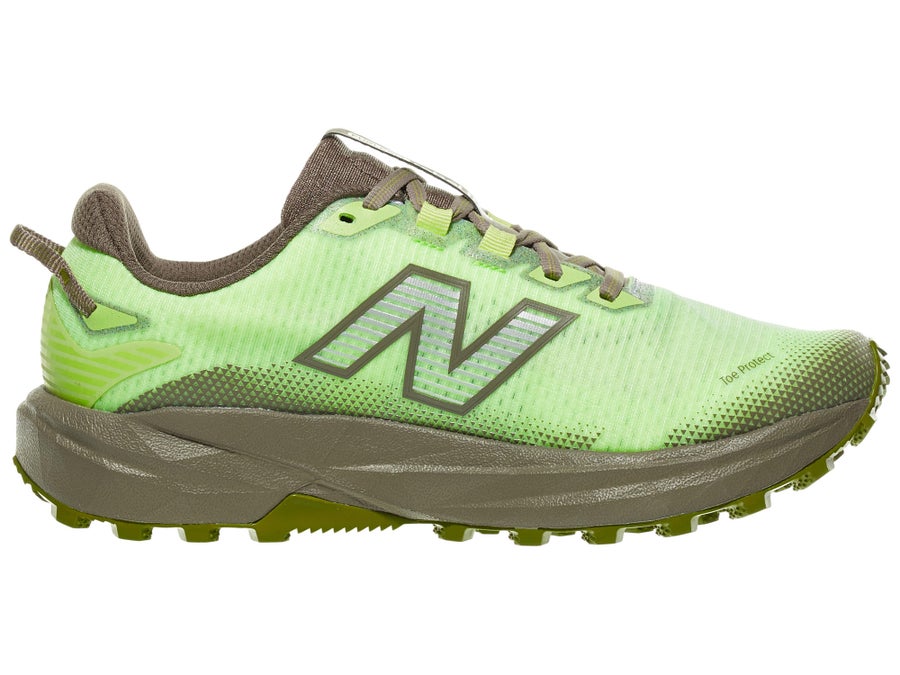

  • new-balance-fuelcell-rebel-trail medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • new-balance-fuelcell-rebel-trail lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • new-balance-fuelcell-rebel-trail medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • new-balance-fuelcell-rebel-trail lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (24)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 60 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop6 mmStatedMediumSpec listingTrainingPlan.dev2026-10-04
Heel stack33 mmStatedMediumSpec listingTrainingPlan.dev2026-10-04
Heel stack33 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack27 mmStatedMediumSpec listingTrainingPlan.dev2026-10-04
Forefoot stack27 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Weight289 gStatedMediumSpec listingRunning Warehouse2026-10-04
Rocker apex64.8 %est.LowSide photoRunning Warehouse2026-10-04
Rocker apex64.4 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius47 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius47 %est.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle28 degest.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle29 degest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground39 mmest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground39 mmest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe67 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe67 degest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset76.6 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset76.1 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)19.1 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)19.2 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length6.2 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length6.5 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel height5 mmest.LowSide photoRunning Warehouse2026-10-04
Heel bevel height6 mmest.LowSide photoRunning Warehouse2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=755faf852ec5ae88d8e992b458c7945fc955c7a54f1f158c1f7bde2f87811cc3; 0.3
  • Running Warehouse: sha256=b8ac6543a98334429815a59b5e335bd977f6cc3797e8064262d6ffc1113406c2; 0.3
  • Running Warehouse: sha256=3b31354c5448194821b1636ca20c246ad780b2ba8f85275a42bc8aaf9392b2f3; 0.3
  • Running Warehouse: sha256=f24bf07da57889614ef5c99ffcb6ac9070e91f27757516effec3d3548c8469d3; 0.3
