ShoeGeometry

Topo Athletic Ultraventure 5

TrailTrailNo plate2026Men'sCurrent

Specifications

Heel-to-toe drop
Derived
5mm
Mediumderived_from_stack_v1source
Heel stack
Manufacturer stated
35mm
Mediumregex_specs_v2source
Forefoot stack
Manufacturer stated
30mm
Mediumregex_specs_v2source
Weight
Manufacturer stated
309g
Mediumregex_specs_v2source
Plate
No plate
Primary foam
ZipFoam
List price
$155

Plate, foam and price from Great news: Topo Athletic didn't mess up the Ultraventure 5 | Believe in the Run.

Geometry

Catalogue average: heel 39 mm, forefoot 32 mm, rocker apex 65 %Topo Athletic Ultraventure 5: heel 35 mm, forefoot 30 mm (drop 5 mm); rocker apex 66 % of length, radius 44 % of length.35 mm30 mmRocker apex at 66 % of length from the heelrocker apex 66 %toeheel
Forefoot: rocker apex later earlierRear: heel stack lower higher not measured
Dashed: average of the catalogue
Drawn from the measured values, to scale for a 290 mm shoe; the grey upper is a generic outline, not this shoe’s. Topo Athletic Ultraventure 5: heel 35 mm, forefoot 30 mm (drop 5 mm); rocker apex 66 % of length, radius 44 % of length.

Percent values are relative to shoe length so they compare across images and sizes; millimetre values are lab measurements from the cited source. See how rocker geometry is defined.

Rocker apex
AI estimated
65.9%
Lowvision_rocker · 0.3-bc1source
Rocker radius
AI estimated
44%
Lowvision_rocker · 0.3-bc1source
Rocker rise angle
AI estimated
27deg
Lowvision_rocker · 0.3-bc1source
Toe tip over ground
AI estimated
35mm

Average of two photos 0.1 mm apart.

Lowvision_rocker · 0.3-bc1source
Rocker angle at toe
AI estimated
60deg
Lowvision_rocker · 0.3-bc1source
Visible rocker lift onset
AI estimated
75.4%
Lowvision_rocker · 0.3-bc1source
Toe spring (relative)
AI estimated
20.2%
Lowvision_rocker · 0.3-bc1source

How it compares

  • Topo Athletic Ultraventure 5's heel-to-toe drop is 5 mm, lower than the catalogue median of 7 mm (16% of the 91 other current shoes are lower).
  • Topo Athletic Ultraventure 5's heel stack is 35 mm, thinner than the catalogue median of 39 mm (15% of the 91 other current shoes are thinner).
  • Topo Athletic Ultraventure 5's forefoot stack is 30 mm, thinner than the catalogue median of 32 mm (26% of the 91 other current shoes are thinner).
  • Topo Athletic Ultraventure 5's weight is 309 g, heavier than the catalogue median of 268 g (88% of the 82 other current shoes are lighter).

Compare:Topo Athletic Ultraventure 5 vs La Sportiva Prodigio Pro

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • Great news: Topo Athletic didn't mess up the Ultraventure 5 | Believe in the Runreviewbelieveintherun.comaccessed 2026-10-03open ↗
  • Topo Athletic Ultraventure 5 Men's Shoes Black/Teal | Running Warehouseretailerrunningwarehouse.comaccessed 2026-10-03open ↗

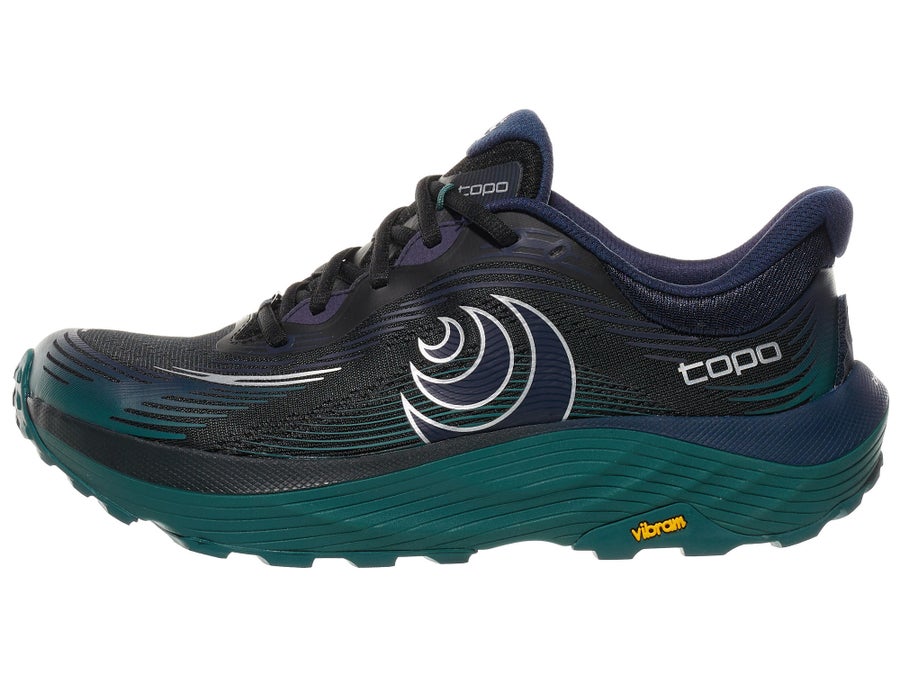

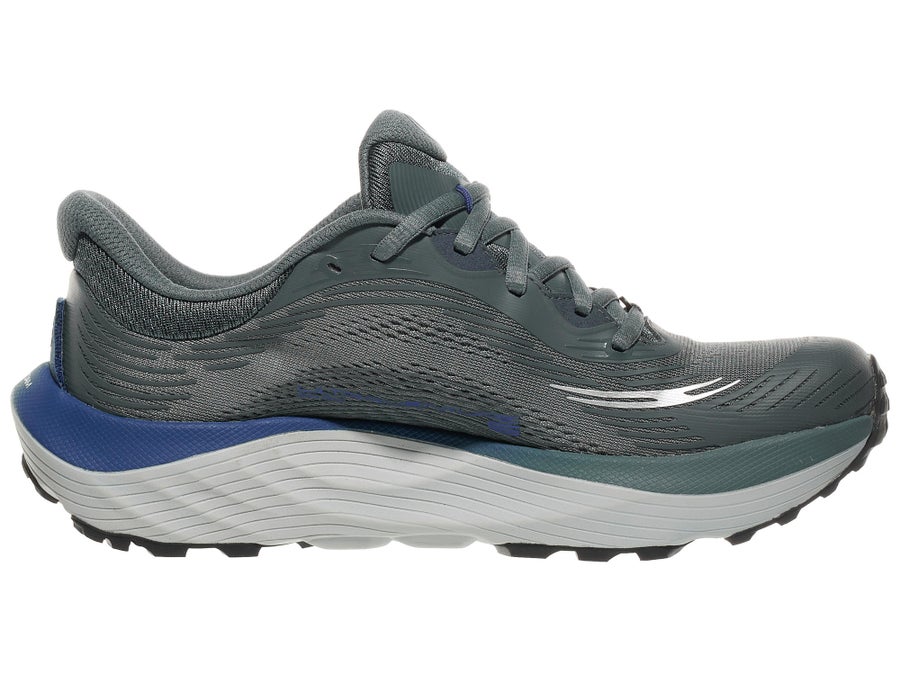

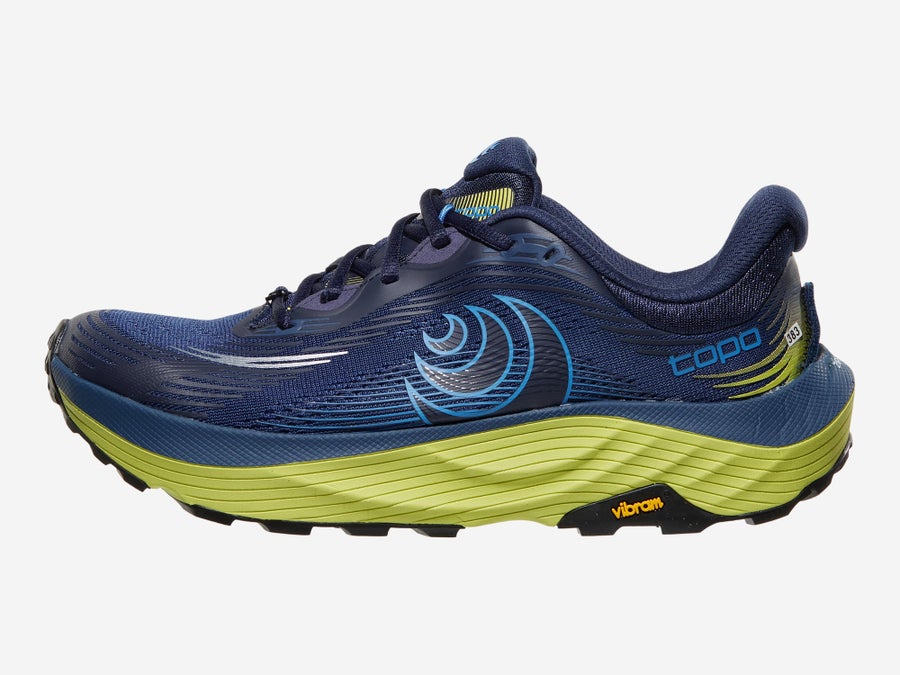

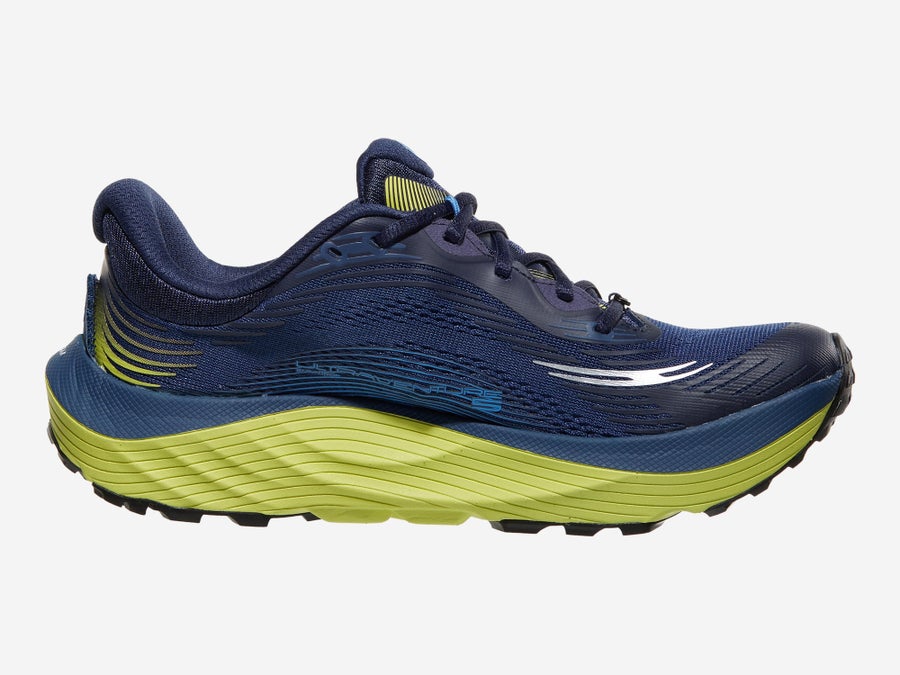

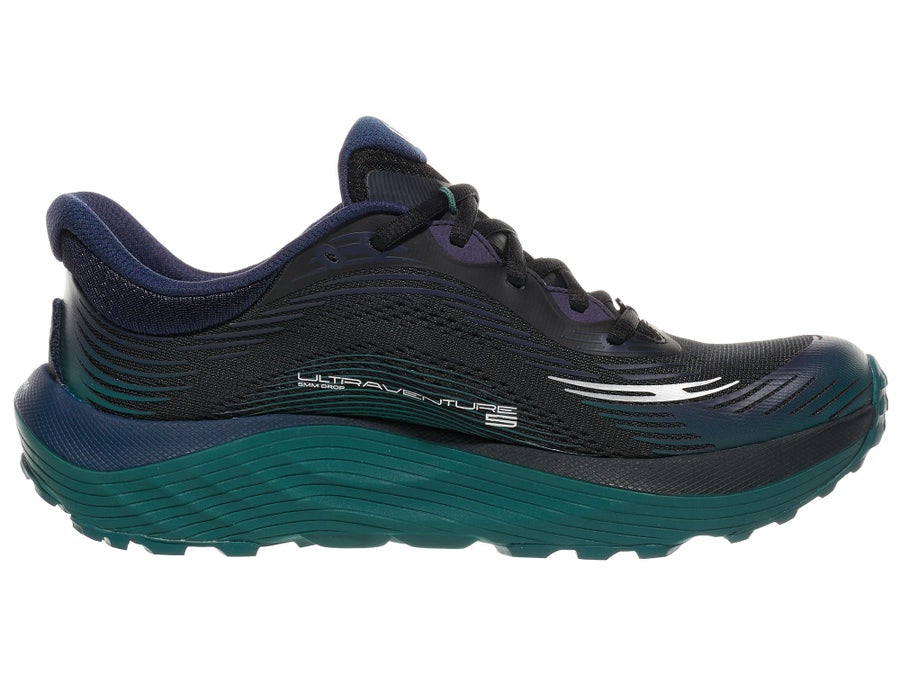

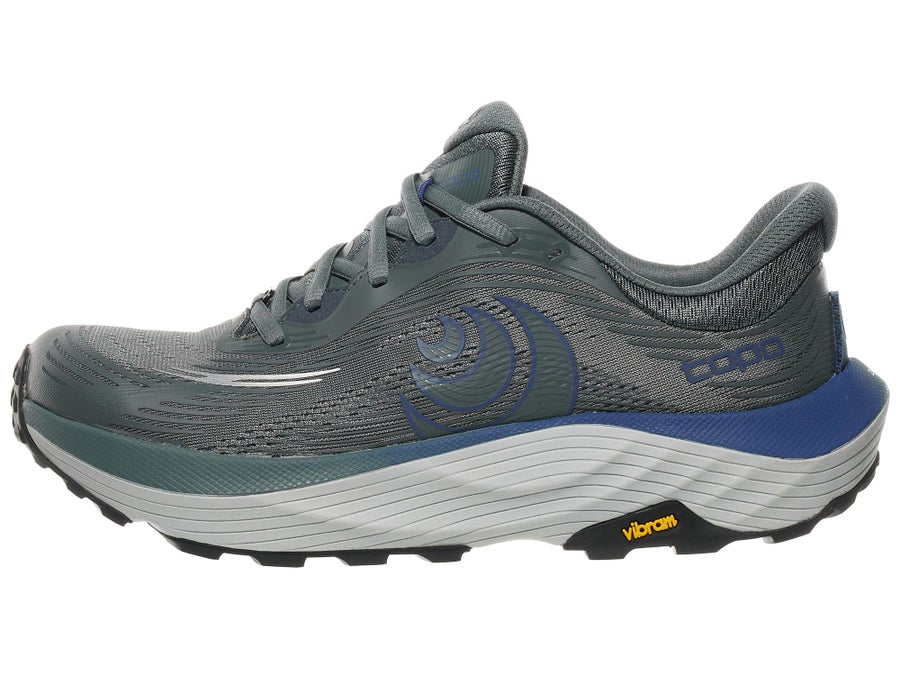

  • topo-athletic-ultraventure-5 medial product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=d8d89439dd525e9a90545d1932456f245b73deb97cf89639a62a270ef3cba3c1; 0.3
  • topo-athletic-ultraventure-5 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=058f2aae4ce38aeb8e0d4c49c3fda8835058b2dd9672c9937704fc56382b8bc4; 0.3
  • topo-athletic-ultraventure-5 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=465b7a9818ea849414cffb92d46afc1736d657e1e7517693c1491915dab755c1; 0.3
  • topo-athletic-ultraventure-5 medial product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=39a61bbf54ba159a8f850439a300b90743fd2fc03588c72079fbebdab35acc0c; 0.3
  • topo-athletic-ultraventure-5 medial product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=0c21d52aae99c6a454e289c935ba78adf74d1ab578bc3705a553991934f9bc1c; 0.3
  • topo-athletic-ultraventure-5 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=c0983dd9d047d2728a27ce4b4067c06f134f24ee1000fc5ad7b98594cacabb81; 0.3

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 84 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop5 mmDerivedMediumderived_from_stack_v1believeintherun.com2026-10-03
Heel stack35 mmStatedMediumregex_specs_v2runningwarehouse.com2026-10-03
Heel stack35 mmStatedMediumregex_specs_v2believeintherun.com2026-10-03
Forefoot stack30 mmStatedMediumregex_specs_v2believeintherun.com2026-10-03
Forefoot stack30 mmStatedMediumregex_specs_v2runningwarehouse.com2026-10-03
Weight309 gStatedMediumregex_specs_v2runningwarehouse.com2026-10-03
Weight303 g (US M9)StatedMediumregex_specs_v2believeintherun.com2026-10-03
Rocker apex65.9 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker apex65.9 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker radius44 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker radius44 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker rise angle27 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker rise angle27 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker angle at toe60 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe tip over ground35 mmest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe tip over ground35 mmest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker angle at toe60 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Visible rocker lift onset75.4 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Visible rocker lift onset75.5 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe spring (relative)20.2 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe spring (relative)19.5 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
