ShoeGeometry

On Cloudrunner 3

StabilityRoadNo plate2026Men'sCurrent

At a glance

Heel-to-toe drop
8 mmStated
Stack, heel / forefoot
31 / 23 mmStated
Weight
309 gStatedUS M10
Plate
No plate
Toe rocker
33 % of lengthest.photos 31–33 %
Heel bevel
12.6 % of lengthest.photos 10–13 %
Stiffness / firmness
60 / 90 of 100Derived
Primary foam
Helion

How it compares

  • On Cloudrunner 3's heel-to-toe drop is 8 mm, higher than the catalogue median of 6 mm (59% of the 179 other current shoes are lower).
  • On Cloudrunner 3's heel stack is 31 mm, thinner than the catalogue median of 38 mm (9% of the 176 other current shoes are thinner).
  • On Cloudrunner 3's forefoot stack is 23 mm, thinner than the catalogue median of 31.5 mm (4% of the 171 other current shoes are thinner).
  • On Cloudrunner 3's weight is 309 g, heavier than the catalogue median of 269 g (90% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
8mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Heel stack
Manufacturer stated
31mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Forefoot stack
Manufacturer stated
23mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Weight
Manufacturer stated
309g
MediumSpec listingbrand figure, reported by Believe in the RunUS M10source
Plate
No plate
Primary foam
Helion
List price
$160

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 35 %On Cloudrunner 3: heel 31 mm, forefoot 23 mm (drop 8 mm); toe rocker 33 % of length, radius 39 % of length; heel bevel 13 % of length, 20 mm high at the back, ending about under the heel bone.31 mm23 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 13 % of length (foam compresses more under load), ending about under the heel boneheel bevel 13 %Toe rocker: the front 33 % of the length curves up (the curve leaves the ground 67 % of length from the heel)toe rocker 33 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. On Cloudrunner 3: heel 31 mm, forefoot 23 mm (drop 8 mm); toe rocker 33 % of length, radius 39 % of length; heel bevel 13 % of length, 20 mm high at the back, ending about under the heel bone. Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
33%

4 photos range 31–33 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker radius
AI estimated
39%

4 photos range 39–46 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker rise angle
AI estimated
27deg

4 photos range 25–28 deg; shown is one of the two that agree most closely.

LowSide photosource
Toe tip over ground
AI estimated
34mm

4 photos range 34–37 mm; shown is the average of the two that agree most closely.

LowSide photosource
Rocker angle at toe
AI estimated
55deg

4 photos range 53–57 deg; shown is one of the two that agree most closely.

LowSide photosource
Visible rocker lift onset
AI estimated
77.7%

4 photos range 77.7–79.7 %; shown is one of the two that agree most closely.

LowSide photosource
Toe spring (relative)
AI estimated
17%

4 photos range 15.6–17 %; shown is one of the two that agree most closely.

LowSide photosource
Heel bevel length
AI estimated
12.6%

4 photos range 10–12.6 %; shown is the average of the two that agree most closely.

LowSide photosource
Heel bevel height
AI estimated
20mm

4 photos range 18–21 mm; shown is the average of the two that agree most closely.

LowSide photosource
Midsole width (forefoot)
Externally measured
118.3mm
MediumLab testsource
Midsole width (heel)
Externally measured
97.8mm
MediumLab testsource
Toe box shape
AI estimated
73%

2 photos range 72–74 %; shown is the average of the two that agree most closely.

LowTop photosource
Interior forefoot width
Externally measured
95.5mm
MediumLab testsource
Toebox width
Externally measured
71mm
MediumLab testsource

Stiffness

Longitudinal stiffness
Derived
60/ 100

Lab reading: 19.3 N, force to bend the shoe 30° (lab bending test); the score is our 0–100 rescaling of it.

MediumLab flex testsource
Midsole firmness
Derived
90/ 100

Lab reading: 43.6 Asker C, midsole durometer reading (higher = firmer); the score is our 0–100 rescaling of it.

MediumLab durometersource
Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • On Cloudrunner 3 Review (2026) - Doctors of RunningreviewDoctors of Runningaccessed 2026-10-04open ↗
  • On Cloudrunner 3 Review: What's Firmer Than Bein' Firm? | Believe in the RunreviewBelieve in the Runaccessed 2026-10-04open ↗

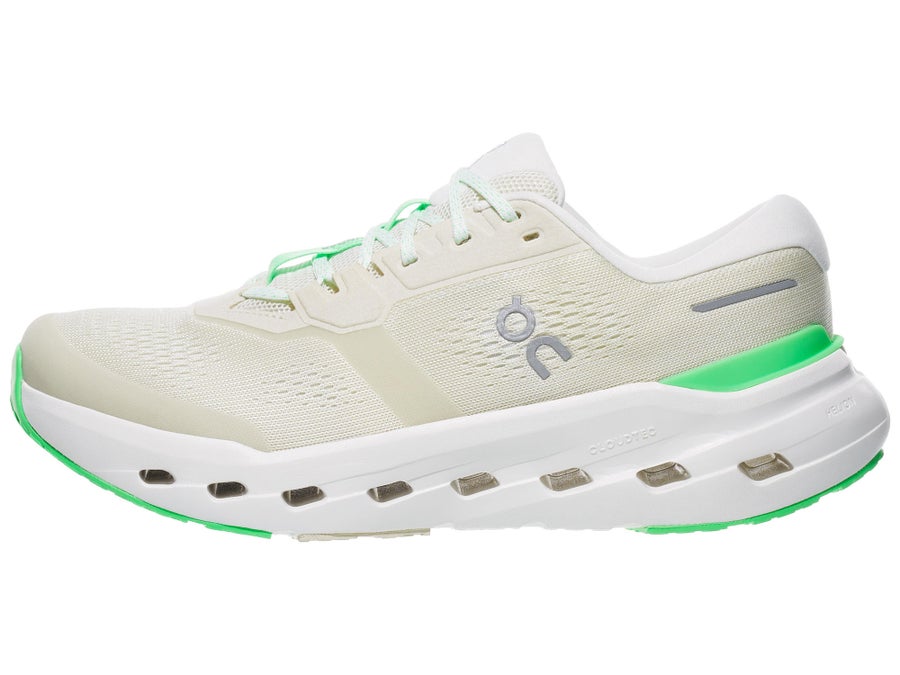

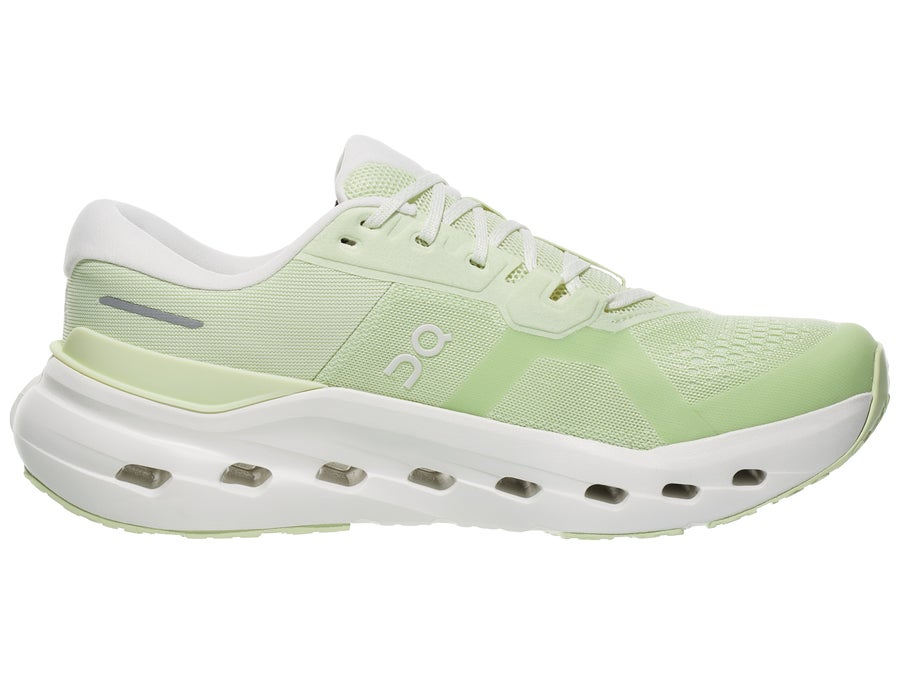

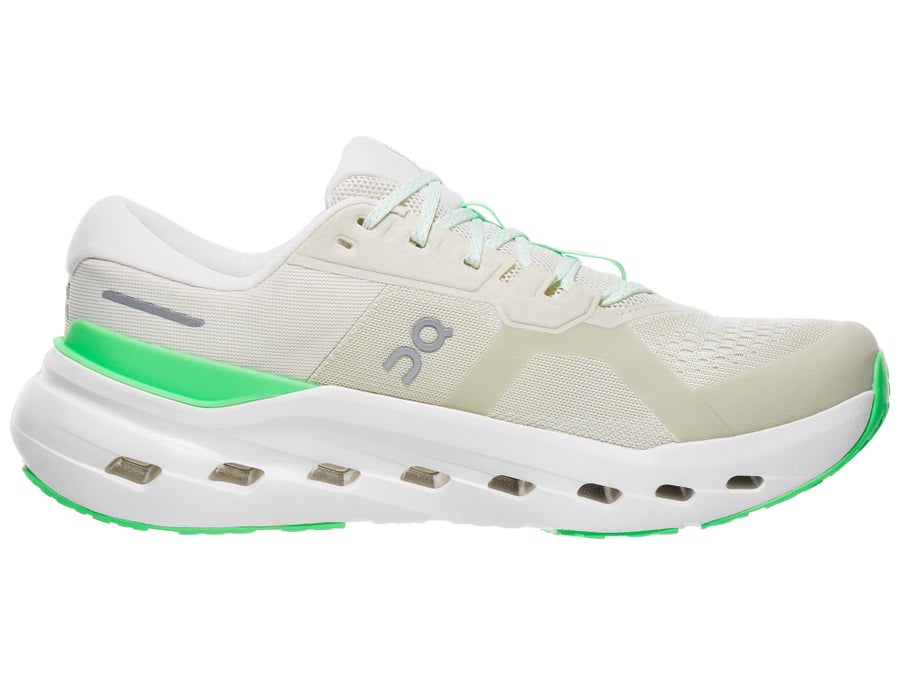

  • on-cloudrunner-3 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • on-cloudrunner-3 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • on-cloudrunner-3 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • on-cloudrunner-3 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • Cut in half: On Cloudrunner 3 Review (2026) | RunRepeatlabRunRepeataccessed 2026-10-04open ↗

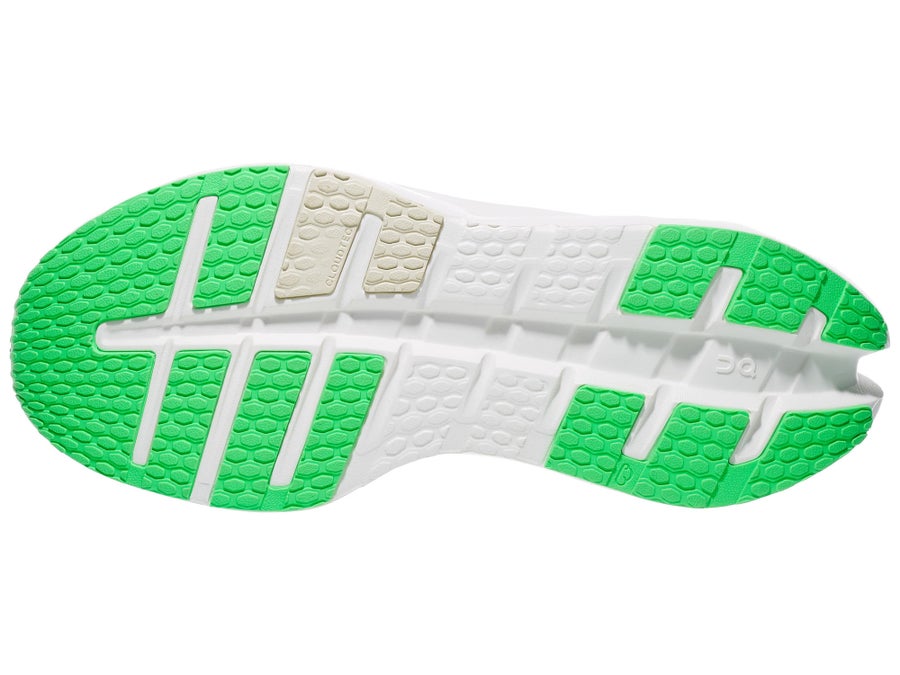

  • on-cloudrunner-3 sole product photoimageRunning Warehouseaccessed 2026-10-04open ↗

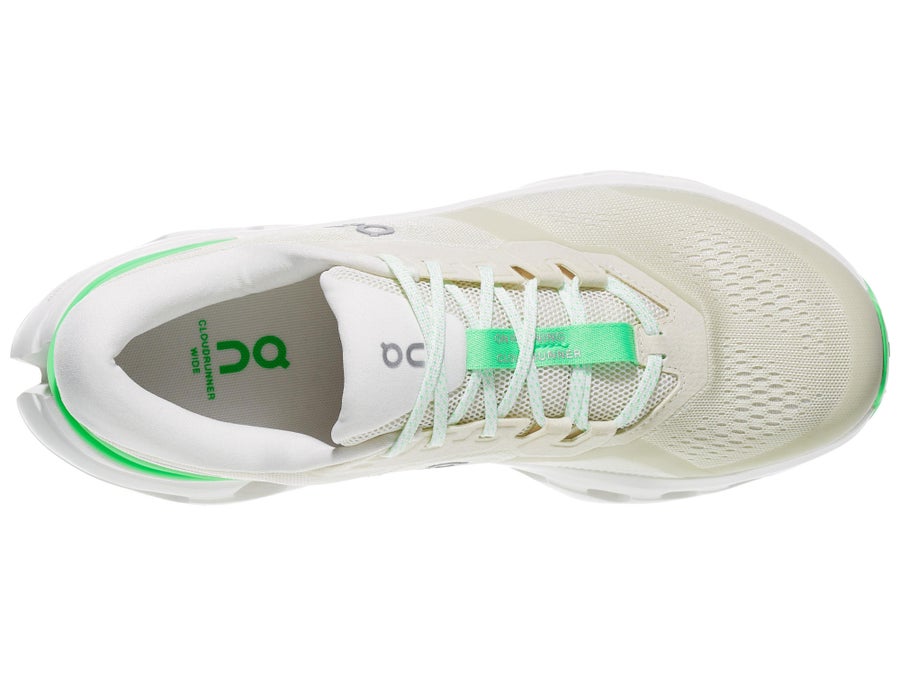

  • on-cloudrunner-3 top product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (32)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 62 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop8 mmStatedMediumSpec listingDoctors of Running2026-10-04
Heel stack31 mmStatedMediumSpec listingBelieve in the Run2026-10-04
Heel stack31 mmStatedMediumSpec listingDoctors of Running2026-10-04
Forefoot stack23 mmStatedMediumSpec listingDoctors of Running2026-10-04
Forefoot stack23 mmStatedMediumSpec listingBelieve in the Run2026-10-04
Weight309 g (US M10)StatedMediumSpec listingBelieve in the Run2026-10-04
Rocker apex66.5 %est.LowSide photoRunning Warehouse2026-10-04
Rocker apex66.5 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius39 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius39 %est.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle27 degest.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle27 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe56 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe55 degest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground34 mmest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground34 mmest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset77.7 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset77.8 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)16.7 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)17 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length12.6 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length12.6 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel height20 mmest.LowSide photoRunning Warehouse2026-10-04
Heel bevel height20 mmest.LowSide photoRunning Warehouse2026-10-04
Midsole width (forefoot)118.3 mmMeasuredMediumLab testRunRepeat2026-10-04
Midsole width (heel)97.8 mmMeasuredMediumLab testRunRepeat2026-10-04
Toe box shape74 %est.LowTop photoRunning Warehouse2026-10-04
Toe box shape72 %est.LowTop photoRunning Warehouse2026-10-04
Interior forefoot width95.5 mmMeasuredMediumLab testRunRepeat2026-10-04
Toebox width71 mmMeasuredMediumLab testRunRepeat2026-10-04
Longitudinal stiffness60 DerivedMediumLab flex testRunRepeat2026-10-04
Midsole firmness90 DerivedMediumLab durometerRunRepeat2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.
