ShoeGeometry

Puma Fast-R Nitro Elite 3

RacingRoadCarbon plate2025Men'sCurrent

At a glance

Heel-to-toe drop
8 mmStated
Stack, heel / forefoot
39 / 31 mmStated
Weight
170 gStatedsize 9
Plate
Carbon plate
Toe rocker
41 % of lengthest.photos 40–43 %
Heel bevel
13.1 % of lengthest.rough estimate; photos 13–16 %
Stiffness / firmness
80 / 60 of 100Derived
Primary foam
NITROFOAM Elite (A-TPU)

How it compares

  • Puma Fast-R Nitro Elite 3's heel-to-toe drop is 8 mm, higher than the catalogue median of 6 mm (59% of the 179 other current shoes are lower).
  • Puma Fast-R Nitro Elite 3's heel stack is 39 mm, thicker than the catalogue median of 38 mm (55% of the 176 other current shoes are thinner).
  • Puma Fast-R Nitro Elite 3's forefoot stack is 31 mm, about the catalogue median of 31.5 mm (46% of the 171 other current shoes are thinner).
  • Puma Fast-R Nitro Elite 3's weight is 170 g, lighter than the catalogue median of 269 g (2% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
8mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Heel stack
Manufacturer stated
39mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Forefoot stack
Manufacturer stated
31mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Weight
Manufacturer stated
170g
MediumSpec listingbrand figure, reported by Doctors of Runningsize 9source
Plate
Carbon plate
Primary foam
NITROFOAM Elite (A-TPU)
List price
$300

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 34 %Puma Fast-R Nitro Elite 3: heel 39 mm, forefoot 31 mm (drop 8 mm); toe rocker 41 % of length, radius 54 % of length; heel bevel 13 % of length, 29 mm high at the back, ending about under the heel bone.39 mm31 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 13 % of length (foam compresses more under load), ending about under the heel boneheel bevel 13 %Toe rocker: the front 41 % of the length curves up (the curve leaves the ground 59 % of length from the heel)toe rocker 41 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. Puma Fast-R Nitro Elite 3: heel 39 mm, forefoot 31 mm (drop 8 mm); toe rocker 41 % of length, radius 54 % of length; heel bevel 13 % of length, 29 mm high at the back, ending about under the heel bone. Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
41%

4 photos range 40–43 %; shown is their median.

LowSide photosource
Rocker radius
AI estimated
54%

4 photos range 51–55 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker rise angle
AI estimated
25deg

4 photos range 25–26 deg; shown is their median.

LowSide photosource
Toe tip over ground
AI estimated
49mm*

4 photos range 46–51 mm; shown is their median (* the photos disagree by more than usual).

LowSide photosource
Rocker angle at toe
AI estimated
50deg

4 photos range 45–50 deg; shown is one of the two that agree most closely.

LowSide photosource
Visible rocker lift onset
AI estimated
72.4%

4 photos range 71.1–72.4 %; shown is one of the two that agree most closely.

LowSide photosource
Toe spring (relative)
AI estimated
19.8%

4 photos range 19.3–20.1 %; shown is their median.

LowSide photosource
Heel bevel length
AI estimated
13.1%

4 photos range 13–15.7 %; shown is the average of the two that agree most closely.

LowSide photosource
Heel bevel height
AI estimated
29mm

4 photos range 29–31 mm; shown is the average of the two that agree most closely.

LowSide photosource
Midsole width (forefoot)
Externally measured
111.6mm
MediumLab testsource
Midsole width (heel)
Externally measured
80mm
MediumLab testsource
Toe box shape
AI estimated
65%

2 photos range 65–66 %; shown is the average of the two that agree most closely.

LowTop photosource
Interior forefoot width
Externally measured
92.9mm
MediumLab testsource
Toebox width
Externally measured
72.3mm
MediumLab testsource

Stiffness

Longitudinal stiffness
Derived
80/ 100

Lab reading: 23.1 N, force to bend the shoe 30° (lab bending test); the score is our 0–100 rescaling of it.

MediumLab flex testsource
Midsole firmness
Derived
60/ 100

Lab reading: 36.1 Asker C, midsole durometer reading (higher = firmer); the score is our 0–100 rescaling of it.

MediumLab durometersource

How it compares

Appears in:Carbon plateLightweightLonger toe rocker

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • Puma Fast-R Nitro Elite 3 Review (2025): Forefoot Runner's Dream Racing Shoe? - Doctors of RunningreviewDoctors of Runningaccessed 2026-10-04open ↗
  • PUMA Fast-R Nitro Elite 3 Men's Shoes Red/Inky Depths | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗

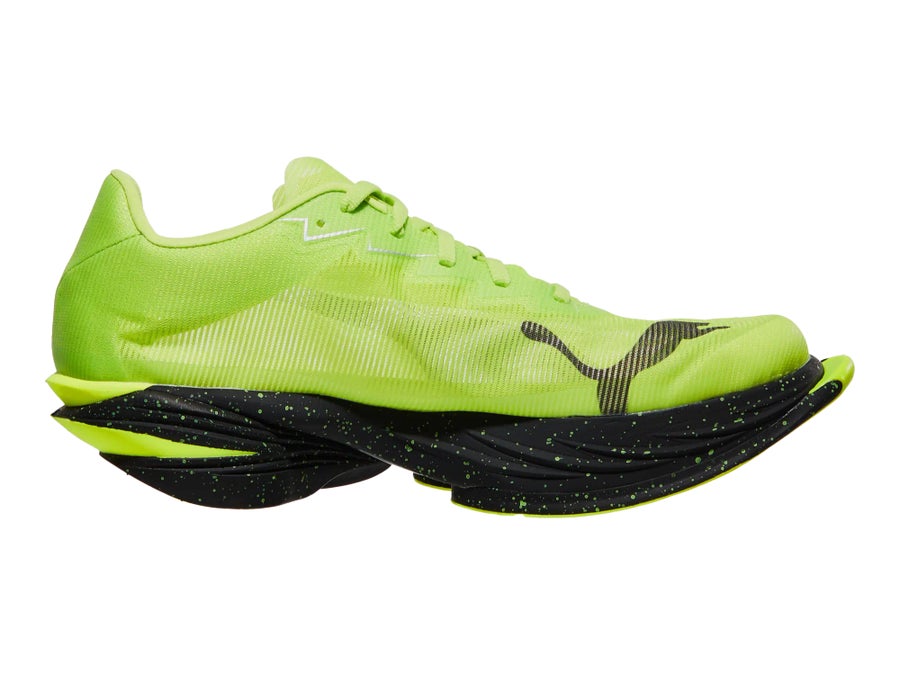

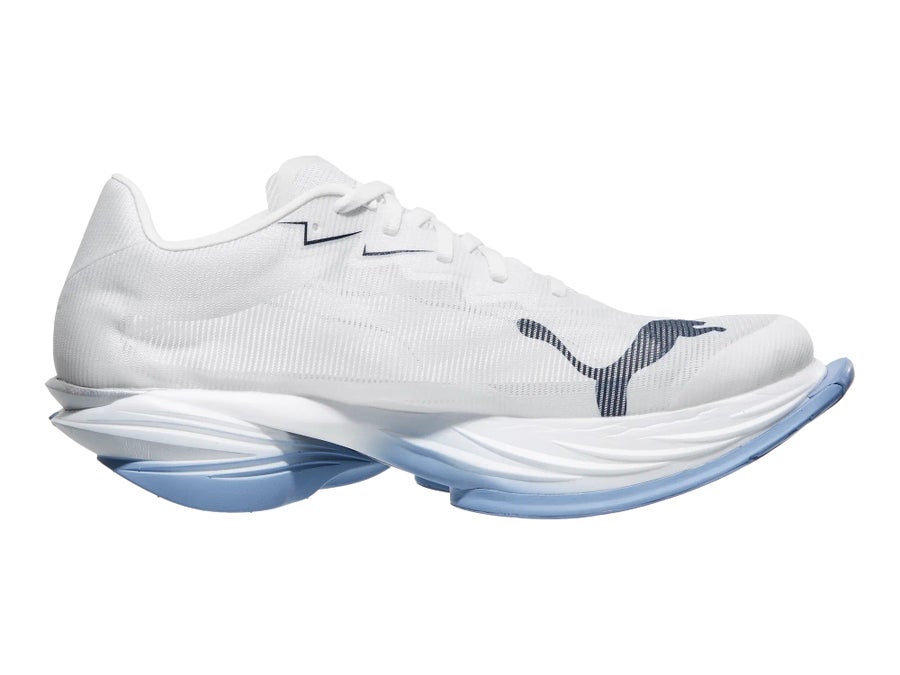

  • puma-fast-r-nitro-elite-3 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • puma-fast-r-nitro-elite-3 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗

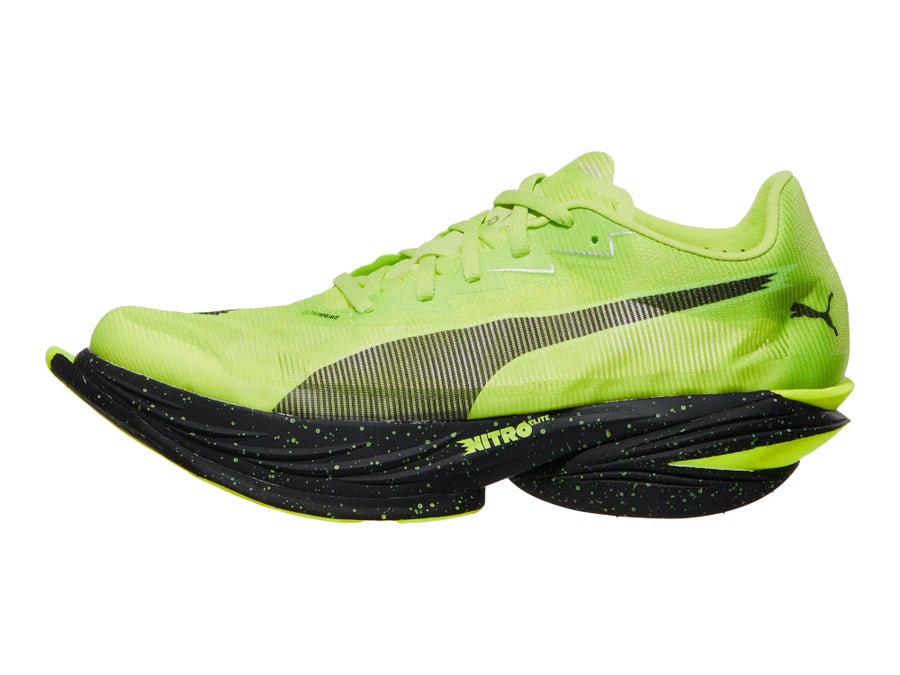

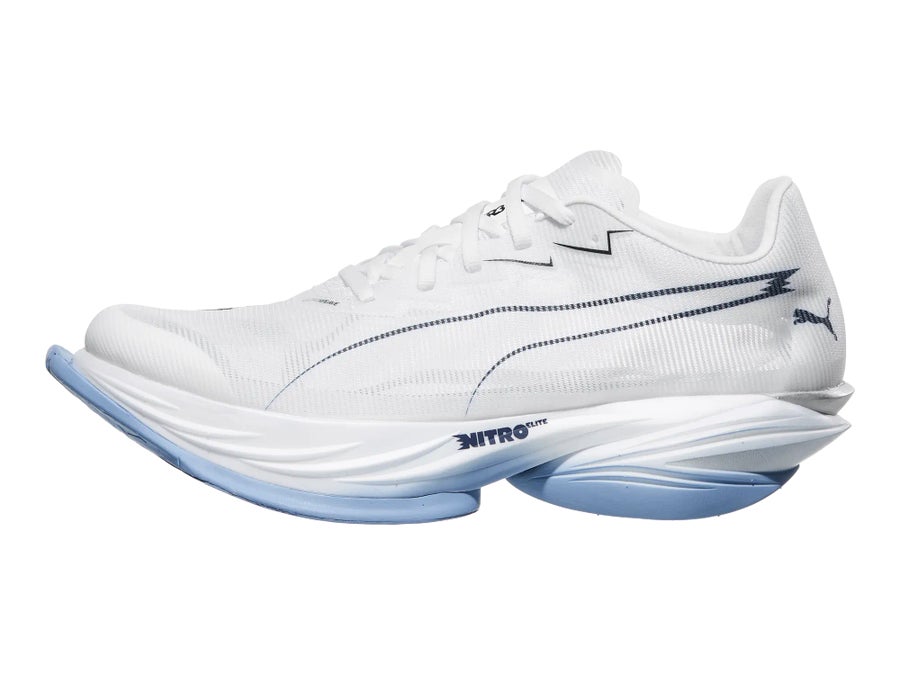

  • puma-fast-r-nitro-elite-3 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • puma-fast-r-nitro-elite-3 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • Cut in half: PUMA Fast-R Nitro Elite 3 Review (2025) | RunRepeatlabRunRepeataccessed 2026-10-04open ↗

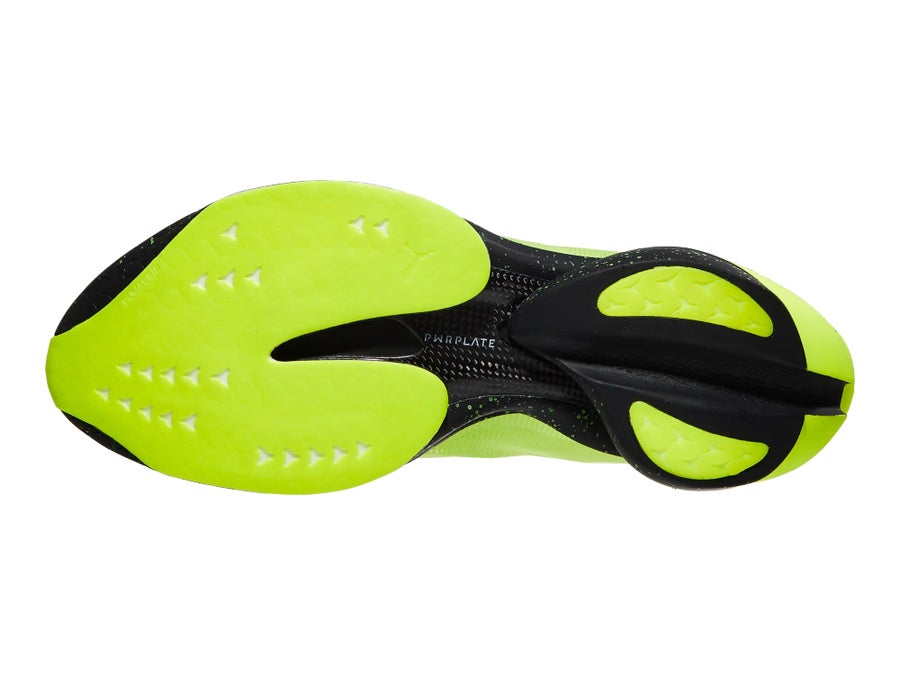

  • puma-fast-r-nitro-elite-3 sole product photoimageRunning Warehouseaccessed 2026-10-04open ↗

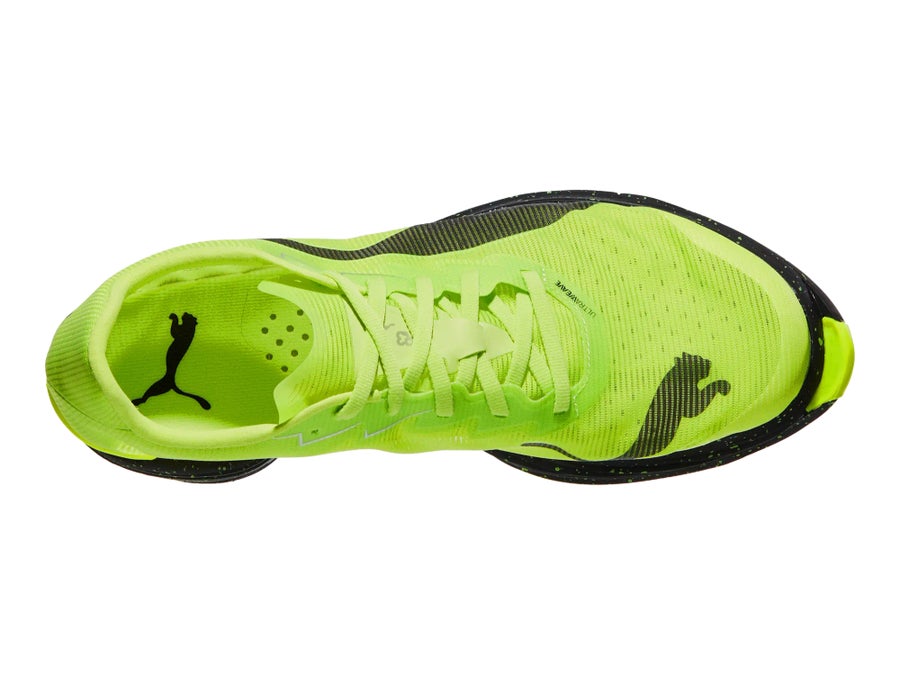

  • puma-fast-r-nitro-elite-3 top product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (33)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 58 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop8 mmStatedMediumSpec listingDoctors of Running2026-10-04
Heel stack39 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Heel stack39 mmStatedMediumSpec listingDoctors of Running2026-10-04
Forefoot stack31 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack31 mmStatedMediumSpec listingDoctors of Running2026-10-04
Weight170 g (size 9)StatedMediumSpec listingDoctors of Running2026-10-04
Weight170 gStatedMediumSpec listingRunning Warehouse2026-10-04
Rocker apex59.8 %est.LowSide photoRunning Warehouse2026-10-04
Rocker apex59.6 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius54 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius55 %est.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle25 degest.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle25 degest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground50 mmest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground51 mmest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe50 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe50 degest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset72.3 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset72.4 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)19.8 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)19.8 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length13.3 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length13 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel height30 mmest.LowSide photoRunning Warehouse2026-10-04
Heel bevel height29 mmest.LowSide photoRunning Warehouse2026-10-04
Midsole width (forefoot)111.6 mmMeasuredMediumLab testRunRepeat2026-10-04
Midsole width (heel)80 mmMeasuredMediumLab testRunRepeat2026-10-04
Toe box shape65 %est.LowTop photoRunning Warehouse2026-10-04
Toe box shape66 %est.LowTop photoRunning Warehouse2026-10-04
Interior forefoot width92.9 mmMeasuredMediumLab testRunRepeat2026-10-04
Toebox width72.3 mmMeasuredMediumLab testRunRepeat2026-10-04
Longitudinal stiffness80 DerivedMediumLab flex testRunRepeat2026-10-04
Midsole firmness60 DerivedMediumLab durometerRunRepeat2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=44598053398a74774841075ffe08c5fe4c7e4e895b4a782e4a95ff01ba23467e; 0.3
  • Running Warehouse: sha256=6d37388db79c84b7862c779905a1457ff3bd8303302cec79cb8086d34ba57959; 0.3
  • Running Warehouse: sha256=f680775c407af8d00110541d563fb3d486a45ea39bb98105c4922af53fab5581; 0.3
  • Running Warehouse: sha256=9df5f6a46fc369a179ff073832eb68a37619a4d31dba104134d5bb876644e1d7; 0.3
  • Running Warehouse: sha256=9203bdcaa4d861ef9d0a578fb4429a36307f50cd07b1fb98203ce290e01bd1ea; 0.1
  • Running Warehouse: sha256=d6215324e6a9db5e9917249eeb9ef17b552868720749b48328a8c2f119c4c9ce; 0.1
