New Balance FuelCell SuperComp Trail v2

TrailTrailCarbon plate2026Men'sCurrent

At a glance

Heel-to-toe drop
8 mmStated
Stack, heel / forefoot
39 / 31 mmStated
Weight
278 gStatedUS M9
Plate
Carbon plate
Toe rocker
37 % of lengthest.photos 36–42 %
Heel bevel
12.5 % of lengthest.photos 11–14 %
Stiffness / firmness
not measured yet
Primary foam
FuelCell (PEBA blend)

How it compares

  • New Balance FuelCell SuperComp Trail v2's heel-to-toe drop is 8 mm, higher than the catalogue median of 6 mm (59% of the 179 other current shoes are lower).
  • New Balance FuelCell SuperComp Trail v2's heel stack is 39 mm, thicker than the catalogue median of 38 mm (55% of the 176 other current shoes are thinner).
  • New Balance FuelCell SuperComp Trail v2's forefoot stack is 31 mm, about the catalogue median of 31.5 mm (46% of the 171 other current shoes are thinner).
  • New Balance FuelCell SuperComp Trail v2's weight is 278 g, heavier than the catalogue median of 269 g (60% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
8mm
MediumSpec listingbrand figure, reported by Believe in the Runsource
Heel stack
Manufacturer stated
39mm
MediumSpec listingbrand figure, reported by Believe in the Runsource
Forefoot stack
Manufacturer stated
31mm
MediumSpec listingbrand figure, reported by Believe in the Runsource
Weight
Manufacturer stated
278g
MediumSpec listingbrand figure, reported by Believe in the RunUS M9source
Plate
Carbon plate
Primary foam
FuelCell (PEBA blend)
List price
$220

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 35 %New Balance FuelCell SuperComp Trail v2: heel 39 mm, forefoot 31 mm (drop 8 mm); toe rocker 37 % of length, radius 51 % of length; heel bevel 12 % of length, 24 mm high at the back, ending about under the heel bone.39 mm31 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 12 % of length (foam compresses more under load), ending about under the heel boneheel bevel 12 %Toe rocker: the front 37 % of the length curves up (the curve leaves the ground 63 % of length from the heel)toe rocker 37 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. New Balance FuelCell SuperComp Trail v2: heel 39 mm, forefoot 31 mm (drop 8 mm); toe rocker 37 % of length, radius 51 % of length; heel bevel 12 % of length, 24 mm high at the back, ending about under the heel bone. Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
37%

4 photos range 36–42 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker radius
AI estimated
51%

4 photos range 50–63 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker rise angle
AI estimated
27deg

4 photos range 27–29 deg; shown is one of the two that agree most closely.

LowSide photosource
Toe tip over ground
AI estimated
38mm*

4 photos range 33–38 mm; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

LowSide photosource
Rocker angle at toe
AI estimated
68deg

4 photos range 64–69 deg; shown is one of the two that agree most closely.

LowSide photosource
Visible rocker lift onset
AI estimated
71.7%

4 photos range 67.5–71.7 %; shown is one of the two that agree most closely.

LowSide photosource
Toe spring (relative)
AI estimated
20.6%

4 photos range 19.2–21.1 %; shown is one of the two that agree most closely.

LowSide photosource
Heel bevel length
AI estimated
12.5%

4 photos range 11.5–14.3 %; shown is the average of the two that agree most closely.

LowSide photosource
Heel bevel height
AI estimated
24mm

4 photos range 21–24 mm; shown is the average of the two that agree most closely.

LowSide photosource

How it compares

Appears in:Carbon plateLonger toe rocker

Compare:New Balance FuelCell SuperComp Trail v2 vs Adidas Terrex Agravic Speed Ultra 2

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • New Balance FuelCell SuperComp Trail v2 Men's Shoes Gre | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗
  • Here's What Makes the New Balance SuperComp Trail v2 Ready for Race Day | Believe in the RunreviewBelieve in the Runaccessed 2026-10-04open ↗

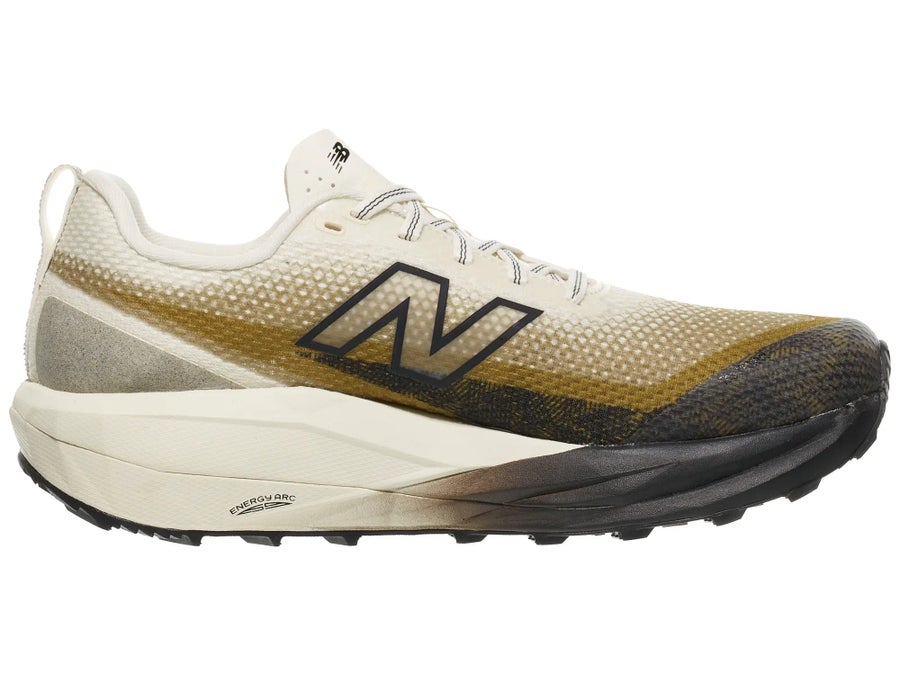

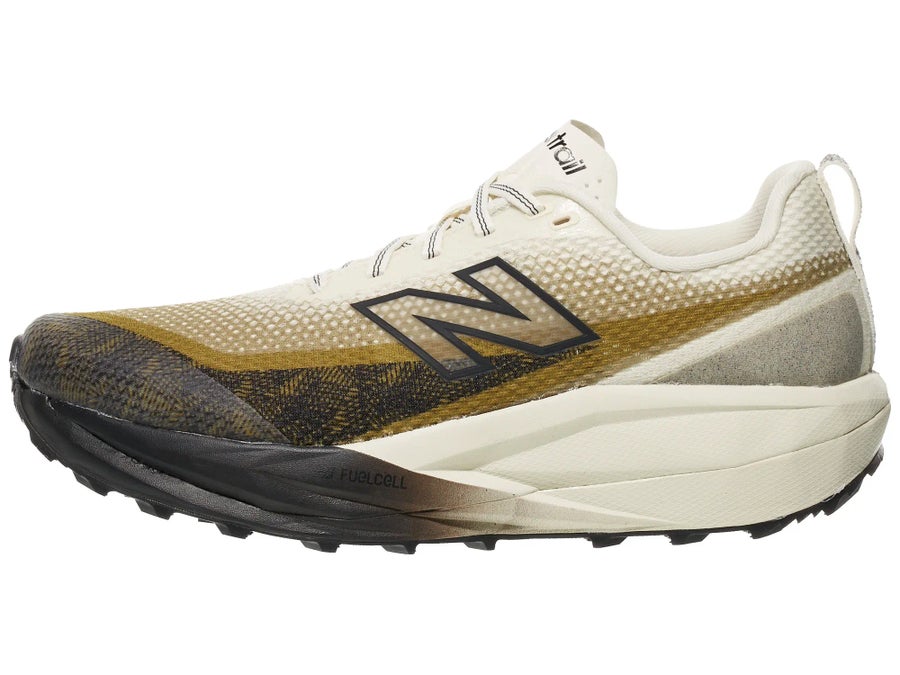

  • new-balance-fuelcell-supercomp-trail-v2 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • new-balance-fuelcell-supercomp-trail-v2 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗

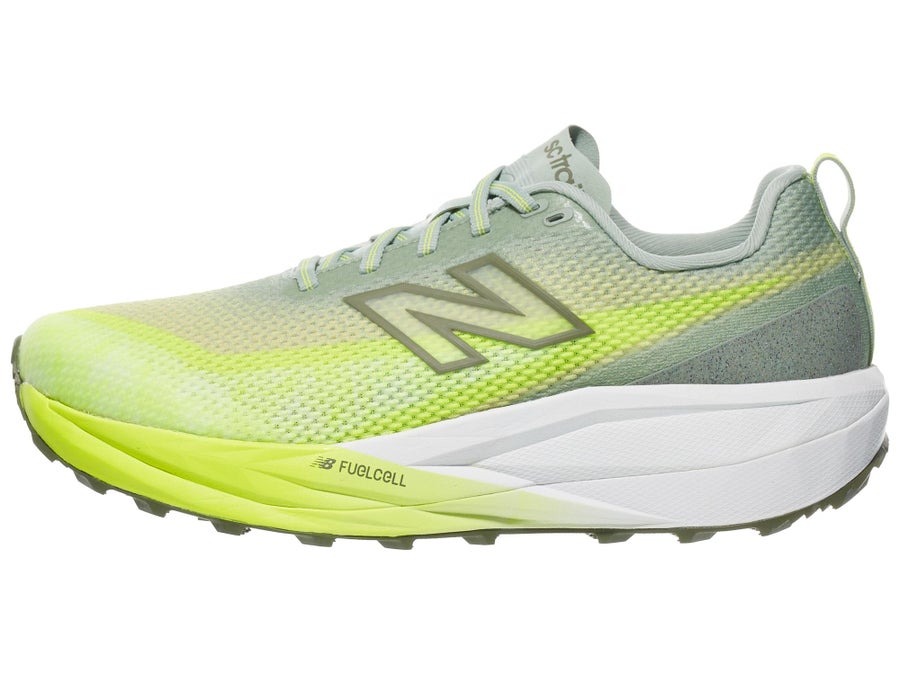

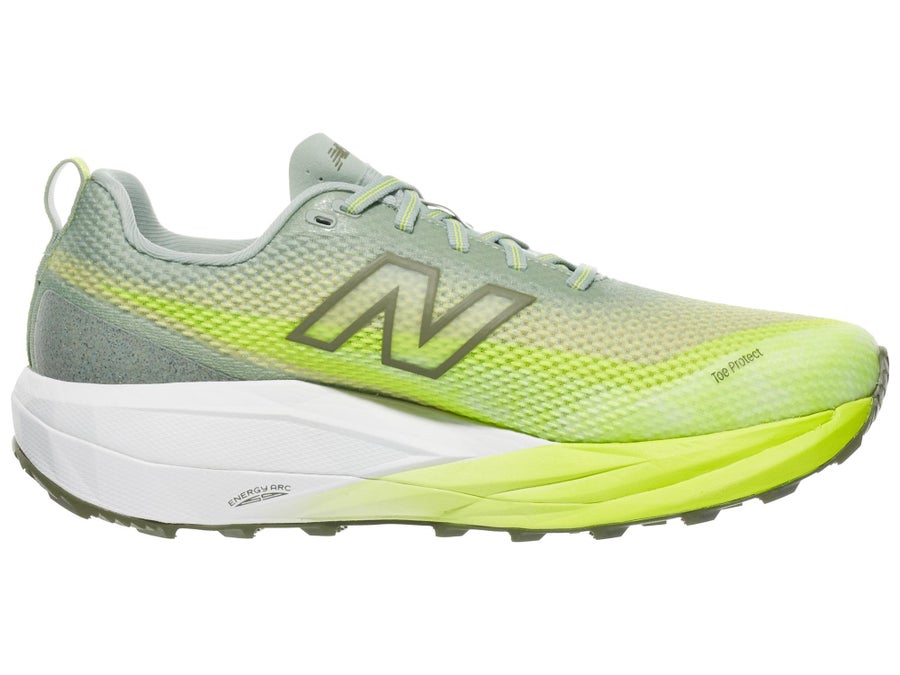

  • new-balance-fuelcell-supercomp-trail-v2 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • new-balance-fuelcell-supercomp-trail-v2 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (26)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 60 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop8 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Heel-to-toe drop8 mmStatedMediumSpec listingBelieve in the Run2026-10-04
Heel stack39 mmStatedMediumSpec listingBelieve in the Run2026-10-04
Heel stack39 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack31 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack31 mmStatedMediumSpec listingBelieve in the Run2026-10-04
Weight278 g (US M9)StatedMediumSpec listingBelieve in the Run2026-10-04
Weight278 gStatedMediumSpec listingRunning Warehouse2026-10-04
Rocker apex64.4 %est.LowSide photoRunning Warehouse2026-10-04
Rocker apex63 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius50 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius51 %est.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle27 degest.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle27 degest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground38 mmest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe68 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe68 degest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground37 mmest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset71.6 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset71.7 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)21.1 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)20.6 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length12.4 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length12.5 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel height24 mmest.LowSide photoRunning Warehouse2026-10-04
Heel bevel height24 mmest.LowSide photoRunning Warehouse2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=5b46b8efeb472b95bf17612481ea3f182385ae8750754606800eab42d73cc014; 0.3
  • Running Warehouse: sha256=52b909438d84351d84e775070726bbc538b68a8a347977c608c968e50c31a5a8; 0.3
  • Running Warehouse: sha256=dec7c266324ad4140e7871de573cff87791c9bab10faf7a0ad224fed9bc6df0e; 0.3
  • Running Warehouse: sha256=03fe1925f465e350d395f1f5ba6d97670e041f2d814185aadc8e3e549c7769fe; 0.3

Shoes with similar geometry

Compare these →

Closest current models from other lines by stack, drop, rocker, toe height, stiffness, firmness, weight and width, whichever both shoes have.

Side profile illustration of the Nike ACG Ultrafly Trail
Nike
ACG Ultrafly Trail
Trail · Carbon plate
Drop
8.5 mm
Heel
38 mm
Toe rocker
37%

Very close on every shared measure

Side profile illustration of the VJ Ultra 3
VJ
Ultra 3
Trail · Rock plate
Drop
8 mm
Heel
38 mm
Toe rocker
—

Very close on every shared measure

Side profile illustration of the Puma Deviate Nitro Elite Trail
Puma
Deviate Nitro Elite Trail
Trail · Carbon composite
Drop
6 mm
Heel
36 mm
Toe rocker
36%

vs this shoe: 2 mm less drop · 3 mm lower heel

Side profile illustration of the Salomon Ultra Glide 4
Salomon
Ultra Glide 4
Trail · No plate
Drop
6 mm
Heel
41 mm
Toe rocker
39%

vs this shoe: 2 mm less drop
