ShoeGeometry

On Cloudmonster 3 Hyper

Max cushionRoadNo plate2026Men'sCurrent

At a glance

Heel-to-toe drop
6 mmStated
Stack, heel / forefoot
45 / 39 mmStated
Weight
272 gStated
Plate
No plate
Toe rocker
36 % of lengthest.photos 35–38 %
Heel bevel
10.9 % of lengthest.photos 11–16 %
Stiffness / firmness
70 / 64 of 100Derived
Primary foam
Helion HF (PEBA-based) top layer + Helion/CloudTec base

How it compares

  • On Cloudmonster 3 Hyper's heel-to-toe drop is 6 mm, about the catalogue median of 6 mm (25% of the 179 other current shoes are lower).
  • On Cloudmonster 3 Hyper's heel stack is 45 mm, thicker than the catalogue median of 38 mm (90% of the 176 other current shoes are thinner).
  • On Cloudmonster 3 Hyper's forefoot stack is 39 mm, thicker than the catalogue median of 31.5 mm (95% of the 171 other current shoes are thinner).
  • On Cloudmonster 3 Hyper's weight is 272 g, about the catalogue median of 269 g (54% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
6mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Heel stack
Manufacturer stated
45mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Forefoot stack
Manufacturer stated
39mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Weight
Manufacturer stated
272g
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Plate
No plate
Primary foam
Helion HF (PEBA-based) top layer + Helion/CloudTec base
List price
$220

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 35 %On Cloudmonster 3 Hyper: heel 45 mm, forefoot 39 mm (drop 6 mm); toe rocker 36 % of length, radius 43 % of length; heel bevel 11 % of length, 22 mm high at the back, ending about under the heel bone.45 mm39 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 11 % of length (foam compresses more under load), ending about under the heel boneheel bevel 11 %Toe rocker: the front 36 % of the length curves up (the curve leaves the ground 64 % of length from the heel)toe rocker 36 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. On Cloudmonster 3 Hyper: heel 45 mm, forefoot 39 mm (drop 6 mm); toe rocker 36 % of length, radius 43 % of length; heel bevel 11 % of length, 22 mm high at the back, ending about under the heel bone. Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
36%

4 photos range 35–38 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker radius
AI estimated
43%

4 photos range 43–45 %; shown is one of the two that agree most closely.

MediumSide photosource
Rocker rise angle
AI estimated
29deg

4 photos range 27–29 deg; shown is one of the two that agree most closely.

MediumSide photosource
Toe tip over ground
AI estimated
44mm*

4 photos range 41–49 mm; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

LowSide photosource
Rocker angle at toe
AI estimated
54deg

4 photos range 53–60 deg; shown is one of the two that agree most closely.

MediumSide photosource
Visible rocker lift onset
AI estimated
74%

4 photos range 73.7–74.9 %; shown is one of the two that agree most closely.

MediumSide photosource
Toe spring (relative)
AI estimated
20.7%

4 photos range 17.5–20.7 %; shown is one of the two that agree most closely.

MediumSide photosource
Heel bevel length
AI estimated
10.9%*

4 photos range 10.6–16.4 %; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

MediumSide photosource
Heel bevel height
AI estimated
22mm*

4 photos range 22–26 mm; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

LowSide photosource
Midsole width (forefoot)
Externally measured
118.6mm
MediumLab testsource
Midsole width (heel)
Externally measured
94.8mm
MediumLab testsource
Toe box shape
AI estimated
73%

2 photos range 73–74 %; shown is the average of the two that agree most closely.

LowTop photosource
Interior forefoot width
Externally measured
95mm
MediumLab testsource
Toebox width
Externally measured
72.8mm
MediumLab testsource

Stiffness

Longitudinal stiffness
Derived
70/ 100

Lab reading: 21.2 N, force to bend the shoe 30° (lab bending test); the score is our 0–100 rescaling of it.

MediumLab flex testsource
Midsole firmness
Derived
64/ 100

Lab reading: 37.2 Asker C, midsole durometer reading (higher = firmer); the score is our 0–100 rescaling of it.

MediumLab durometersource

How it compares

Appears in:Max cushionHigh stackLonger toe rocker

Compare:On Cloudmonster 3 Hyper vs Adidas Hyperboost EdgeOn Cloudmonster 3 Hyper vs Brooks Glycerin Max 2

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • On Cloudmonster 3 Hyper Review (2026) - Doctors of RunningreviewDoctors of Runningaccessed 2026-10-04open ↗
  • On Cloudmonster 3 Hyper Men's Shoes Ivory/Linen | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗

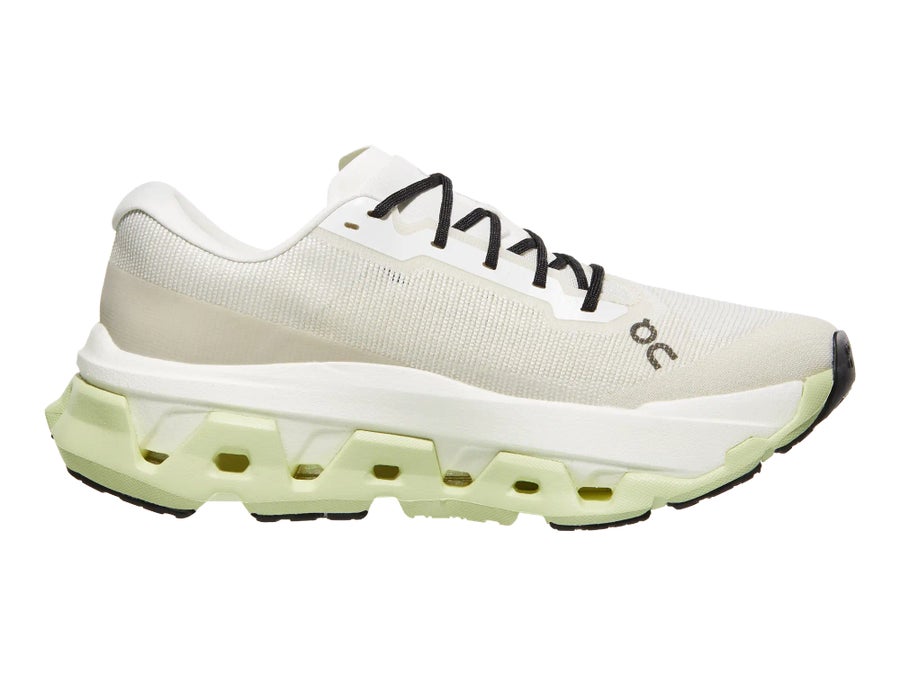

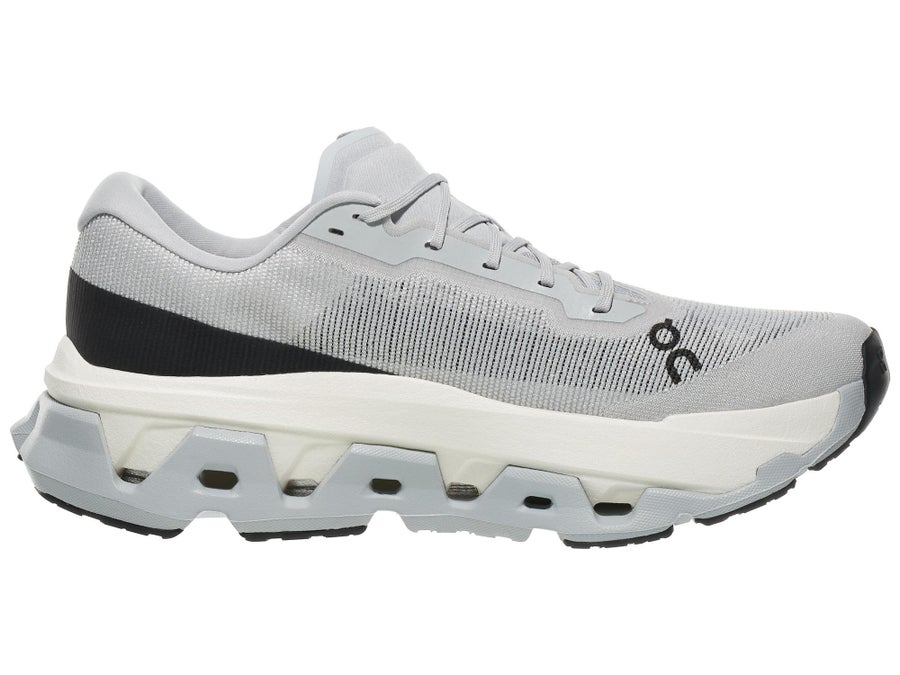

  • on-cloudmonster-3-hyper lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗

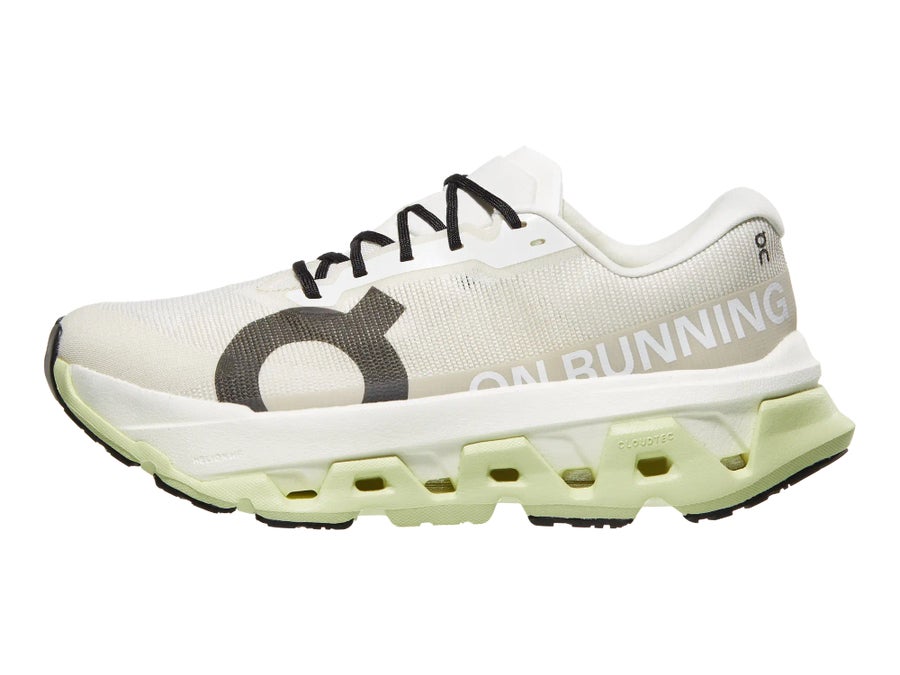

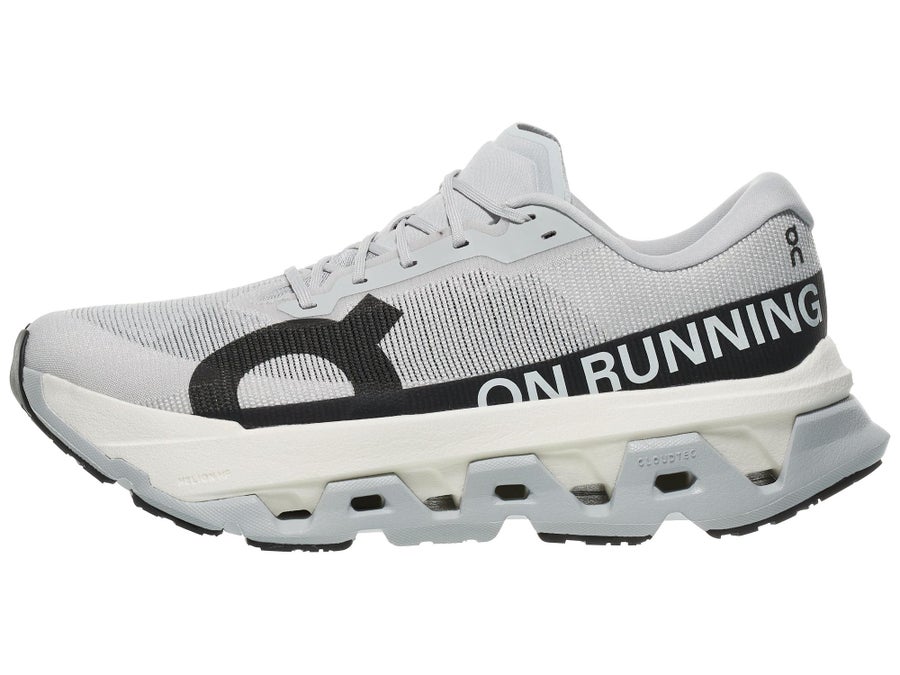

  • on-cloudmonster-3-hyper medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • on-cloudmonster-3-hyper lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • on-cloudmonster-3-hyper medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • Cut in half: On Cloudmonster 3 Hyper Review (2026) | RunRepeatlabRunRepeataccessed 2026-10-04open ↗

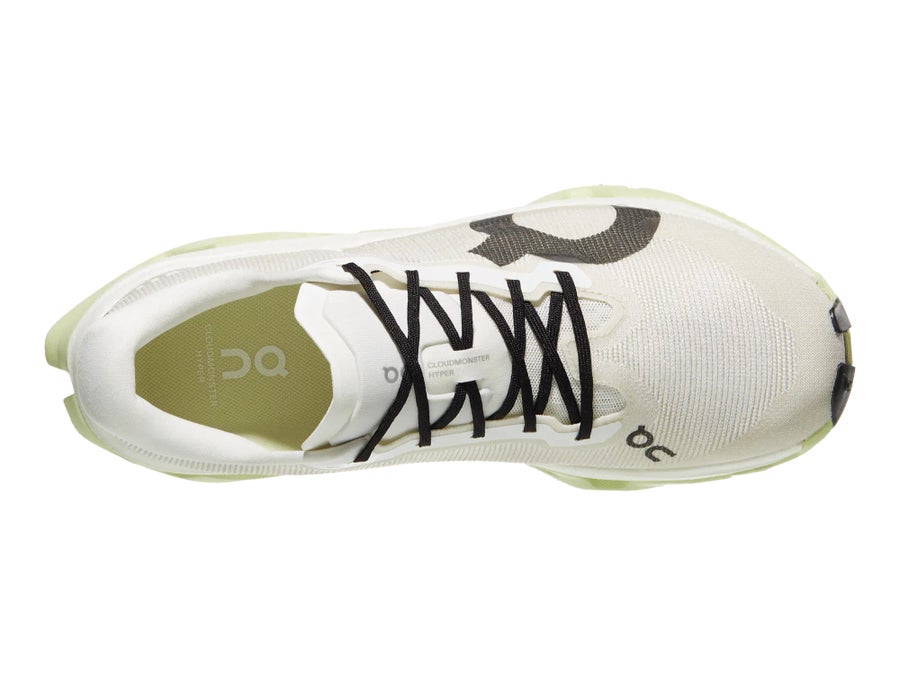

  • on-cloudmonster-3-hyper top product photoimageRunning Warehouseaccessed 2026-10-04open ↗

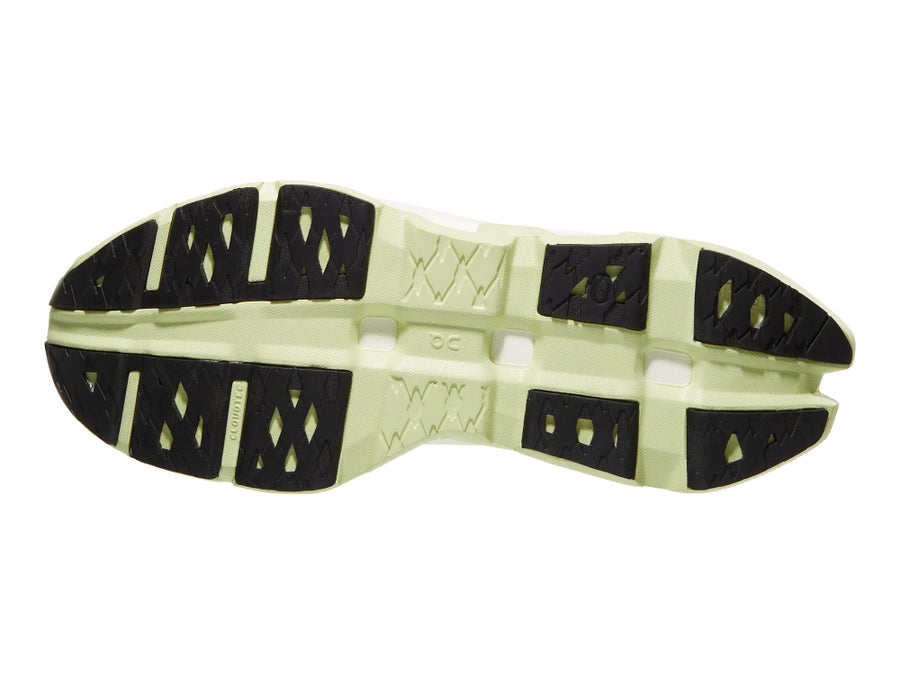

  • on-cloudmonster-3-hyper sole product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (33)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 59 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop6 mmStatedMediumSpec listingDoctors of Running2026-10-04
Heel stack45 mmStatedMediumSpec listingDoctors of Running2026-10-04
Heel stack46 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack40 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack39 mmStatedMediumSpec listingDoctors of Running2026-10-04
Weight272 gStatedMediumSpec listingDoctors of Running2026-10-04
Weight264 gStatedMediumSpec listingRunning Warehouse2026-10-04
Rocker apex64.2 %est.LowSide photoRunning Warehouse2026-10-04
Rocker apex63.2 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius43 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius43 %est.MediumSide photoRunning Warehouse2026-10-04
Rocker rise angle29 degest.MediumSide photoRunning Warehouse2026-10-04
Rocker rise angle29 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe53 degest.MediumSide photoRunning Warehouse2026-10-04
Rocker angle at toe54 degest.MediumSide photoRunning Warehouse2026-10-04
Toe tip over ground44 mmest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground45 mmest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset74.3 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset74 %est.MediumSide photoRunning Warehouse2026-10-04
Toe spring (relative)20.4 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)20.7 %est.MediumSide photoRunning Warehouse2026-10-04
Heel bevel length10.6 %est.MediumSide photoRunning Warehouse2026-10-04
Heel bevel length11.2 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel height22 mmest.LowSide photoRunning Warehouse2026-10-04
Heel bevel height22 mmest.LowSide photoRunning Warehouse2026-10-04
Midsole width (forefoot)118.6 mmMeasuredMediumLab testRunRepeat2026-10-04
Midsole width (heel)94.8 mmMeasuredMediumLab testRunRepeat2026-10-04
Toe box shape73 %est.LowTop photoRunning Warehouse2026-10-04
Toe box shape74 %est.LowTop photoRunning Warehouse2026-10-04
Interior forefoot width95 mmMeasuredMediumLab testRunRepeat2026-10-04
Toebox width72.8 mmMeasuredMediumLab testRunRepeat2026-10-04
Longitudinal stiffness70 DerivedMediumLab flex testRunRepeat2026-10-04
Midsole firmness64 DerivedMediumLab durometerRunRepeat2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=c4e193589c1fc493a7550fc3f1ffdead356022072cefa31ac4bbba6dff37b5a0; 0.3
  • Running Warehouse: sha256=c664050a290c6fd9c1b7b8dc5db9b534e7e196d9f8147ee2e7c2f7221dd52f7d; 0.3
  • Running Warehouse: sha256=6306b277f0a7412304c4c5ce029402a12b4d9dda3e4d7311107bfc8481f1660b; 0.3
  • Running Warehouse: sha256=65c33ca7f1423d464ba3b507a478334a1caf040442549426a3a4a4cbbd104716; 0.3
  • Running Warehouse: sha256=518ed4d7a1d3d835bbecf7b9427f4056a0d8c6a94b3161bc1c0e66b620ebccfb; 0.1
  • Running Warehouse: sha256=3406fd265caf7479860881a18ecebbd350db0539888eed74b3523b80a3e97137; 0.1

Shoes with similar geometry

Compare these →

Closest current models from other lines by stack, drop, rocker, toe height, stiffness, firmness, weight and width, whichever both shoes have.

Side profile illustration of the ASICS Gel-Nimbus 28
ASICS
Gel-Nimbus 28
Max cushion · No plate
Drop
8 mm
Heel
42.5 mm
Toe rocker
34%

vs this shoe: 2 mm more drop

Side profile illustration of the Adidas Hyperboost Edge
Adidas
Hyperboost Edge
Max cushion · No plate
Drop
6 mm
Heel
45 mm
Toe rocker
34%

vs this shoe: softer foam · 20 g lighter

Side profile illustration of the Hoka Mach X 3
Hoka
Mach X 3
Tempo · Pebax plate
Drop
5 mm
Heel
46 mm
Toe rocker
35%

vs this shoe: more flexible · softer foam

Side profile illustration of the Mizuno Wave Sky 9
Mizuno
Wave Sky 9
Max cushion · No plate
Drop
6 mm
Heel
44 mm
Toe rocker
33%

vs this shoe: stiffer · 20 g heavier
