ShoeGeometry

Mizuno Sky Prime

Max cushionRoadNo plate2026Men'sCurrent

At a glance

Heel-to-toe drop
6 mmStated
Stack, heel / forefoot
47 / 41 mmStated
Weight
295 gStated
Plate
No plate
Toe rocker
33 % of lengthest.photos 32–36 %
Heel bevel
11.8 % of lengthest.photos 12–12 %
Stiffness / firmness
not measured yet
Primary foam
MIZUNO ENERZY NXT+ (PEBA) over ENERZY NXT (EVA)

How it compares

  • Mizuno Sky Prime's heel-to-toe drop is 6 mm, about the catalogue median of 6 mm (25% of the 179 other current shoes are lower).
  • Mizuno Sky Prime's heel stack is 47 mm, thicker than the catalogue median of 38 mm (98% of the 176 other current shoes are thinner).
  • Mizuno Sky Prime's forefoot stack is 41 mm, thicker than the catalogue median of 31.5 mm (98% of the 171 other current shoes are thinner).
  • Mizuno Sky Prime's weight is 295 g, heavier than the catalogue median of 269 g (77% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
6mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Heel stack
Manufacturer stated
47mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Forefoot stack
Manufacturer stated
41mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Weight
Manufacturer stated
295g
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Plate
No plate
Primary foam
MIZUNO ENERZY NXT+ (PEBA) over ENERZY NXT (EVA)
List price
$200

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 35 %Mizuno Sky Prime: heel 47 mm, forefoot 41 mm (drop 6 mm); toe rocker 33 % of length, radius 35 % of length; heel bevel 12 % of length, 27 mm high at the back, ending about under the heel bone.47 mm41 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 12 % of length (foam compresses more under load), ending about under the heel boneheel bevel 12 %Toe rocker: the front 33 % of the length curves up (the curve leaves the ground 67 % of length from the heel)toe rocker 33 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. Mizuno Sky Prime: heel 47 mm, forefoot 41 mm (drop 6 mm); toe rocker 33 % of length, radius 35 % of length; heel bevel 12 % of length, 27 mm high at the back, ending about under the heel bone. Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
33%

4 photos range 32–36 %; shown is one of the two that agree most closely.

MediumSide photosource
Rocker radius
AI estimated
35%

4 photos range 34–44 %; shown is one of the two that agree most closely.

MediumSide photosource
Rocker rise angle
AI estimated
32deg

4 photos range 30–35 deg; shown is one of the two that agree most closely.

MediumSide photosource
Toe tip over ground
AI estimated
42mm*

4 photos range 42–46 mm; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

MediumSide photosource
Rocker angle at toe
AI estimated
65deg

4 photos range 61–66 deg; shown is one of the two that agree most closely.

MediumSide photosource
Visible rocker lift onset
AI estimated
78%

4 photos range 74.4–78 %; shown is one of the two that agree most closely.

MediumSide photosource
Toe spring (relative)
AI estimated
20.7%

4 photos range 20.7–22.2 %; shown is one of the two that agree most closely.

MediumSide photosource
Heel bevel length
AI estimated
11.8%

4 photos range 11.7–12 %; shown is the average of the two that agree most closely.

MediumSide photosource
Heel bevel height
AI estimated
27mm

4 photos range 27–28 mm; shown is the average of the two that agree most closely.

MediumSide photosource

How it compares

Appears in:Max cushionHigh stack

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • Mizuno Sky Prime Review (2026) - Doctors of RunningreviewDoctors of Runningaccessed 2026-10-04open ↗
  • Mizuno Sky Prime Men's Shoes GF White/Orange.com | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗

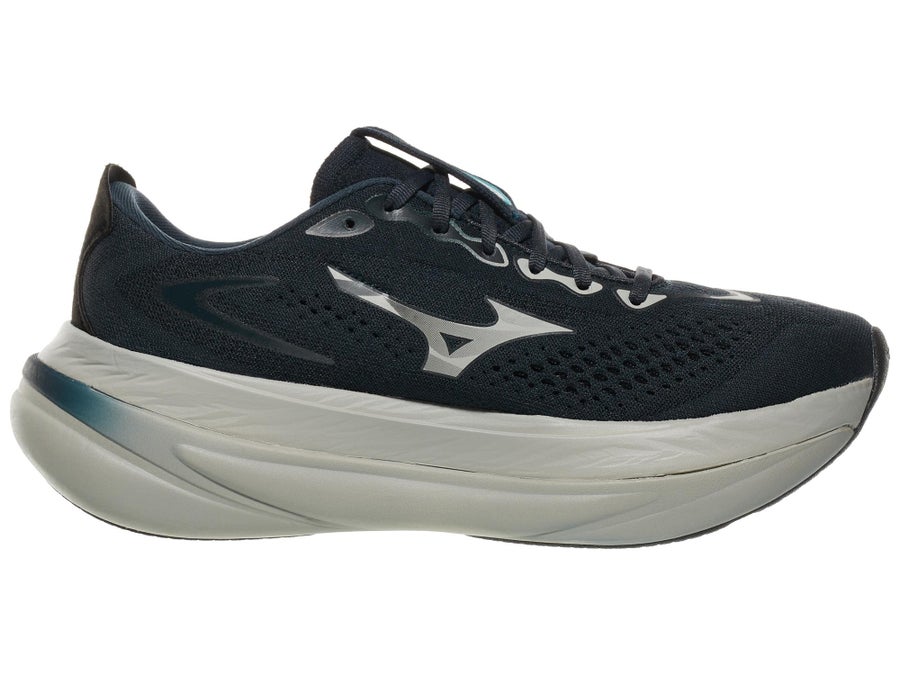

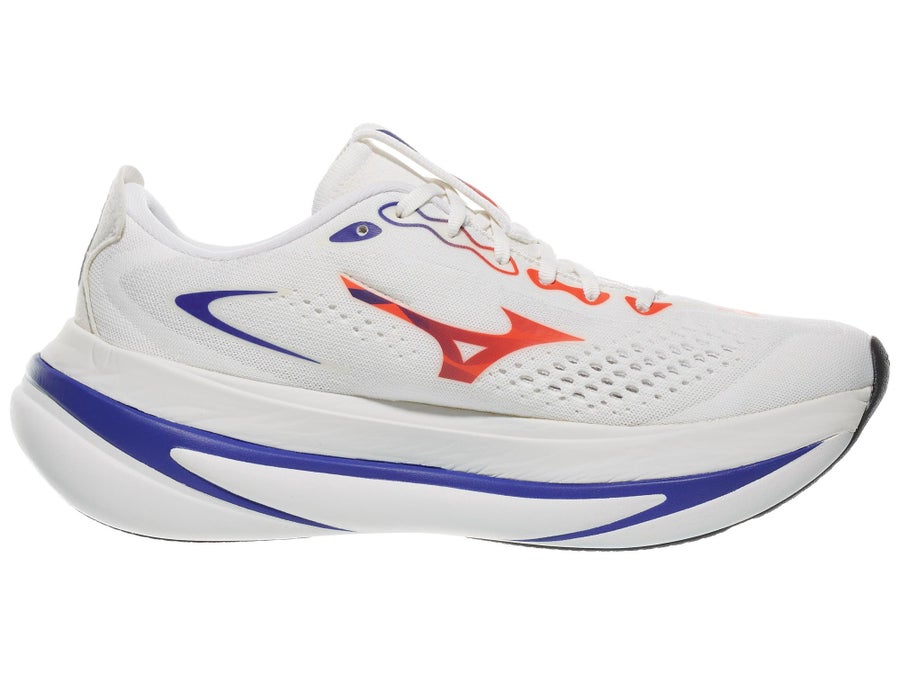

  • mizuno-sky-prime lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗

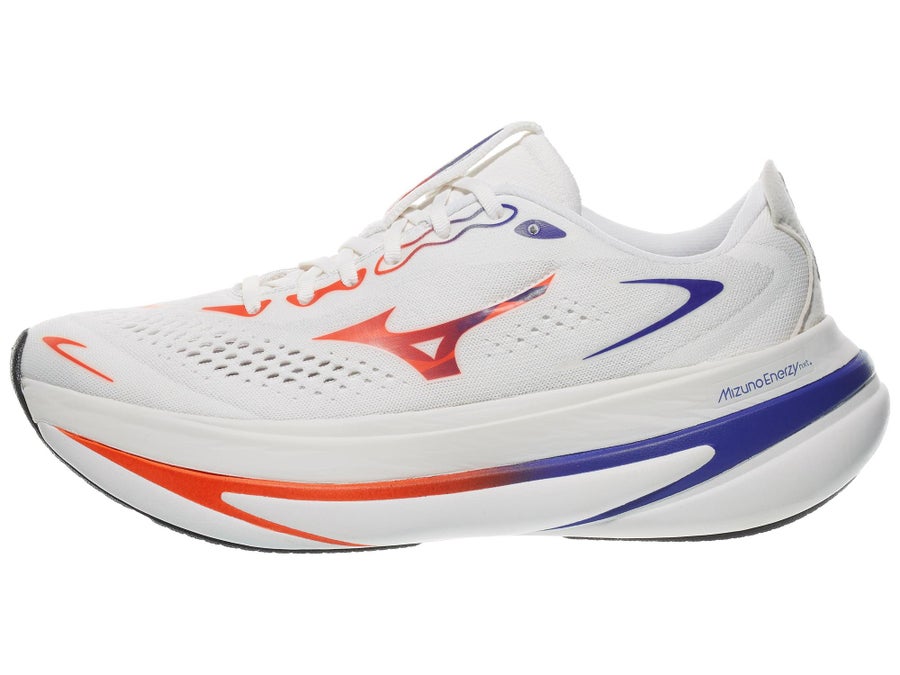

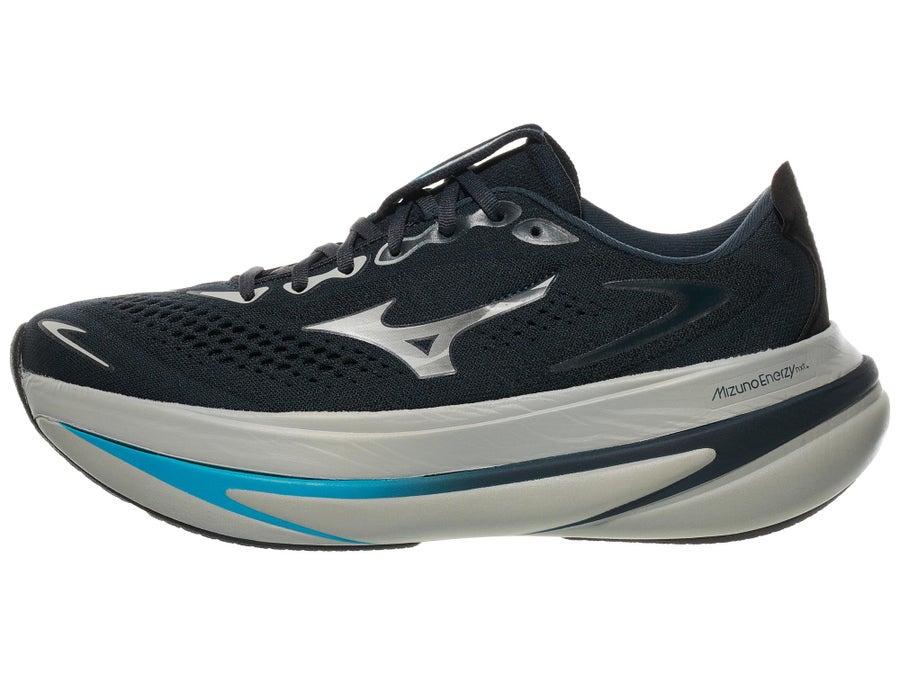

  • mizuno-sky-prime medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • mizuno-sky-prime medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • mizuno-sky-prime lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (26)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 57 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop6 mmStatedMediumSpec listingDoctors of Running2026-10-04
Heel stack46 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Heel stack47 mmStatedMediumSpec listingDoctors of Running2026-10-04
Forefoot stack40 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack41 mmStatedMediumSpec listingDoctors of Running2026-10-04
Weight292 gStatedMediumSpec listingRunning Warehouse2026-10-04
Weight295 g (size 9)StatedMediumSpec listingDoctors of Running2026-10-04
Weight295 gStatedMediumSpec listingDoctors of Running2026-10-04
Rocker apex67.5 %est.MediumSide photoRunning Warehouse2026-10-04
Rocker apex67.6 %est.MediumSide photoRunning Warehouse2026-10-04
Rocker radius35 %est.MediumSide photoRunning Warehouse2026-10-04
Rocker radius34 %est.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle32 degest.MediumSide photoRunning Warehouse2026-10-04
Rocker rise angle33 degest.MediumSide photoRunning Warehouse2026-10-04
Toe tip over ground42 mmest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground42 mmest.MediumSide photoRunning Warehouse2026-10-04
Rocker angle at toe65 degest.MediumSide photoRunning Warehouse2026-10-04
Rocker angle at toe65 degest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset77.9 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset78 %est.MediumSide photoRunning Warehouse2026-10-04
Toe spring (relative)20.7 %est.MediumSide photoRunning Warehouse2026-10-04
Toe spring (relative)20.9 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length11.7 %est.MediumSide photoRunning Warehouse2026-10-04
Heel bevel length11.8 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel height27 mmest.MediumSide photoRunning Warehouse2026-10-04
Heel bevel height27 mmest.LowSide photoRunning Warehouse2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=a5baa8b178b9ad77fab77cabed988df920e9d41726423e485a426cddd92d041d; 0.3
  • Running Warehouse: sha256=083d28d32697259c1f21c243ed77da9531920fc082119275c0a7d4b4a5d9fa73; 0.3
  • Running Warehouse: sha256=58b37305754df20dbee629296609c8f7fbc50649c16e95de29ab8064ba6b711f; 0.3
  • Running Warehouse: sha256=3c2cbd2d8926075882adaba8eccfe63d7c73d337861677647e2ec6a2eaef4a71; 0.3
