ShoeGeometry

New Balance Fresh Foam X More v6

Max cushionRoadNo plate2025Men'sCurrent

Specifications

Heel-to-toe drop
Manufacturer stated
4mm
Mediumregex_specs_v2source
Heel stack
Manufacturer stated
42mm
Mediumregex_specs_v2source
Forefoot stack
Manufacturer stated
38mm
Mediumregex_specs_v2source
Weight
Manufacturer stated
312g
Mediumregex_specs_v2source
Plate
No plate
Primary foam
Fresh Foam X
List price
$160

Plate, foam and price from New Balance Fresh Foam More v6 Review: Behold, The Queen of Cush | Believe in the Run.

Geometry

Catalogue average: heel 39 mm, forefoot 32 mm, rocker apex 65 %New Balance Fresh Foam X More v6: heel 42 mm, forefoot 38 mm (drop 4 mm); rocker apex 72 % of length, radius 34 % of length.42 mm38 mmRocker apex at 72 % of length from the heelrocker apex 72 %toeheel
Forefoot: rocker apex later earlierRear: heel stack lower higher not measured
Dashed: average of the catalogue
Drawn from the measured values, to scale for a 290 mm shoe; the grey upper is a generic outline, not this shoe’s. New Balance Fresh Foam X More v6: heel 42 mm, forefoot 38 mm (drop 4 mm); rocker apex 72 % of length, radius 34 % of length.

Percent values are relative to shoe length so they compare across images and sizes; millimetre values are lab measurements from the cited source. See how rocker geometry is defined.

Rocker apex
AI estimated
71.7%
Lowvision_rocker · 0.3-bc1source
Rocker radius
AI estimated
34%
Lowvision_rocker · 0.3-bc1source
Rocker rise angle
AI estimated
27deg
Lowvision_rocker · 0.3-bc1source
Rocker angle at toe
AI estimated
67deg
Lowvision_rocker · 0.3-bc1source
Toe tip over ground
AI estimated
41mm

Average of two photos 0 mm apart.

Lowvision_rocker · 0.3-bc1source
Visible rocker lift onset
AI estimated
80.5%
Lowvision_rocker · 0.3-bc1source
Toe spring (relative)
AI estimated
19%
Lowvision_rocker · 0.3-bc1source
Midsole width (forefoot)
Externally measured
122.5mm
Mediumlab_table_widths · 1source
Midsole width (heel)
Externally measured
102mm
Mediumlab_table_widths · 1source
Interior forefoot width
Externally measured
93.5mm
Mediumlab_table_widths · 1source
Toebox width
Externally measured
71.3mm
Mediumlab_table_widths · 1source

Stiffness

Longitudinal stiffness
Derived
51/ 100
Mediumlab_bending_force_score · 1source
Midsole firmness
Derived
27/ 100
Mediumlab_midsole_firmness_score · 1source

How it compares

  • New Balance Fresh Foam X More v6's heel-to-toe drop is 4 mm, lower than the catalogue median of 7 mm (4% of the 91 other current shoes are lower).
  • New Balance Fresh Foam X More v6's heel stack is 42 mm, thicker than the catalogue median of 39 mm (74% of the 91 other current shoes are thinner).
  • New Balance Fresh Foam X More v6's forefoot stack is 38 mm, thicker than the catalogue median of 32 mm (90% of the 91 other current shoes are thinner).
  • New Balance Fresh Foam X More v6's weight is 312 g, heavier than the catalogue median of 268 g (89% of the 82 other current shoes are lighter).

Appears in:Low dropMax cushionHigh stackWide platform

Compare:New Balance Fresh Foam X More v6 vs Hoka Bondi 9New Balance Fresh Foam X More v6 vs Adidas Hyperboost Edge

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • New Balance Fresh Foam X More v6 Men's Shoes Grey/TrRed | Running Warehouseretailerrunningwarehouse.comaccessed 2026-10-03open ↗
  • New Balance Fresh Foam More v6 Review: Behold, The Queen of Cush | Believe in the Runreviewbelieveintherun.comaccessed 2026-10-03open ↗

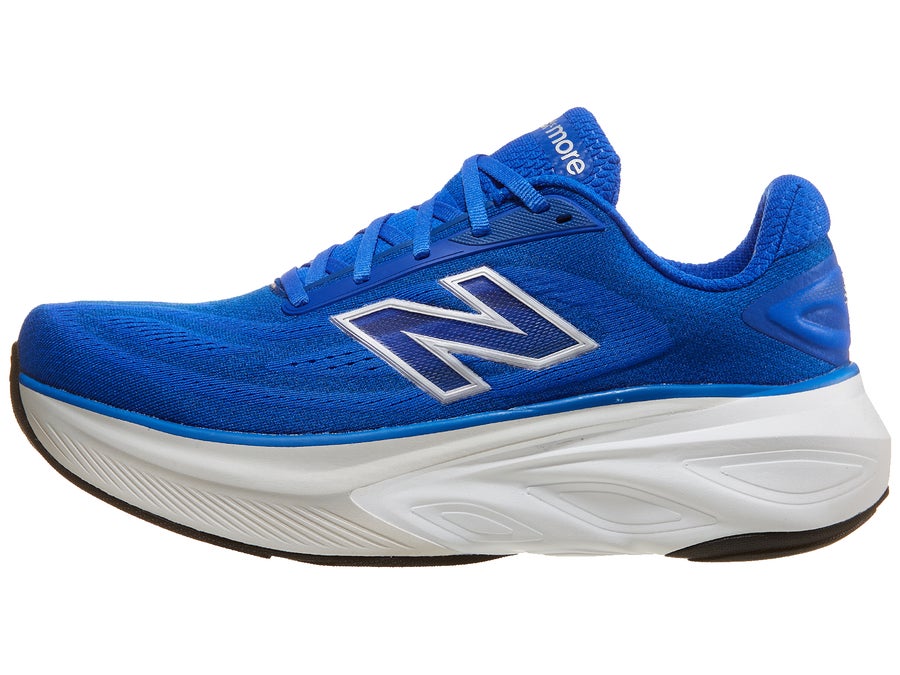

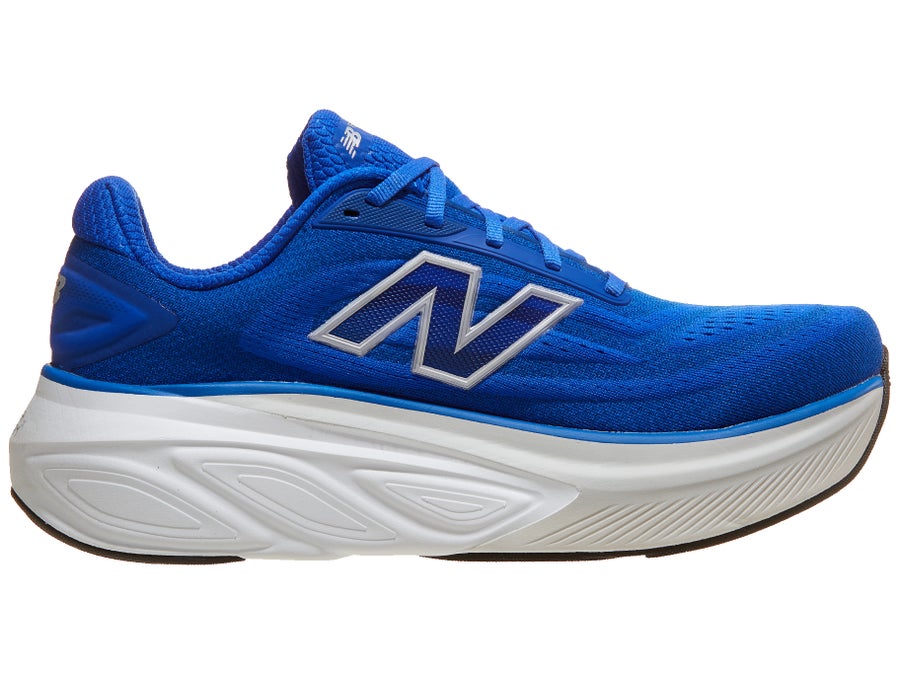

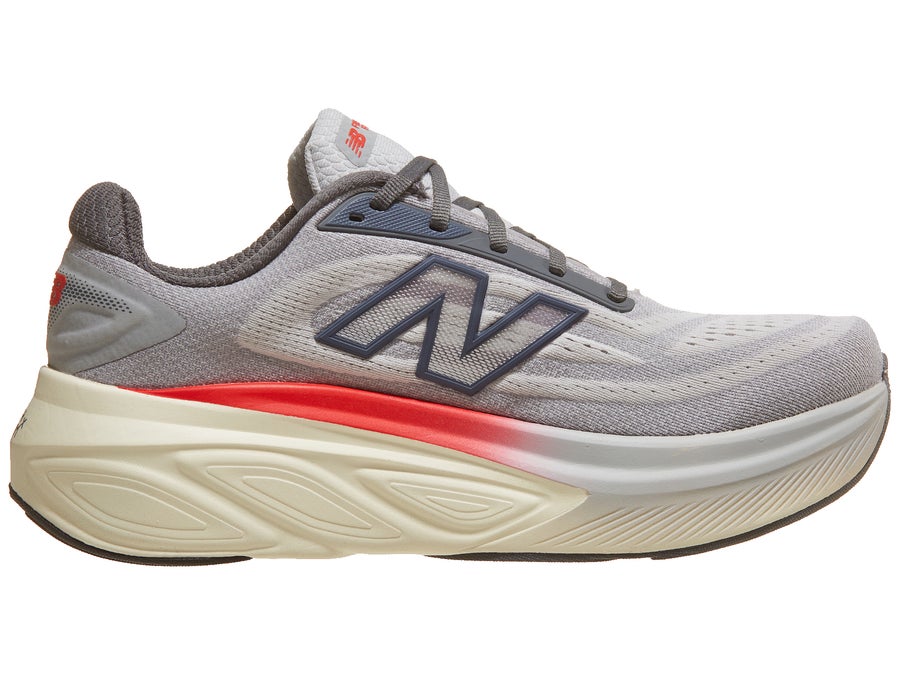

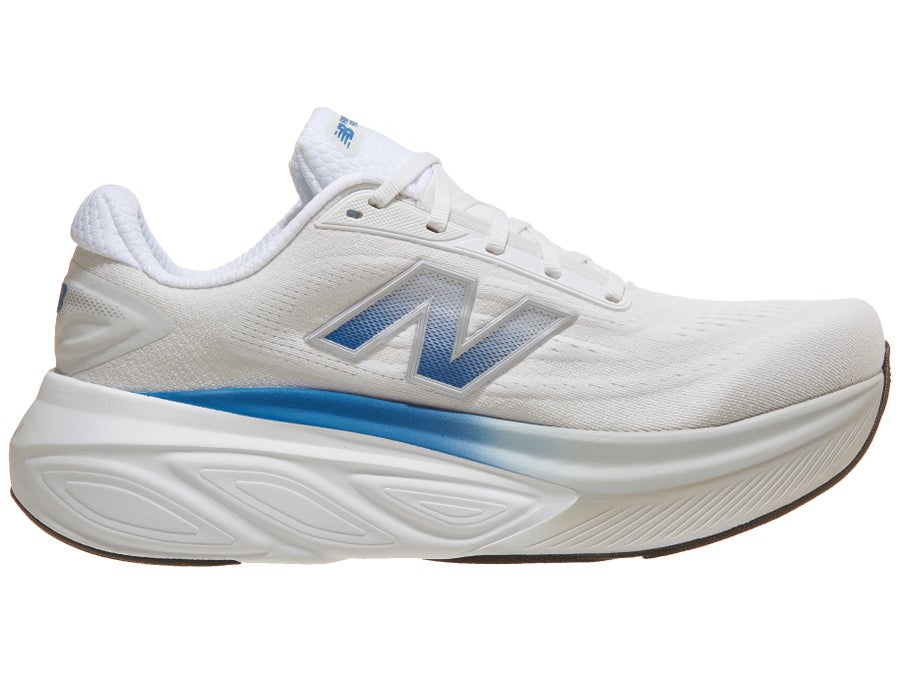

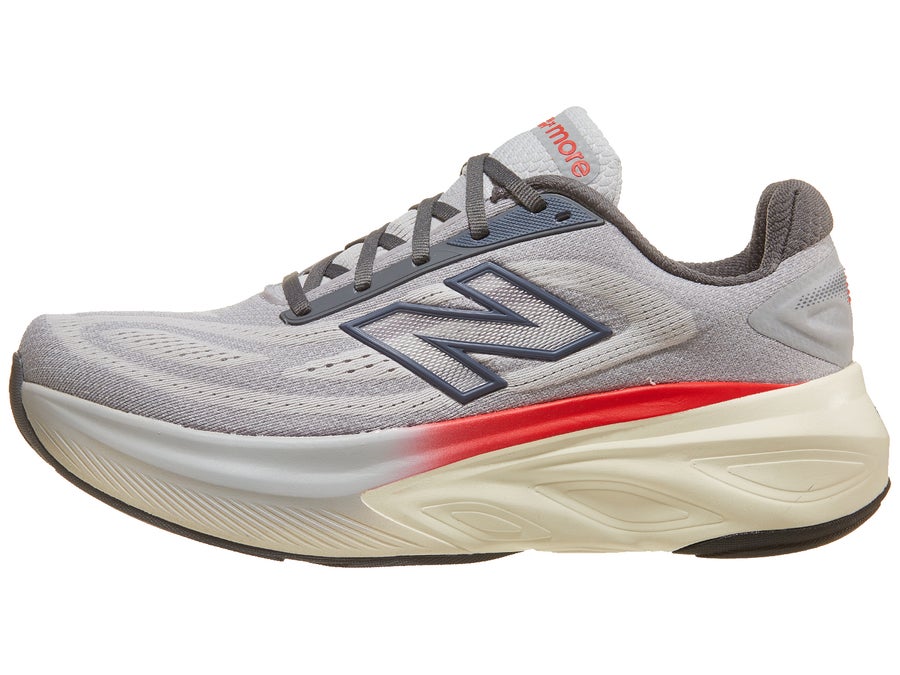

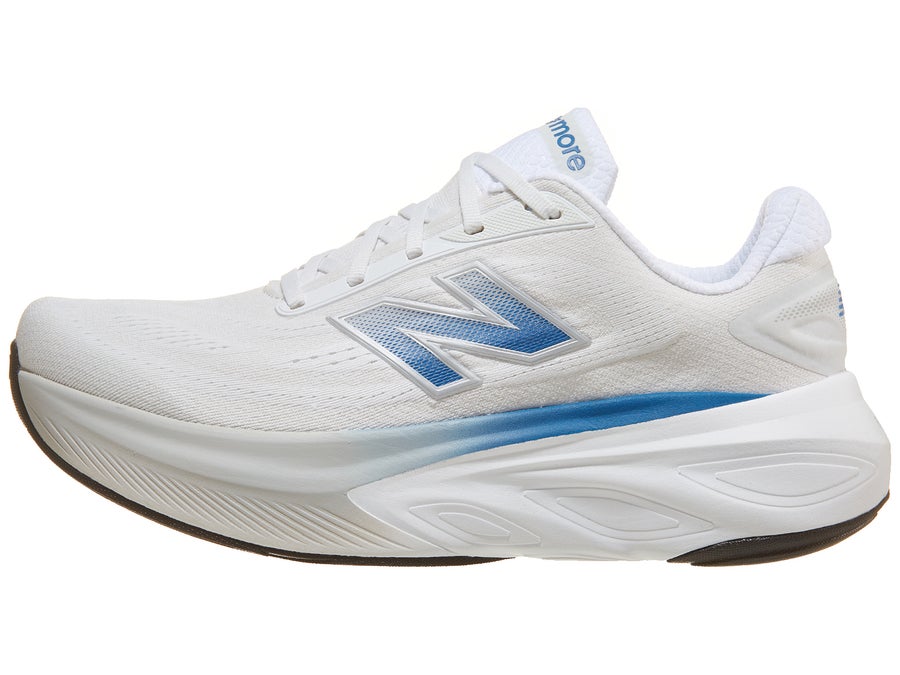

  • new-balance-fresh-foam-x-more-v6 medial product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=4e4ba1099f61e0b2316a23a387a2ad44d469952a239a72ae557dac7e5b0b1829; 0.3
  • new-balance-fresh-foam-x-more-v6 medial product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=082ffe3405a4dd59a59feaf9de13e4445192048b881e37f4d9a718e8f9b86ba5; 0.3
  • new-balance-fresh-foam-x-more-v6 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=684ef7e7cf3154333af9463e43a80dea5691e0434bd9eee9bbf17dcdf6e16e2c; 0.3
  • new-balance-fresh-foam-x-more-v6 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=9486f6f8b456a09f1465efef0128e113c17b0c2a3b296d3bd462dcc04d258f61; 0.3
  • new-balance-fresh-foam-x-more-v6 medial product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=9e1fb4221d63ddb0fbc1d1a2aa27bd86f6413332c3c25a8741eafe8ea8465ba9; 0.3
  • new-balance-fresh-foam-x-more-v6 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=d26afbc2dbc8c4e3bf13f4d5efddacffe94d08f1b14059d9f07c61c1a1bef84b; 0.3
  • Cut in half: New Balance Fresh Foam X More v6 Review (2025) | RunRepeatlabRunRepeat - Athletic shoe reviewsaccessed 2026-10-03open ↗

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 84 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop4 mmStatedMediumregex_specs_v2runningwarehouse.com2026-10-03
Heel-to-toe drop4 mmStatedMediumregex_specs_v2believeintherun.com2026-10-03
Heel stack42 mmStatedMediumregex_specs_v2runningwarehouse.com2026-10-03
Forefoot stack38 mmStatedMediumregex_specs_v2runningwarehouse.com2026-10-03
Weight312 gStatedMediumregex_specs_v2runningwarehouse.com2026-10-03
Weight306 g (US M9)StatedMediumregex_specs_v2believeintherun.com2026-10-03
Rocker apex71.9 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker apex71.7 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker radius32 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker radius34 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker rise angle27 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker rise angle27 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker angle at toe67 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe tip over ground41 mmest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker angle at toe67 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe tip over ground41 mmest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Visible rocker lift onset80.5 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Visible rocker lift onset80.5 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe spring (relative)19.3 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe spring (relative)19 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Midsole width (forefoot)122.5 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Midsole width (heel)102 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Interior forefoot width93.5 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Toebox width71.3 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Longitudinal stiffness51 DerivedMediumlab_bending_force_score 1RunRepeat - Athletic shoe reviews2026-10-03
Midsole firmness27 DerivedMediumlab_midsole_firmness_score 1RunRepeat - Athletic shoe reviews2026-10-03

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported.

Shoes with similar geometry

Compare these →

Closest current models from other lines by stack, drop, rocker, toe height, stiffness, firmness, weight and width, whichever both shoes have.

Side profile illustration of the Brooks Glycerin Max 2
Brooks
Glycerin Max 2
Max cushion · No plate
Drop
6 mm
Heel
45 mm
Apex
68%

vs this shoe: earlier rocker · stiffer · 5 mm higher toe

Side profile illustration of the Hoka Gaviota 6
Hoka
Gaviota 6
Stability · No plate
Drop
6 mm
Heel
39 mm
Apex
66%

vs this shoe: earlier rocker · 29 g lighter · firmer foam

Side profile illustration of the Mizuno Wave Rider 30
Mizuno
Wave Rider 30
Daily trainer · TPU plate
Drop
8 mm
Heel
42.5 mm
Apex
72%

vs this shoe: 46 g lighter · 4 mm more drop · firmer foam

Side profile illustration of the New Balance Fresh Foam X 860 v15
New Balance
Fresh Foam X 860 v15
Stability · Plate unknown
Drop
8 mm
Heel
43 mm
Apex
66%

vs this shoe: earlier rocker · 4 mm more drop · 23 g heavier
