ShoeGeometry

Nike Wildhorse 10

TrailTrailRock plate2025Men'sCurrent

At a glance

Heel-to-toe drop
9.5 mmStated
Stack, heel / forefoot
38 / 28.5 mmStated
Weight
311 gStatedMen's US 10
Plate
Rock plate
Toe rocker
32 % of lengthest.photos 29–37 %
Heel bevel
not measured yet
Stiffness / firmness
37 / 48 of 100Derived
Primary foam
ReactX

How it compares

  • Nike Wildhorse 10's heel-to-toe drop is 9.5 mm, higher than the catalogue median of 6 mm (89% of the 179 other current shoes are lower).
  • Nike Wildhorse 10's heel stack is 38 mm, about the catalogue median of 38 mm (43% of the 176 other current shoes are thinner).
  • Nike Wildhorse 10's forefoot stack is 28.5 mm, thinner than the catalogue median of 31.5 mm (27% of the 171 other current shoes are thinner).
  • Nike Wildhorse 10's weight is 311 g, heavier than the catalogue median of 269 g (91% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
9.5mm
HighSpec listingsource
Heel stack
Manufacturer stated
38mm
MediumSpec listingbrand figure, reported by Running Warehousesource
Forefoot stack
Manufacturer stated
28.5mm
MediumSpec listingbrand figure, reported by Running Warehousesource
Weight
Manufacturer stated
311g
HighSpec listingMen's US 10source
Plate
Rock plate
Primary foam
ReactX
List price
$165

Plate, foam and price from Nike Wildhorse 10 Men's Trail Running Shoes. Nike.com.

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 35 %Nike Wildhorse 10: heel 38 mm, forefoot 29 mm (drop 10 mm); toe rocker 32 % of length, radius 50 % of length.38 mm29 mmToe rocker: the front 32 % of the length curves up (the curve leaves the ground 68 % of length from the heel)toe rocker 32 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
  • Heel bevel not measured: generic rounding drawn
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. Nike Wildhorse 10: heel 38 mm, forefoot 29 mm (drop 10 mm); toe rocker 32 % of length, radius 50 % of length.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
32%

4 photos range 29–37 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker radius
AI estimated
50%

4 photos range 39–53 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker rise angle
AI estimated
26deg

4 photos range 24–27 deg; shown is one of the two that agree most closely.

LowSide photosource
Rocker angle at toe
AI estimated
52deg

4 photos range 51–64 deg; shown is one of the two that agree most closely.

LowSide photosource
Toe tip over ground
AI estimated
30mm*

4 photos range 30–39 mm; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

LowSide photosource
Visible rocker lift onset
AI estimated
77.6%

4 photos range 77–80.7 %; shown is one of the two that agree most closely.

LowSide photosource
Toe spring (relative)
AI estimated
13.7%

4 photos range 13.7–17.2 %; shown is one of the two that agree most closely.

LowSide photosource
Midsole width (forefoot)
Externally measured
120.6mm
MediumLab testsource
Midsole width (heel)
Externally measured
93.8mm
MediumLab testsource
Interior forefoot width
Externally measured
96.9mm
MediumLab testsource
Toebox width
Externally measured
75.4mm
MediumLab testsource

Stiffness

Longitudinal stiffness
Derived
37/ 100

Lab reading: 15.0 N, force to bend the shoe 30° (lab bending test); the score is our 0–100 rescaling of it.

MediumLab flex testsource
Midsole firmness
Derived
48/ 100

Lab reading: 33.0 Asker C, midsole durometer reading (higher = firmer); the score is our 0–100 rescaling of it.

MediumLab durometersource

How it compares

Appears in:Wide platform

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • Nike Wildhorse 10 Men's Trail Running Shoes. Nike.commanufacturerNike.comaccessed 2026-10-04open ↗
  • Nike Wildhorse 10 Men's Shoes Black/Grey/Anthracite | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗

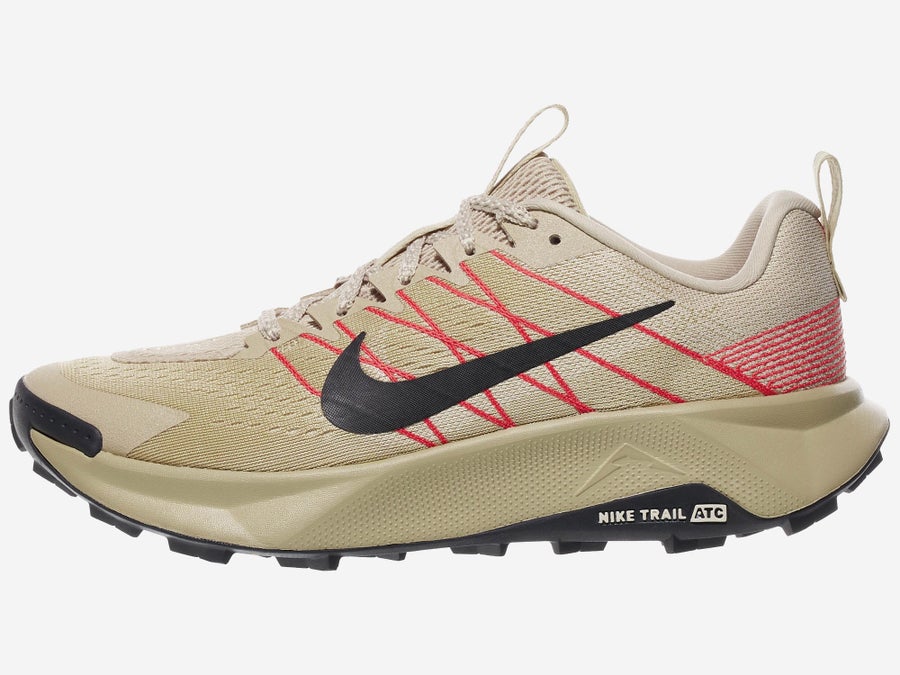

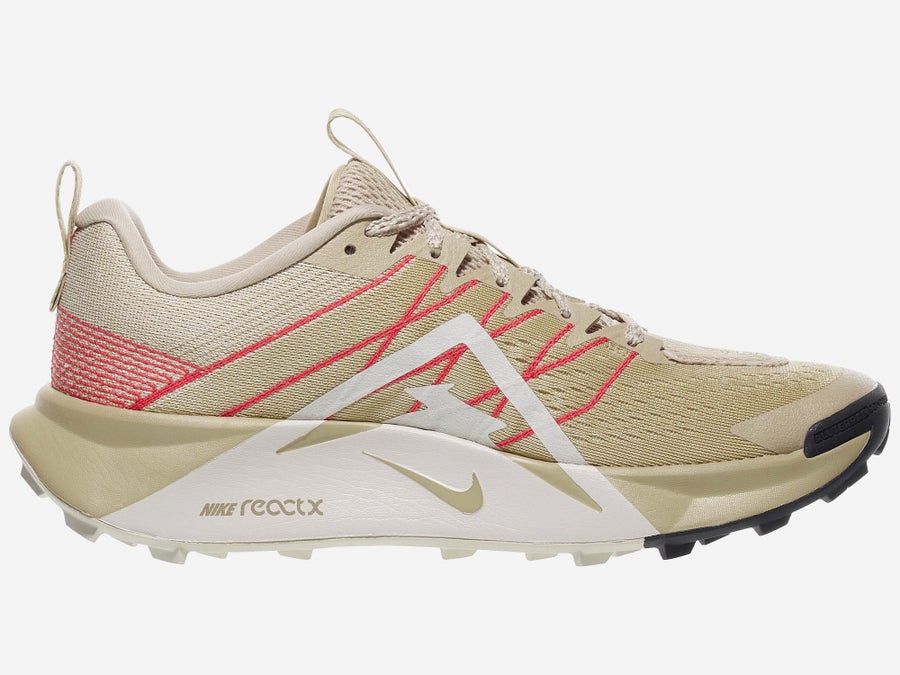

  • nike-wildhorse-10 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • nike-wildhorse-10 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗

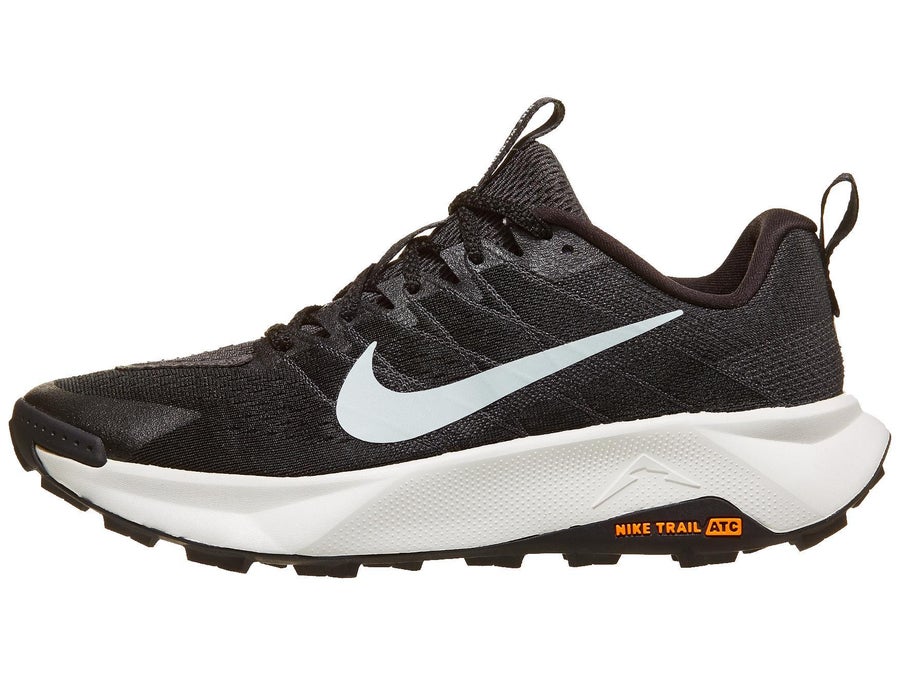

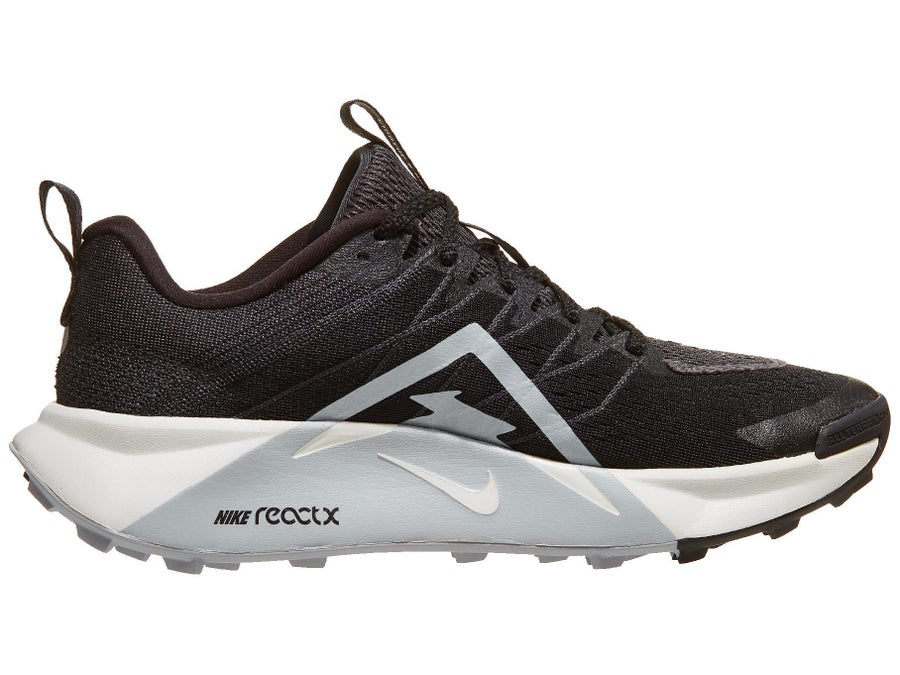

  • nike-wildhorse-10 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • nike-wildhorse-10 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • Cut in half: Nike Wildhorse 10 Review (2025) | RunRepeatlabRunRepeataccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (26)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 65 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop9 mmStatedMediumSpec listingNike.com2026-10-04
Heel-to-toe drop9.5 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Heel-to-toe drop9.5 mmStatedHighSpec listingNike.com2026-10-04
Heel stack38 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack28.5 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Weight311 g (Men's US 10)StatedHighSpec listingNike.com2026-10-04
Rocker apex66.8 %est.LowSide photoRunning Warehouse2026-10-04
Rocker apex68 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius47 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius50 %est.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle25 degest.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle26 degest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground30 mmest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground30 mmest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe52 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe52 degest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset77.6 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset77.7 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)13.7 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)14 %est.LowSide photoRunning Warehouse2026-10-04
Midsole width (forefoot)120.6 mmMeasuredMediumLab testRunRepeat2026-10-04
Midsole width (heel)93.8 mmMeasuredMediumLab testRunRepeat2026-10-04
Interior forefoot width96.9 mmMeasuredMediumLab testRunRepeat2026-10-04
Toebox width75.4 mmMeasuredMediumLab testRunRepeat2026-10-04
Longitudinal stiffness37 DerivedMediumLab flex testRunRepeat2026-10-04
Midsole firmness48 DerivedMediumLab durometerRunRepeat2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=d92ed8cca213eafc1ce18817f3b04dda92da3e447aecee78e9ff9aaa313e3d11; 0.3
  • Running Warehouse: sha256=632ea0b7aa5915d74483760d11d12f5b0cd8e0ed0f068f6aa6cdd5311fa165c4; 0.3
  • Running Warehouse: sha256=6399627f2f7dc66ee3dc649a5df00e844bd27c868fe90afd9d27a86e3c747291; 0.3
  • Running Warehouse: sha256=d754a6e04aff83080ec1e41b9e3c1908d6cc5c81347fc3ba550e1d0841b31fed; 0.3

Shoes with similar geometry

Compare these →

Closest current models from other lines by stack, drop, rocker, toe height, stiffness, firmness, weight and width, whichever both shoes have.

Side profile illustration of the Saucony Ride TR3
Saucony
Ride TR3
Road/trail hybrid · No plate
Drop
8 mm
Heel
37 mm
Toe rocker
32%

vs this shoe: 28 g lighter

Side profile illustration of the Mizuno Neo Accera
Mizuno
Neo Accera
Trail · Rock plate
Drop
8 mm
Heel
41 mm
Toe rocker
33%

vs this shoe: 25 g lighter · 3 mm higher heel

Side profile illustration of the Brooks Ghost Trail
Brooks
Ghost Trail
Road/trail hybrid · No plate
Drop
8 mm
Heel
40 mm
Toe rocker
34%

vs this shoe: more flexible

Side profile illustration of the Merrell MTL SpeedArc Peak
Merrell
MTL SpeedArc Peak
Racing · Carbon plate
Drop
6 mm
Heel
— mm
Toe rocker
34%

vs this shoe: 4 mm less drop · 8 mm narrower base
