ShoeGeometry

Adidas Adizero Adios Pro 5

RacingRoadCarbon composite2026Men'sCurrent

At a glance

Heel-to-toe drop
4 mmStated
Stack, heel / forefoot
39 / 35 mmStated
Weight
173 gStatedsize 9
Plate
Carbon composite
Toe rocker
44 % of lengthest.photos 43–45 %
Heel bevel
7.7 % of lengthest.rough estimate; photos 7–9 %
Stiffness / firmness
not measured yet
Primary foam
Lightstrike Pro (PEBA + ATPU dual layer)

How it compares

  • Adidas Adizero Adios Pro 5's heel-to-toe drop is 4 mm, lower than the catalogue median of 6 mm (5% of the 179 other current shoes are lower).
  • Adidas Adizero Adios Pro 5's heel stack is 39 mm, thicker than the catalogue median of 38 mm (55% of the 176 other current shoes are thinner).
  • Adidas Adizero Adios Pro 5's forefoot stack is 35 mm, thicker than the catalogue median of 31.5 mm (76% of the 171 other current shoes are thinner).
  • Adidas Adizero Adios Pro 5's weight is 173 g, lighter than the catalogue median of 269 g (2% of the 167 other current shoes are lighter).
  • Against the Adidas Adizero Adios Pro 4: weight lighter, forefoot stack higher, drop less (details).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
4mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Heel stack
Manufacturer stated
39mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Forefoot stack
Manufacturer stated
35mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Weight
Manufacturer stated
173g
MediumSpec listingbrand figure, reported by Doctors of Runningsize 9source
Plate
Carbon composite
Primary foam
Lightstrike Pro (PEBA + ATPU dual layer)
List price
$275

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 34 %Adidas Adizero Adios Pro 5: heel 39 mm, forefoot 35 mm (drop 4 mm); toe rocker 44 % of length, radius 54 % of length; heel bevel 8 % of length, 24 mm high at the back, ending behind the heel bone (only the back edge is rounded).39 mm35 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 8 % of length (foam compresses more under load), ending behind the heel bone (only the back edge is rounded)heel bevel 8 %Toe rocker: the front 44 % of the length curves up (the curve leaves the ground 56 % of length from the heel)toe rocker 44 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. Adidas Adizero Adios Pro 5: heel 39 mm, forefoot 35 mm (drop 4 mm); toe rocker 44 % of length, radius 54 % of length; heel bevel 8 % of length, 24 mm high at the back, ending behind the heel bone (only the back edge is rounded). Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
44%

4 photos range 43–45 %; shown is their median.

MediumSide photosource
Rocker radius
AI estimated
54%

4 photos range 52–57 %; shown is one of the two that agree most closely.

MediumSide photosource
Rocker rise angle
AI estimated
27deg

4 photos range 27–29 deg; shown is their median.

MediumSide photosource
Toe tip over ground
AI estimated
56mm*

4 photos range 52–58 mm; shown is their median (* the photos disagree by more than usual).

MediumSide photosource
Rocker angle at toe
AI estimated
55deg

4 photos range 53–56 deg; shown is one of the two that agree most closely.

MediumSide photosource
Visible rocker lift onset
AI estimated
70%

4 photos range 68.2–70.4 %; shown is one of the two that agree most closely.

MediumSide photosource
Toe spring (relative)
AI estimated
23%

4 photos range 22–23.9 %; shown is their median.

MediumSide photosource
Heel bevel length
AI estimated
7.7%

4 photos range 6.6–9.2 %; shown is the average of the two that agree most closely.

MediumSide photosource
Heel bevel height
AI estimated
24mm

4 photos range 21–24 mm; shown is the average of the two that agree most closely.

MediumSide photosource
Toe box shape
AI estimated
72%

2 photos range 72–73 %; shown is the average of the two that agree most closely.

LowTop photosource

How it compares

Appears in:Low dropCarbon plateLightweightHigh stackLonger toe rocker

Compare:Adidas Adizero Adios Pro 5 vs Adidas Adizero Adios Pro 4Adidas Adizero Adios Pro 5 vs Altra Vanish Carbon 3Adidas Adizero Adios Pro 5 vs Mizuno Wave Rebellion Pro 3Previous version: Adidas Adizero Adios Pro 4

What changed from the Adidas Adizero Adios Pro 4

Weight lighter, forefoot stack higher, drop less. Compared with the previous version in this catalogue; differences within measurement noise are shown as about the same.

heel boneAdidas Adizero Adios Pro 5: heel 39 mm, forefoot 35 mm (drop 4 mm); toe rocker 44 % of length, radius 54 % of length; heel bevel 8 % of length, 24 mm high at the back, ending behind the heel bone (only the back edge is rounded).Adidas Adizero Adios Pro 5: toe rocker 44 % of lengthAdidas Adizero Adios Pro 4: heel 39 mm, forefoot 33 mm (drop 6 mm); toe rocker 39 % of length, radius 42 % of length; heel bevel 9 % of length, 13 mm high at the back, ending behind the heel bone (only the back edge is rounded).Adidas Adizero Adios Pro 4: toe rocker 39 % of length
  • Adidas Adizero Adios Pro 539/35 mm · toe rocker 44 % · heel bevel 8 %
  • Adidas Adizero Adios Pro 439/33 mm · toe rocker 39 % · heel bevel 9 %
Illustrative profiles, not photographs: drawn from published stack heights and photo estimates of the unloaded shoes on a common length (300 mm), heels aligned, toe to the left; dots mark where each toe rocker starts; the dotted vertical line is under the heel bone (12 % of length), so a heel curve reaching past it is a bevel in front of the heel bone. Dotted lines use typical values where a shoe has no measurement. Exact values are in the table below.
MeasureAdidas Adizero Adios Pro 4Adidas Adizero Adios Pro 5Change
Heel stack39 mm39 mmabout the same
Forefoot stack33 mm35 mmhigher (+2 mm)
Drop6 mm4 mmless (−2 mm)
Weight201 g173 glighter (−28 g)
Toe rocker39.2% of length44% of lengthlonger (+4.8 %)
Toe tip over ground50.5 mm55.8 mmhigher (+5.3 mm)
Rocker rise angle31.2°27.2°flatter (−3.9)
FoamLightstrike Pro (new formulation)Lightstrike Pro (PEBA + ATPU dual layer)naming difference: same foam, described differently by the sources

Full side-by-side comparison →

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • adidas Adizero Adios Pro 5 Review (2026) - Doctors of RunningreviewDoctors of Runningaccessed 2026-10-04open ↗
  • adidas adizero Adios Pro 5 Men's Shoes Turbo/Black/Red | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗

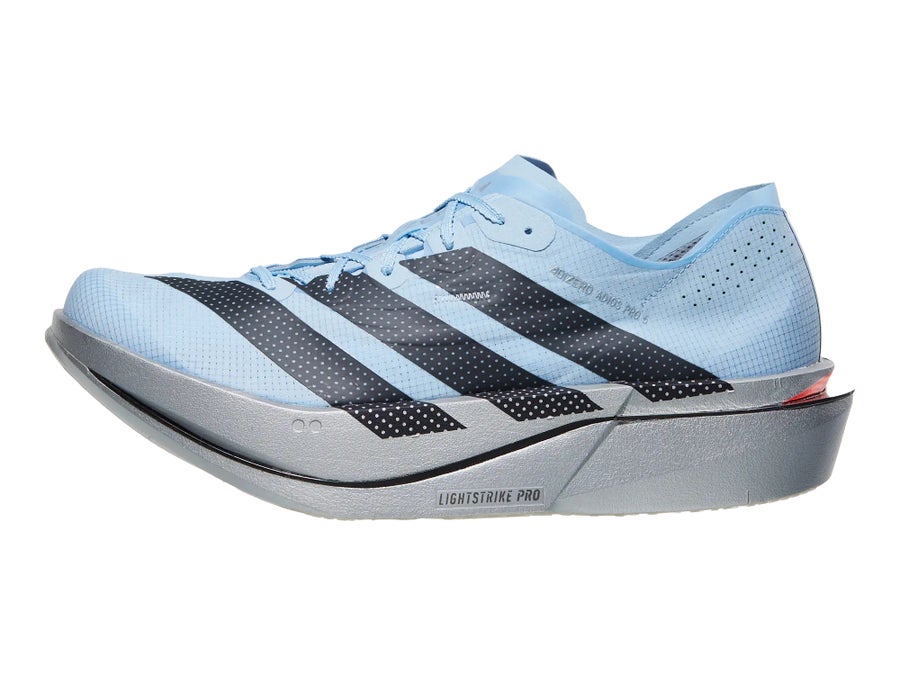

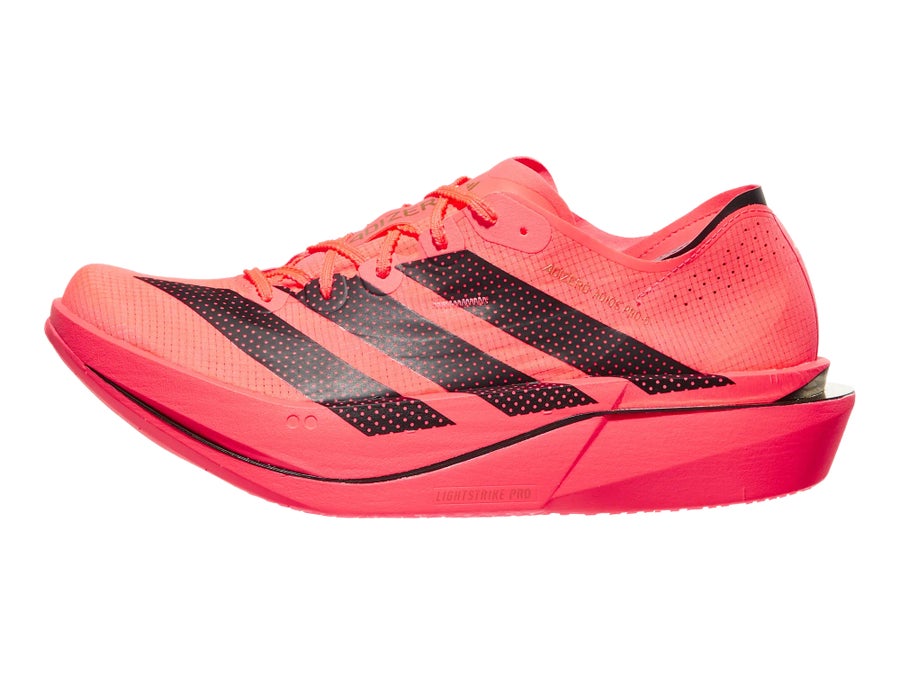

  • adidas-adizero-adios-pro-5 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • adidas-adizero-adios-pro-5 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗

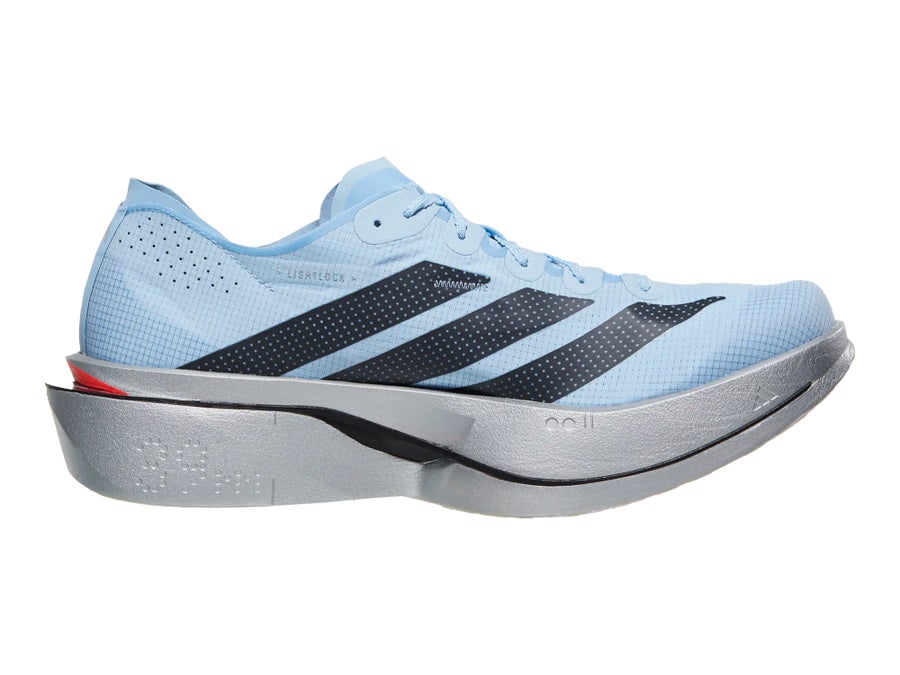

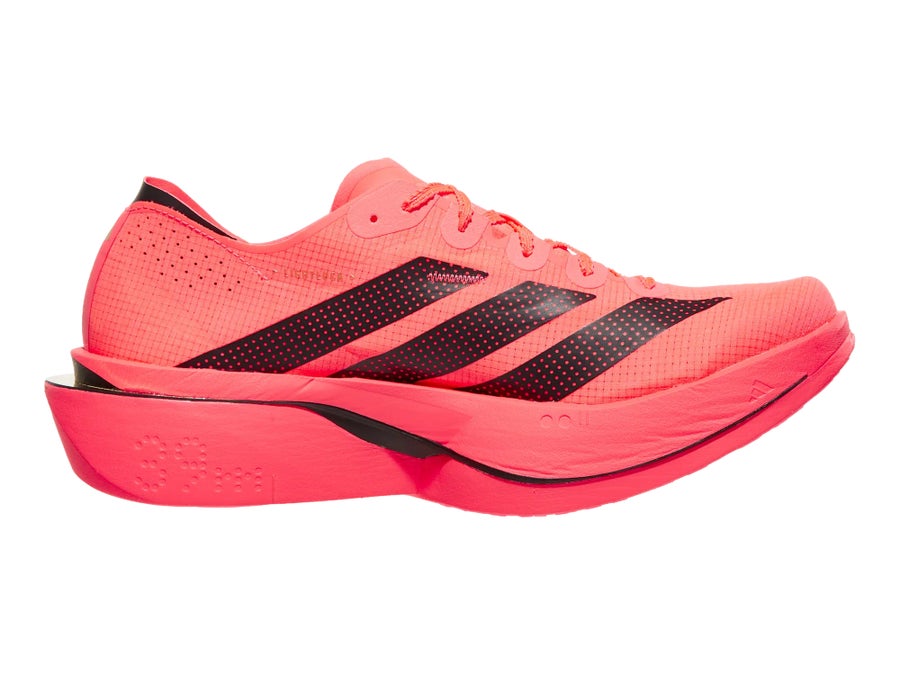

  • adidas-adizero-adios-pro-5 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • adidas-adizero-adios-pro-5 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗

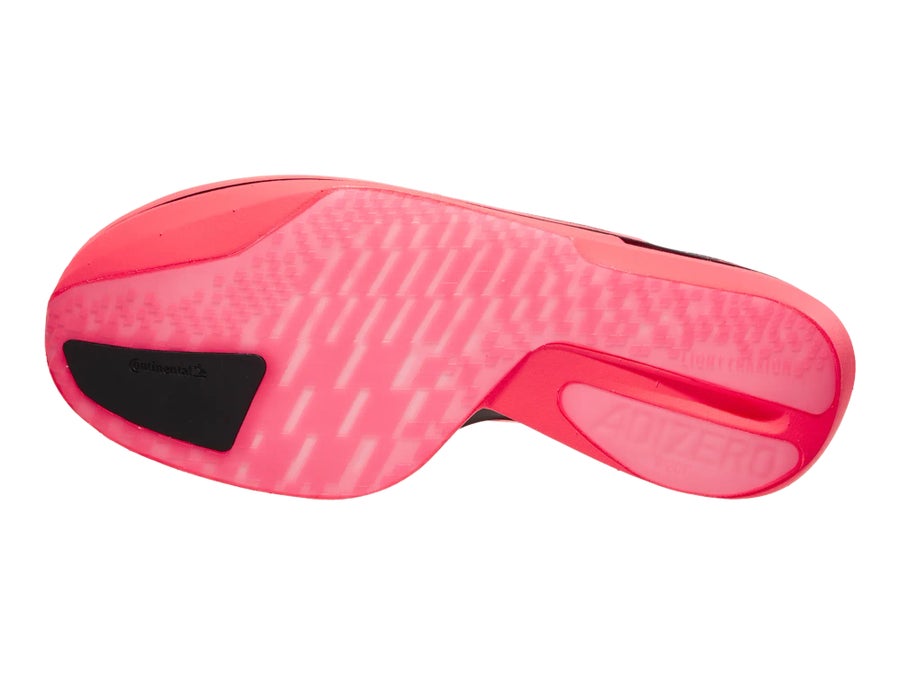

  • adidas-adizero-adios-pro-5 sole product photoimageRunning Warehouseaccessed 2026-10-04open ↗

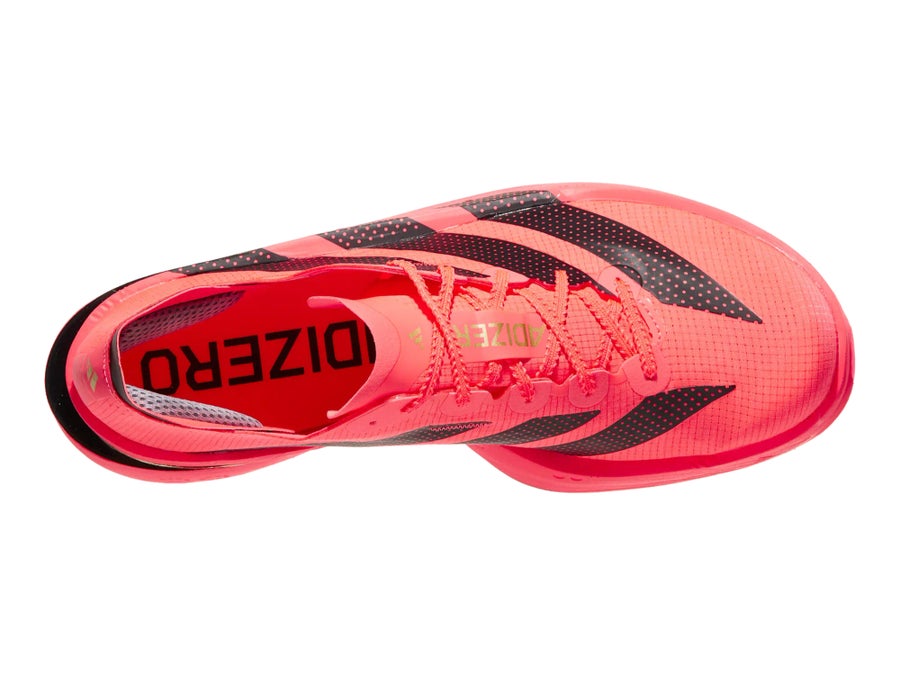

  • adidas-adizero-adios-pro-5 top product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (27)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 58 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop4 mmStatedMediumSpec listingDoctors of Running2026-10-04
Heel stack39 mmStatedMediumSpec listingDoctors of Running2026-10-04
Heel stack38 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack34 mmStatedMediumSpec listingRunning Warehouse2026-10-04
Forefoot stack35 mmStatedMediumSpec listingDoctors of Running2026-10-04
Weight173 g (size 9)StatedMediumSpec listingDoctors of Running2026-10-04
Weight170 gStatedMediumSpec listingRunning Warehouse2026-10-04
Rocker apex55.8 %est.MediumSide photoRunning Warehouse2026-10-04
Rocker apex56.2 %est.MediumSide photoRunning Warehouse2026-10-04
Rocker radius54 %est.MediumSide photoRunning Warehouse2026-10-04
Rocker radius54 %est.MediumSide photoRunning Warehouse2026-10-04
Rocker rise angle27 degest.MediumSide photoRunning Warehouse2026-10-04
Rocker rise angle27 degest.MediumSide photoRunning Warehouse2026-10-04
Rocker angle at toe55 degest.MediumSide photoRunning Warehouse2026-10-04
Rocker angle at toe55 degest.MediumSide photoRunning Warehouse2026-10-04
Toe tip over ground58 mmest.MediumSide photoRunning Warehouse2026-10-04
Toe tip over ground57 mmest.MediumSide photoRunning Warehouse2026-10-04
Visible rocker lift onset70 %est.MediumSide photoRunning Warehouse2026-10-04
Visible rocker lift onset70 %est.MediumSide photoRunning Warehouse2026-10-04
Toe spring (relative)22.9 %est.MediumSide photoRunning Warehouse2026-10-04
Toe spring (relative)23.1 %est.MediumSide photoRunning Warehouse2026-10-04
Heel bevel length7.9 %est.MediumSide photoRunning Warehouse2026-10-04
Heel bevel length7.5 %est.MediumSide photoRunning Warehouse2026-10-04
Heel bevel height23 mmest.MediumSide photoRunning Warehouse2026-10-04
Heel bevel height24 mmest.MediumSide photoRunning Warehouse2026-10-04
Toe box shape73 %est.LowTop photoRunning Warehouse2026-10-04
Toe box shape72 %est.LowTop photoRunning Warehouse2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=e6e2a49ff393e062f75439c6c0a75c79a05239239eb0a3d84dbb847234273331; 0.3
  • Running Warehouse: sha256=c5fa2001d787e6cf086d54cd5fc629a35f63031d92f35269cdaa2a984a8352a9; 0.3
  • Running Warehouse: sha256=d9f494db6b432b4010a6804f7556639297a16087100417e645d8994766426809; 0.3
  • Running Warehouse: sha256=0d47ddf6d8d0ee2fc666909e1f5b3dec7a867b4ab88e4f41ed591120e909a1bd; 0.3
  • Running Warehouse: sha256=e12d284a0dab7af3459208611222e49fd8bbf10aa9ed421537016929a89488af; 0.1
  • Running Warehouse: sha256=01a6ec119c26dbf6e2a58c0116823a22d7998278f93e2da7bce4af6527bf4bb0; 0.1
