ShoeGeometry

ASICS Gel-Kayano 33

StabilityRoadNo plate2026Men'sCurrent

Specifications

Heel-to-toe drop
Manufacturer stated
8mm
Mediumregex_specs_v2source
Heel stack
Externally measured
41mm
Lowregex_specs_v2Men's US 9source
Forefoot stack
Externally measured
33mm
Lowregex_specs_v2Men's US 9source
Weight
Manufacturer stated
298g
Mediumregex_specs_v2size 9source
Plate
No plate
Primary foam
FF Blast Max
List price
$170

Plate, foam and price from ASICS Gel-Kayano 33 Review (2026) - Doctors of Running.

Geometry

Catalogue average: heel 39 mm, forefoot 32 mm, rocker apex 65 %ASICS Gel-Kayano 33: heel 41 mm, forefoot 33 mm (drop 8 mm); rocker apex 65 % of length, radius 39 % of length.41 mm33 mmRocker apex at 65 % of length from the heelrocker apex 65 %toeheel
Forefoot: rocker apex later earlierRear: heel stack lower higher not measured
Dashed: average of the catalogue
Drawn from the measured values, to scale for a 290 mm shoe; the grey upper is a generic outline, not this shoe’s. ASICS Gel-Kayano 33: heel 41 mm, forefoot 33 mm (drop 8 mm); rocker apex 65 % of length, radius 39 % of length.

Percent values are relative to shoe length so they compare across images and sizes; millimetre values are lab measurements from the cited source. See how rocker geometry is defined.

Rocker apex
AI estimated
65%
Mediumvision_rocker · 0.3-bc1source
Rocker radius
AI estimated
39%
Mediumvision_rocker · 0.3-bc1source
Rocker rise angle
AI estimated
30deg
Mediumvision_rocker · 0.3-bc1source
Toe tip over ground
AI estimated
40mm

Average of two photos 1.4 mm apart.

Lowvision_rocker · 0.3-bc1source
Rocker angle at toe
AI estimated
55deg
Mediumvision_rocker · 0.3-bc1source
Visible rocker lift onset
AI estimated
76.6%
Mediumvision_rocker · 0.3-bc1source
Toe spring (relative)
AI estimated
19.1%
Lowvision_rocker · 0.3-bc1source
Midsole width (forefoot)
Externally measured
120.7mm
Mediumlab_table_widths · 1source
Midsole width (heel)
Externally measured
97.1mm
Mediumlab_table_widths · 1source
Interior forefoot width
Externally measured
95.9mm
Mediumlab_table_widths · 1source
Toebox width
Externally measured
72.4mm
Mediumlab_table_widths · 1source

Stiffness

Longitudinal stiffness
Derived
62/ 100
Mediumlab_bending_force_score · 1source
Midsole firmness
Derived
47/ 100
Mediumlab_midsole_firmness_score · 1source

How it compares

  • ASICS Gel-Kayano 33's heel-to-toe drop is 8 mm, higher than the catalogue median of 6 mm (55% of the 91 other current shoes are lower).
  • ASICS Gel-Kayano 33's heel stack is 41 mm, thicker than the catalogue median of 39 mm (68% of the 91 other current shoes are thinner).
  • ASICS Gel-Kayano 33's forefoot stack is 33 mm, thicker than the catalogue median of 32 mm (52% of the 91 other current shoes are thinner).
  • ASICS Gel-Kayano 33's weight is 295 g, heavier than the catalogue median of 268 g (76% of the 82 other current shoes are lighter).

Appears in:Wide platformEarlier rocker

Compare:ASICS Gel-Kayano 33 vs ASICS Gel-Kayano 31ASICS Gel-Kayano 33 vs Hoka Arahi 9ASICS Gel-Kayano 33 vs New Balance Fresh Foam X 860 v15Previous version: ASICS Gel-Kayano 31

What changed from the ASICS Gel-Kayano 31

Stack higher, stiffness stiffer, drop less. Compared with the previous version in this catalogue; differences within measurement noise are shown as about the same.

ASICS Gel-Kayano 33: heel 41 mm, forefoot 33 mm (drop 8 mm); rocker apex 65 % of length, radius 39 % of length.ASICS Gel-Kayano 33: rocker apex at 65 % of lengthASICS Gel-Kayano 31: heel 40 mm, forefoot 30 mm (drop 10 mm); rocker apex 67 % of length, radius 39 % of length.ASICS Gel-Kayano 31: rocker apex at 67 % of length
  • ASICS Gel-Kayano 3341/33 mm · apex 65 %
  • ASICS Gel-Kayano 3140/30 mm · apex 67 %
Midsoles drawn from measured values on a common length (290 mm), heels aligned, toe to the left; dots mark the rocker apex. Dotted lines use typical values where a shoe has no measurement. Exact values are in the table below.
MeasureASICS Gel-Kayano 31ASICS Gel-Kayano 33Change
Heel stack40 mm41 mmhigher (+1 mm)
Forefoot stack30 mm33 mmhigher (+3 mm)
Drop10 mm8 mmless (−2 mm)
Weight303 g295 glighter (−8 g)
Rocker apex66.6% of length65% of lengthabout the same
Toe tip over ground38.6 mm40.5 mmabout the same
Rocker rise angle30.1°29.8°about the same
Stiffness41/10062/100stiffer (+21)
Firmness57/10047/100softer (−10)
Forefoot base width122.1 mm120.7 mmabout the same
FoamFF Blast+ EcoFF Blast Maxchanged

Full side-by-side comparison →

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • ASICS Gel-Kayano 33 Review (2026) - Doctors of RunningreviewBlueprintaccessed 2026-10-03open ↗
  • ASICS Gel Kayano 33 Men's Shoes Midnight/Khaki Green | Running Warehouseretailerrunningwarehouse.comaccessed 2026-10-03open ↗

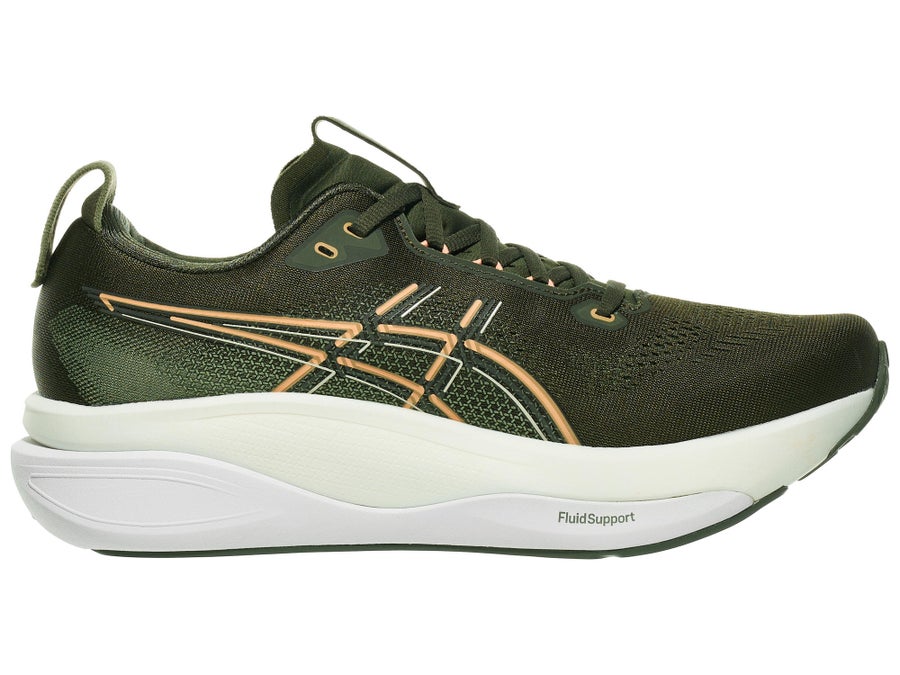

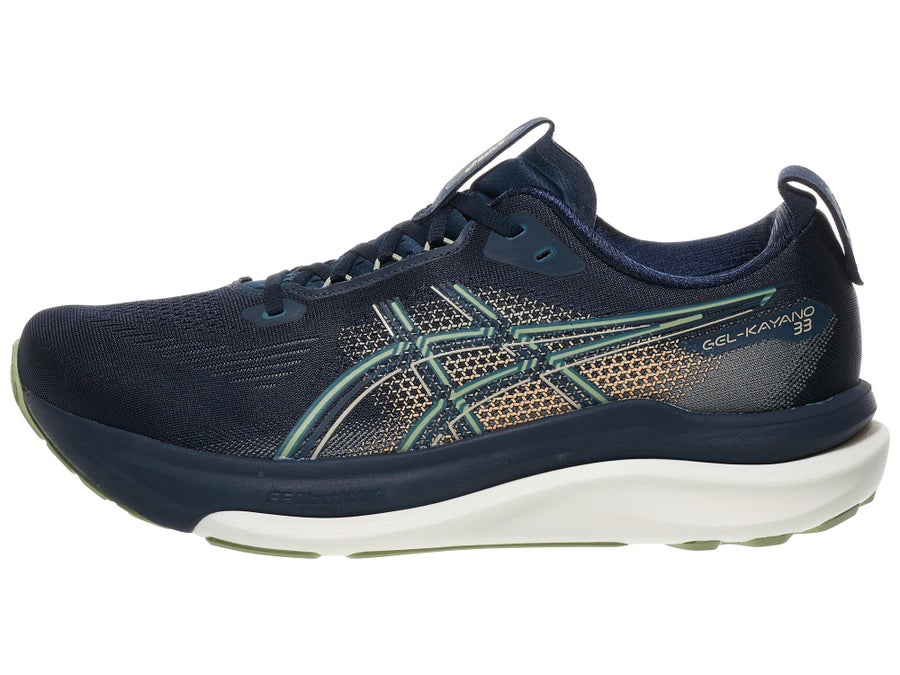

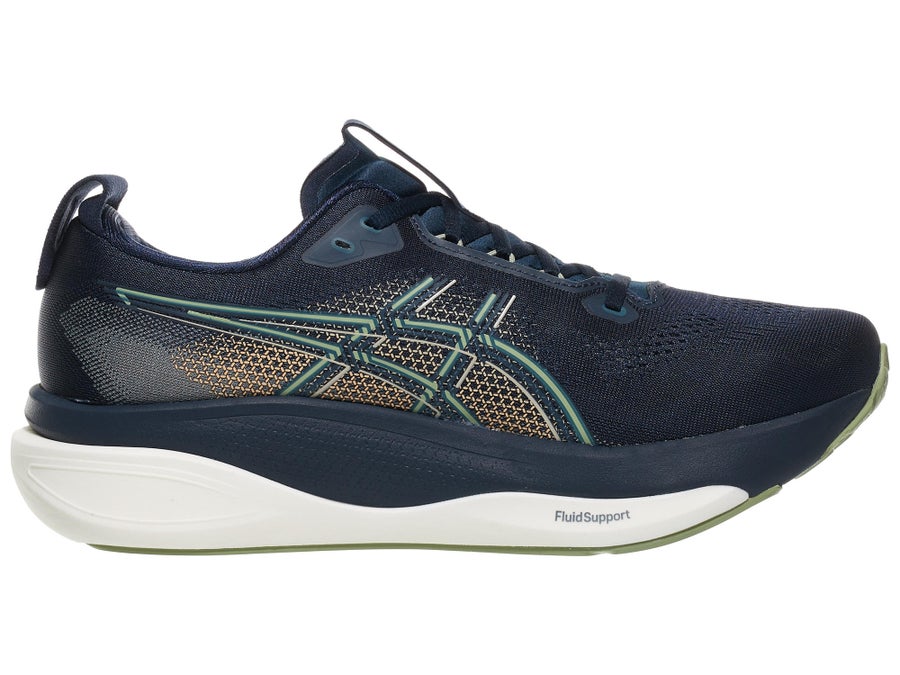

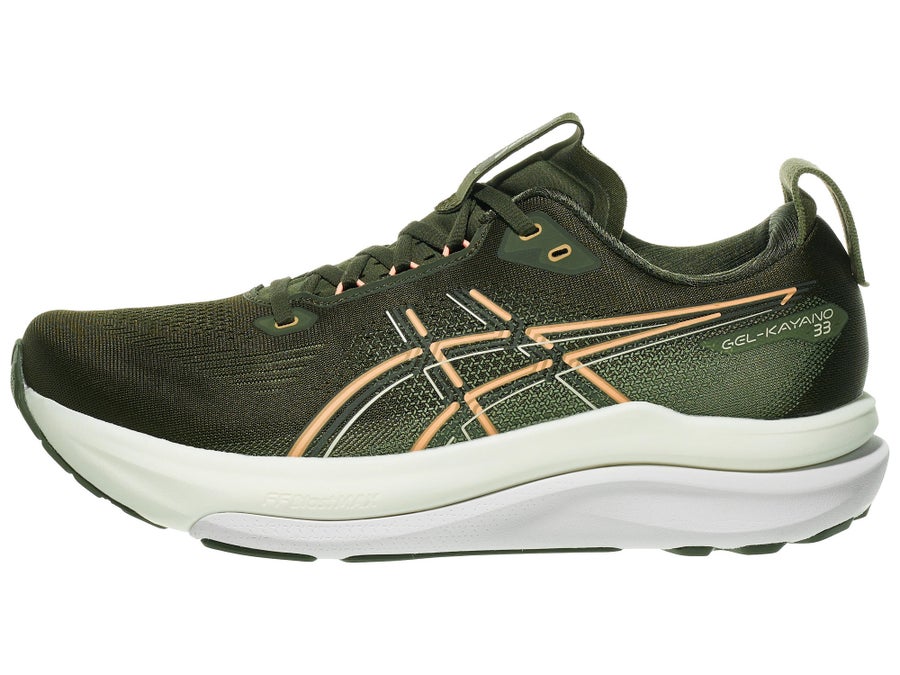

  • asics-gel-kayano-33 medial product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=167c503415f93a8888ec4817599d6e276d528140a58fef256218c8b2b82e0eaa; 0.3
  • asics-gel-kayano-33 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=b8d7f9d240b8ee8e5d605bbe7c78f09ca182a8b1edb740eab9800c63b7bdac80; 0.3
  • asics-gel-kayano-33 lateral product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=5bad42525ea5d346b2233069f4257841d1c4ae9174100e18107978ecb0b40b37; 0.3
  • asics-gel-kayano-33 medial product photoimageRunning Warehouseaccessed 2026-10-03open ↗sha256=463ae8f4f2b23941bd4f7c642c4fe19b646f24def218070735c6fa0bad492c6b; 0.3
  • Cut in half: ASICS Gel Kayano 33 Review (2026) | RunRepeatlabRunRepeat - Athletic shoe reviewsaccessed 2026-10-03open ↗

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 50 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop8 mmStatedMediumregex_specs_v2Blueprint2026-10-03
Heel stack41 mm (Men's US 9)MeasuredLowregex_specs_v2runningwarehouse.com2026-10-03
Heel stack39 mmStatedMediumregex_specs_v2Blueprint2026-10-03
Forefoot stack33 mm (Men's US 9)MeasuredLowregex_specs_v2runningwarehouse.com2026-10-03
Forefoot stack31 mmStatedMediumregex_specs_v2Blueprint2026-10-03
Weight295 gStatedMediumregex_specs_v2runningwarehouse.com2026-10-03
Weight298 g (size 9)StatedMediumregex_specs_v2Blueprint2026-10-03
Rocker apex65 %est.Mediumvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker apex66.3 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker radius39 %est.Mediumvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker radius41 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker rise angle30 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker rise angle30 degest.Mediumvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker angle at toe55 degest.Mediumvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe tip over ground41 mmest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe tip over ground40 mmest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Rocker angle at toe55 degest.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Visible rocker lift onset76.6 %est.Mediumvision_rocker 0.3-bc1Running Warehouse2026-10-03
Visible rocker lift onset75.6 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe spring (relative)19.1 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Toe spring (relative)19.4 %est.Lowvision_rocker 0.3-bc1Running Warehouse2026-10-03
Midsole width (forefoot)120.7 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Midsole width (heel)97.1 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Interior forefoot width95.9 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Toebox width72.4 mmMeasuredMediumlab_table_widths 1RunRepeat - Athletic shoe reviews2026-10-03
Longitudinal stiffness62 DerivedMediumlab_bending_force_score 1RunRepeat - Athletic shoe reviews2026-10-03
Midsole firmness47 DerivedMediumlab_midsole_firmness_score 1RunRepeat - Athletic shoe reviews2026-10-03

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported.

Shoes with similar geometry

Compare these →

Closest current models from other lines by stack, drop, rocker, toe height, stiffness, firmness, weight and width, whichever both shoes have.

Side profile illustration of the New Balance FuelCell SuperComp Trainer v3
New Balance
FuelCell SuperComp Trainer v3
Tempo · Carbon plate
Drop
6 mm
Heel
40 mm
Apex
65%

vs this shoe: 2 mm less drop

Side profile illustration of the Hoka Gaviota 6
Hoka
Gaviota 6
Stability · No plate
Drop
6 mm
Heel
39 mm
Apex
66%

vs this shoe: 2 mm less drop

Side profile illustration of the On Cloudsurfer 3
On
Cloudsurfer 3
Max cushion · No plate
Drop
8 mm
Heel
45 mm
Apex
62%

vs this shoe: 4 mm higher heel · earlier rocker

Side profile illustration of the Hoka Arahi 9
Hoka
Arahi 9
Stability · No plate
Drop
8 mm
Heel
41 mm
Apex
66%

vs this shoe: more flexible · 20 g lighter
