ShoeGeometry

On Cloudboom Strike 2

RacingRoadCarbon plate2026Men'sCurrent

At a glance

Heel-to-toe drop
5 mmStated
Stack, heel / forefoot
40 / 35 mmStated
Weight
198 gStatedsize 9
Plate
Carbon plate
Toe rocker
33 % of lengthest.photos 32–39 %
Heel bevel
14.6 % of lengthest.photos 13–16 %
Stiffness / firmness
not measured yet
Primary foam
Helion HF (PEBA-based)

How it compares

  • On Cloudboom Strike 2's heel-to-toe drop is 5 mm, lower than the catalogue median of 6 mm (14% of the 179 other current shoes are lower).
  • On Cloudboom Strike 2's heel stack is 40 mm, thicker than the catalogue median of 38 mm (62% of the 176 other current shoes are thinner).
  • On Cloudboom Strike 2's forefoot stack is 35 mm, thicker than the catalogue median of 31.5 mm (76% of the 171 other current shoes are thinner).
  • On Cloudboom Strike 2's weight is 198 g, lighter than the catalogue median of 269 g (8% of the 167 other current shoes are lighter).
  • 4 shoes with similar geometry from other lines.

Differences smaller than the precision of the sources (about 1 mm of stack, 8 g, or the spread between photos for photo estimates) are reported as about the same.

Specifications

Heel-to-toe drop
Manufacturer stated
5mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Heel stack
Manufacturer stated
40mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Forefoot stack
Manufacturer stated
35mm
MediumSpec listingbrand figure, reported by Doctors of Runningsource
Weight
Manufacturer stated
198g
MediumSpec listingbrand figure, reported by Doctors of Runningsize 9source
Plate
Carbon plate
Primary foam
Helion HF (PEBA-based)
List price
$250

Geometry

Catalogue average: heel 38 mm, forefoot 32 mm, toe rocker 35 %On Cloudboom Strike 2: heel 40 mm, forefoot 35 mm (drop 5 mm); toe rocker 33 % of length, radius 38 % of length; heel bevel 15 % of length, 27 mm high at the back, reaching in front of the heel bone (the sole still curves up under it: a heel rocker).40 mm35 mmUnder the centre of the heel bone: 12 % of length from the heel, where heel stack is measuredheel boneHeel contact: the sole is within 4.5 mm of the ground from 15 % of length (foam compresses more under load), reaching in front of the heel bone (the sole still curves up under it: a heel rocker)heel bevel 15 %Toe rocker: the front 33 % of the length curves up (the curve leaves the ground 67 % of length from the heel)toe rocker 33 %toeheel
Front: toe rocker shorter longerRear: heel stack lower higher not measured
Dashed: average of the catalogue
Illustrative profile, not a photograph or scan: drawn to scale for a 300 mm shoe from published stack heights and photo estimates of the unloaded shoe (under body weight the foam compresses and the curves flatten). The grey upper is a generic outline, not this shoe’s. On Cloudboom Strike 2: heel 40 mm, forefoot 35 mm (drop 5 mm); toe rocker 33 % of length, radius 38 % of length; heel bevel 15 % of length, 27 mm high at the back, reaching in front of the heel bone (the sole still curves up under it: a heel rocker). Heel bone: 12 % of length from the heel, where heel stack is measured. Heel bevel and toe rocker are marked where each curve meets the ground; for the heel that is where the sole comes within 4.5 mm of the ground, which foam compression closes under body weight.

Percent values are relative to shoe length so they compare across images and sizes; widths in millimetres are lab measurements from the cited source, while toe tip and heel heights in millimetres are photo estimates converted for a men’s US 9 (assumed 300 mm long), so approximate. See how rocker geometry is defined.

Toe rocker
AI estimated
33%

4 photos range 32–39 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker radius
AI estimated
38%

4 photos range 36–45 %; shown is one of the two that agree most closely.

LowSide photosource
Rocker rise angle
AI estimated
30deg

4 photos range 30–33 deg; shown is one of the two that agree most closely.

LowSide photosource
Toe tip over ground
AI estimated
41mm*

4 photos range 41–51 mm; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

LowSide photosource
Rocker angle at toe
AI estimated
60deg

4 photos range 60–66 deg; shown is one of the two that agree most closely.

LowSide photosource
Visible rocker lift onset
AI estimated
76.8%

4 photos range 72.7–77.6 %; shown is one of the two that agree most closely.

LowSide photosource
Toe spring (relative)
AI estimated
20.2%

4 photos range 20.2–22.3 %; shown is one of the two that agree most closely.

LowSide photosource
Heel bevel length
AI estimated
14.6%*

4 photos range 12.8–16.1 %; shown is the average of the two that agree most closely (* the photos disagree by more than usual).

LowSide photosource
Heel bevel height
AI estimated
27mm

4 photos range 27–30 mm; shown is the average of the two that agree most closely.

LowSide photosource
Toe box shape
AI estimated
75%

2 photos range 75–76 %; shown is the average of the two that agree most closely.

LowTop photosource

How it compares

Appears in:Carbon plateLightweightHigh stack

Compare:On Cloudboom Strike 2 vs ASICS Metaspeed Edge ParisOn Cloudboom Strike 2 vs ASICS Metaspeed Edge TokyoOn Cloudboom Strike 2 vs ASICS Metaspeed Sky Paris

Wrong value? Missing data? Tell me
Stored only to improve the site; see privacy.

Sources

  • On Cloudboom Strike 2 Review (2026) - Doctors of RunningreviewDoctors of Runningaccessed 2026-10-04open ↗
  • The On Cloudboom Strike 2 finally, finally gets it right (For real this time) | Believe in the RunreviewBelieve in the Runaccessed 2026-10-04open ↗
  • On Cloudboom Strike 2 Unisex Shoes Aconite/Verdite | Running WarehouseretailerRunning Warehouseaccessed 2026-10-04open ↗

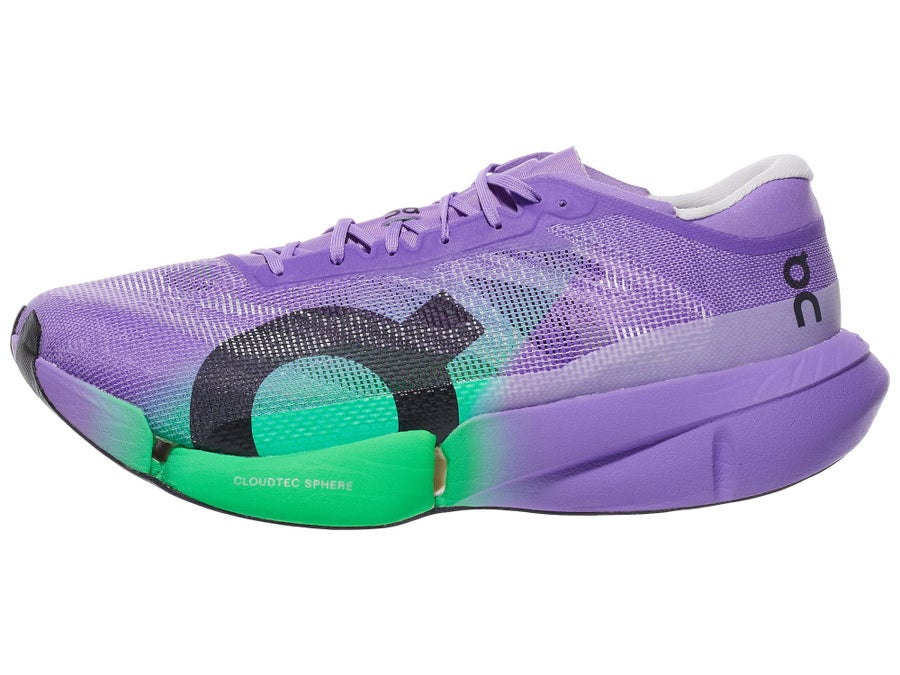

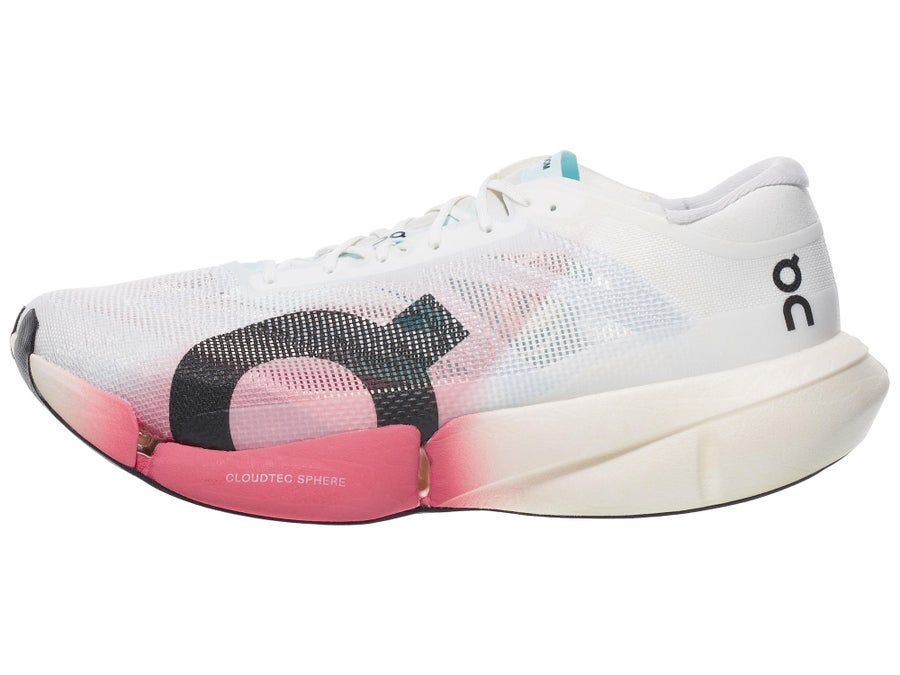

  • on-cloudboom-strike-2 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • on-cloudboom-strike-2 medial product photoimageRunning Warehouseaccessed 2026-10-04open ↗

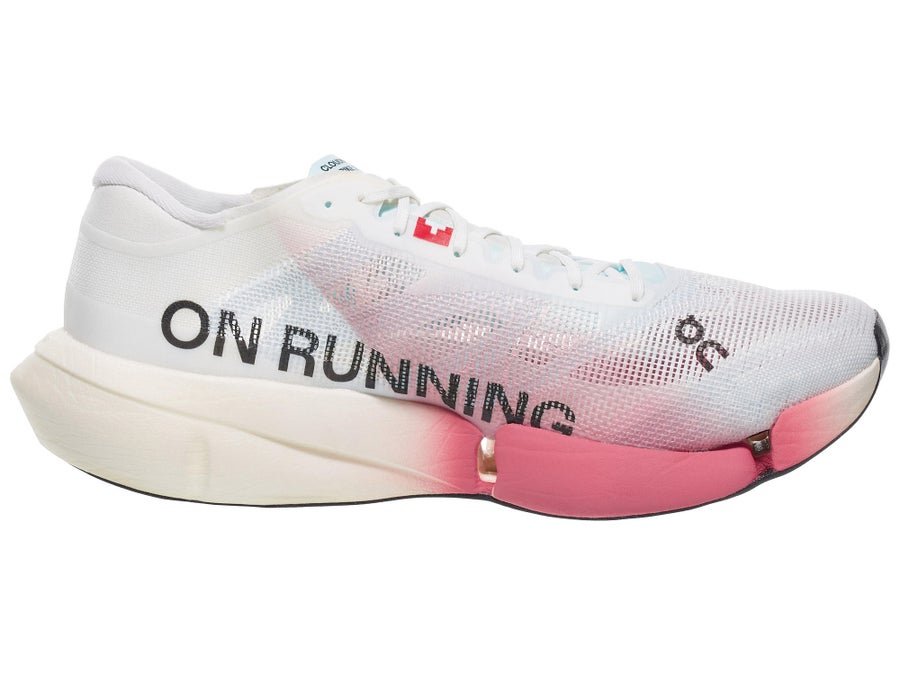

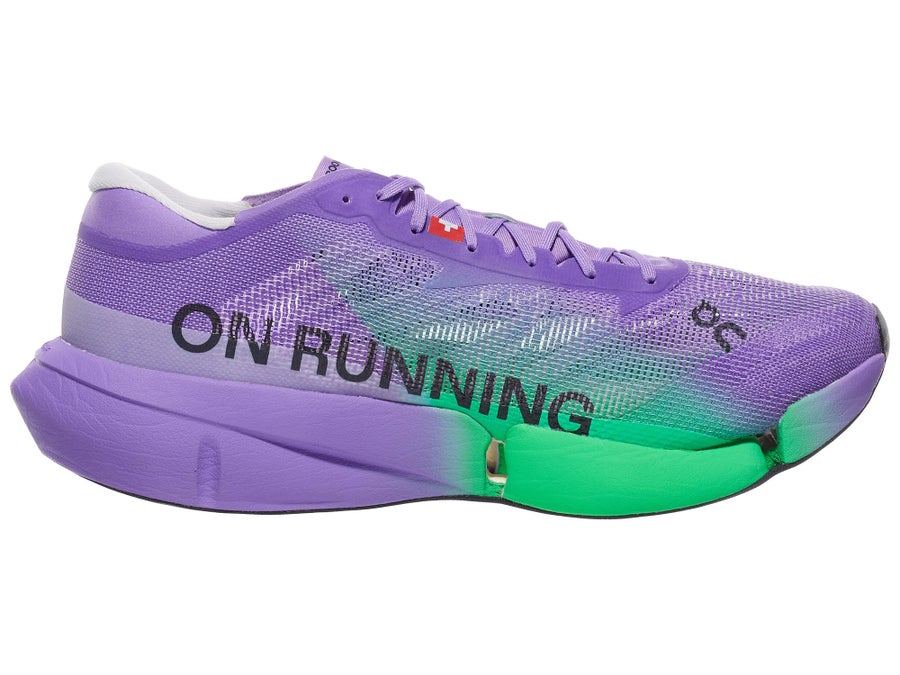

  • on-cloudboom-strike-2 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗
  • on-cloudboom-strike-2 lateral product photoimageRunning Warehouseaccessed 2026-10-04open ↗

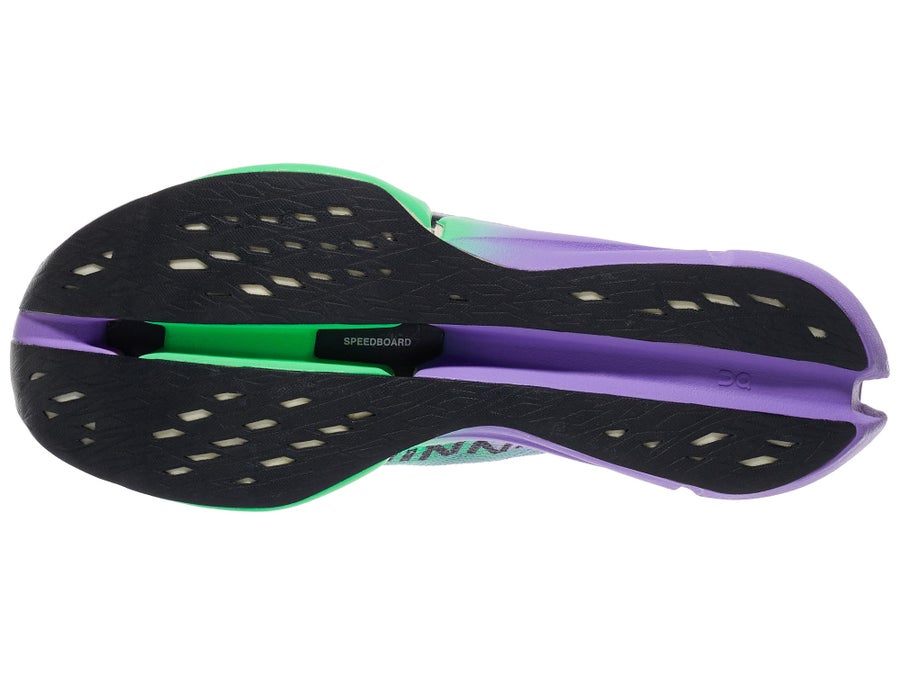

  • on-cloudboom-strike-2 sole product photoimageRunning Warehouseaccessed 2026-10-04open ↗

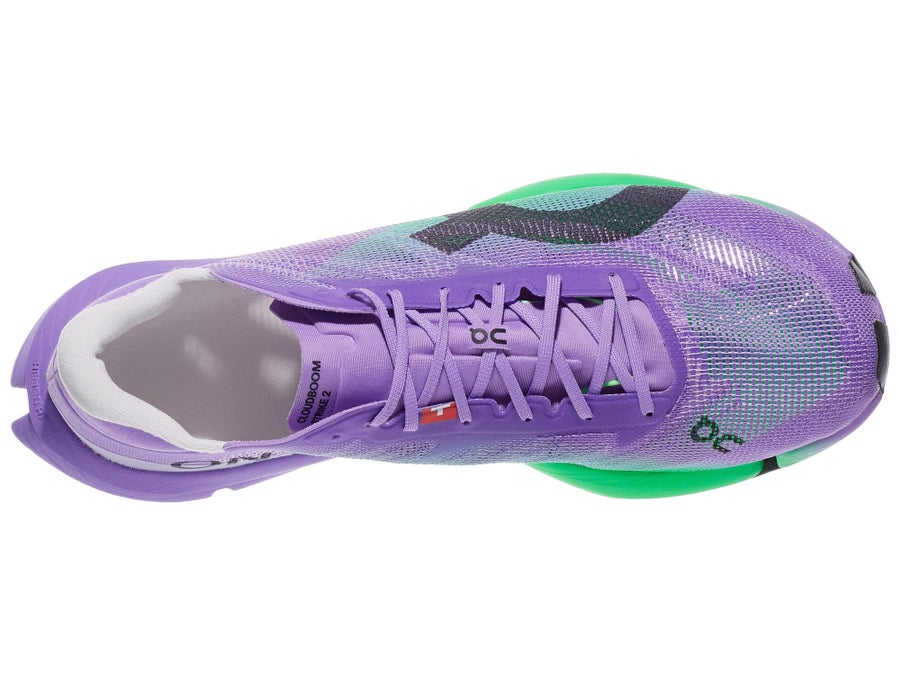

  • on-cloudboom-strike-2 top product photoimageRunning Warehouseaccessed 2026-10-04open ↗
Technical detail: every recorded value, method and version (28)

All approved observations

Every recorded value, including superseded ones. The displayed value per metric is chosen by precedence (measured › stated › derived › AI estimated), then confidence, then recency. 62 further observations awaiting review.

MetricValueClassConfidenceMethodSourceRecorded
Heel-to-toe drop5 mmStatedMediumSpec listingDoctors of Running2026-10-04
Heel-to-toe drop5 mmStatedMediumSpec listingBelieve in the Run2026-10-04
Heel stack40 mmStatedMediumSpec listingDoctors of Running2026-10-04
Heel stack40 mmStatedMediumSpec listingBelieve in the Run2026-10-04
Forefoot stack35 mmStatedMediumSpec listingDoctors of Running2026-10-04
Forefoot stack35 mmStatedMediumSpec listingBelieve in the Run2026-10-04
Weight198 g (size 9)StatedMediumSpec listingDoctors of Running2026-10-04
Weight198 gStatedMediumSpec listingRunning Warehouse2026-10-04
Rocker apex67.1 %est.LowSide photoRunning Warehouse2026-10-04
Rocker apex68.1 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius38 %est.LowSide photoRunning Warehouse2026-10-04
Rocker radius36 %est.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle30 degest.LowSide photoRunning Warehouse2026-10-04
Rocker rise angle30 degest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground42 mmest.LowSide photoRunning Warehouse2026-10-04
Toe tip over ground41 mmest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe60 degest.LowSide photoRunning Warehouse2026-10-04
Rocker angle at toe60 degest.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset76.8 %est.LowSide photoRunning Warehouse2026-10-04
Visible rocker lift onset77.6 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)20.2 %est.LowSide photoRunning Warehouse2026-10-04
Toe spring (relative)20.7 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length14.8 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel length14.3 %est.LowSide photoRunning Warehouse2026-10-04
Heel bevel height27 mmest.LowSide photoRunning Warehouse2026-10-04
Heel bevel height27 mmest.LowSide photoRunning Warehouse2026-10-04
Toe box shape76 %est.LowTop photoRunning Warehouse2026-10-04
Toe box shape75 %est.LowTop photoRunning Warehouse2026-10-04

Classes: Manufacturer stated · Externally measured · AI estimated · Derived · User reported. Hover a method for its identifier and algorithm version.

Source notes

  • Running Warehouse: sha256=d50886bb69fe71dde1c78372b7dd9abec3733d410da697d64e7e752456a699b0; 0.3
  • Running Warehouse: sha256=fd386a364e364f97c52f5c0243828ff06b089d7592d976589475fa0eae1ebfdb; 0.3
  • Running Warehouse: sha256=cbd0a6f30cf98a92e6fa26ab0ddf55a396d4a9510fd59e6c0daa8a949f676112; 0.3
  • Running Warehouse: sha256=a9d68402d8f700297ccce2bb733b3bb1b2976b94d07996bb6a5a5cfa1396b467; 0.3
  • Running Warehouse: sha256=aae0f62781c78d3e9efa3011b60a63d0d21cce108f8c65c426d24d38deaa0367; 0.1
  • Running Warehouse: sha256=95353031b4592f0e07bbf061040726bac336c6ab5bfd4acd26b4d5bb4929cd99; 0.1

Shoes with similar geometry

Compare these →

Closest current models from other lines by stack, drop, rocker, toe height, stiffness, firmness, weight and width, whichever both shoes have.

Side profile illustration of the Mizuno Hyperwarp Pro
Mizuno
Hyperwarp Pro
Racing · Carbon composite
Drop
5.5 mm
Heel
39 mm
Toe rocker
33%

Very close on every shared measure

Side profile illustration of the ASICS Metaspeed Sky Paris
ASICS
Metaspeed Sky Paris
Racing · Carbon plate
Drop
5 mm
Heel
39.5 mm
Toe rocker
35%

Very close on every shared measure

Side profile illustration of the Salomon S/Lab Phantasm 3
Salomon
S/Lab Phantasm 3
Racing · Carbon plate
Drop
6.9 mm
Heel
42 mm
Toe rocker
33%

Very close on every shared measure

Side profile illustration of the Nike Vaporfly 4
Nike
Vaporfly 4
Racing · Carbon plate
Drop
6 mm
Heel
36 mm
Toe rocker
35%

vs this shoe: 4 mm lower heel
